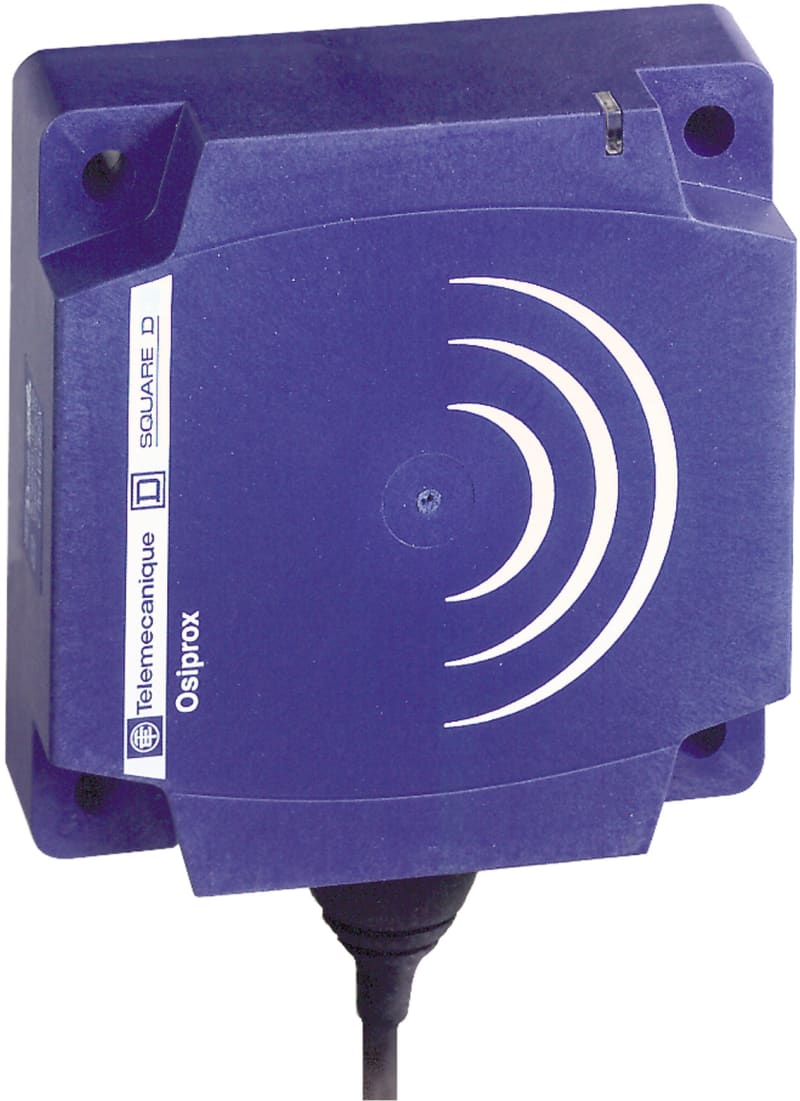

Telemecanique OsiSense XS7D1A1PAL2 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS7D1A1PAL2 is an OsiSense XS inductive proximity sensor in a 80 × 80 mm PBT thermoplastic rectangular block housing, with a nominal sensing distance (Sn) of 40 mm. It provides a PNP (3-wire DC) output, switching NO (normally open), via pre-wired cable. Operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS7D1A1PAL2
- EAN / GTIN
- 3666916011232
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- 80 × 80 mm rectangular block housing (PBT thermoplastic)
- Nominal sensing distance Sn
- 40 mm
- Output
- PNP (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- PBT thermoplastic
- Temperature Range
- -25 °C to +70 °C
- HS Code
- 8536.50
Cross References
- EAN 3666916011232
Product Documentation
