Telemecanique XUSL4E30H076L Safety Light Curtain Type 4, Hand Detection (30 mm), 760 mm Height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E30H076L Type 4 safety light curtain, hand detection with 30 mm resolution, protected height 760 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E30H076L
- EAN / GTIN
- 3666916028056
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 813 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 6.5 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 20 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 760 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028056
- SAP 1000652054
- Code 8210575
Product Documentation
More from Telemecanique
Telemecanique

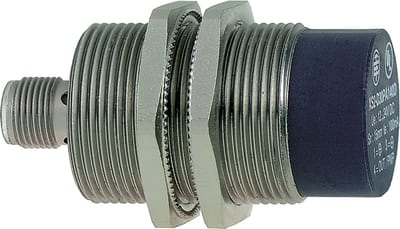

Telemecanique OsiSense XS2M30KP340D Inductive Proximity Sensor — M30 barrel, Sn 4 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-Pin)
Telemecanique

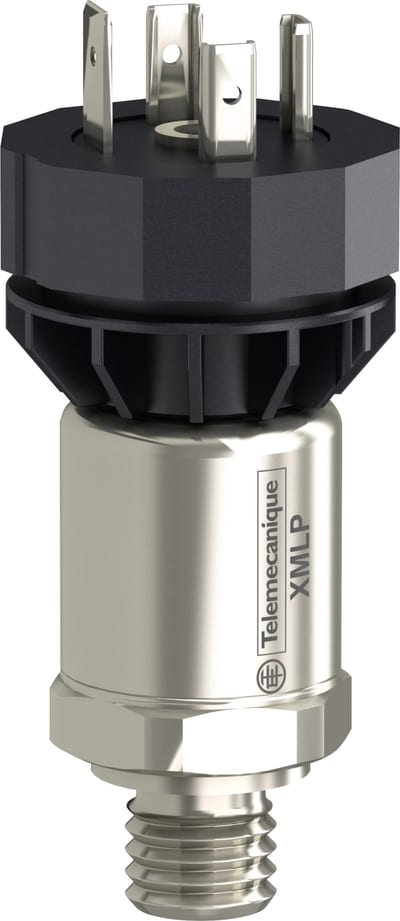

Telemecanique XMLP400BC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique

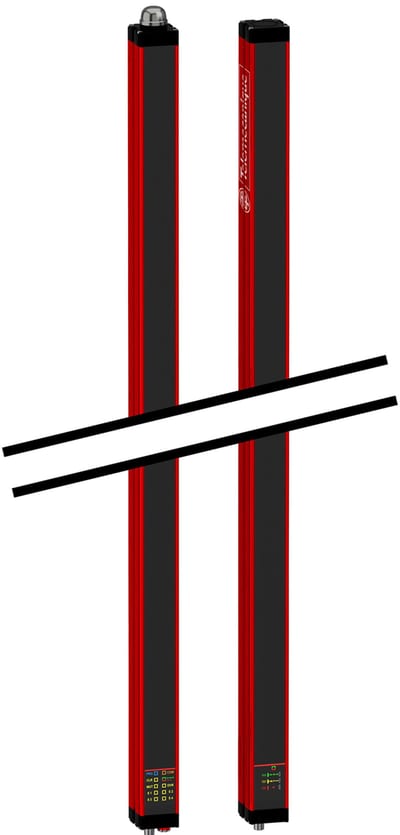

Telemecanique XUSL4MA30H091N Type 4 Safety Light Grille with Integrated Muting, 910 mm protected height
Telemecanique
Telemecanique XUSL2E2BB051N Safety Light Curtain Type 2, 2-beam body detection
Telemecanique
Telemecanique ZCKM9 Limit Switch Body for ZCK Limit Switches
Telemecanique

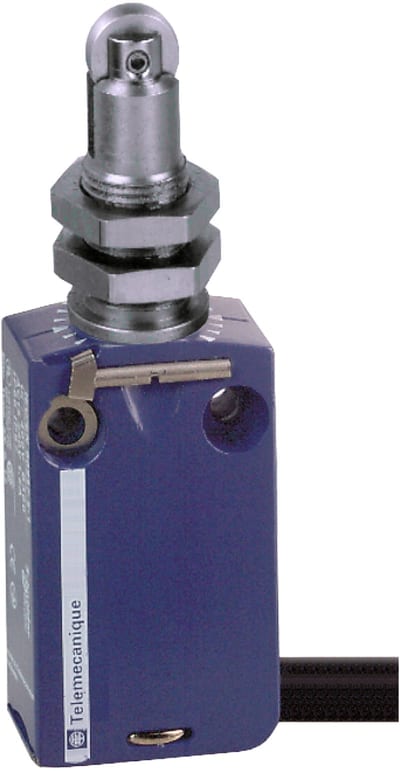

Telemecanique XCMD25F2L1 Limit Switch, Metal Roller Plunger
Telemecanique

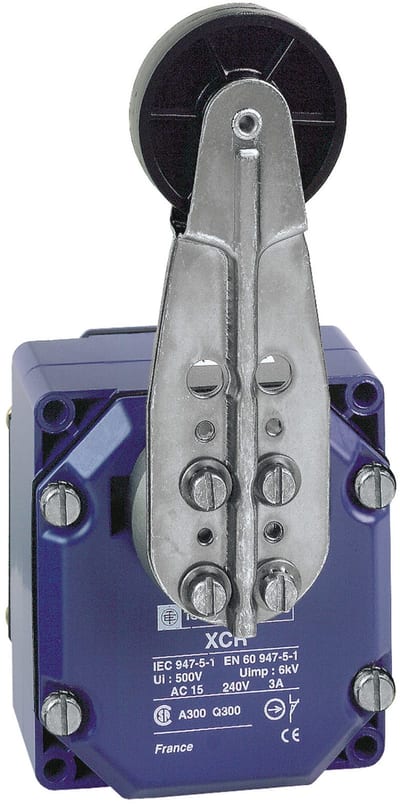

Telemecanique XCRA heavy-duty limit switch, metal body, adjustable roller lever with 50 mm roller, 2 NC + 2 NO, snap action with positive opening, Pg cable entry, IP54 XCRA15
Telemecanique

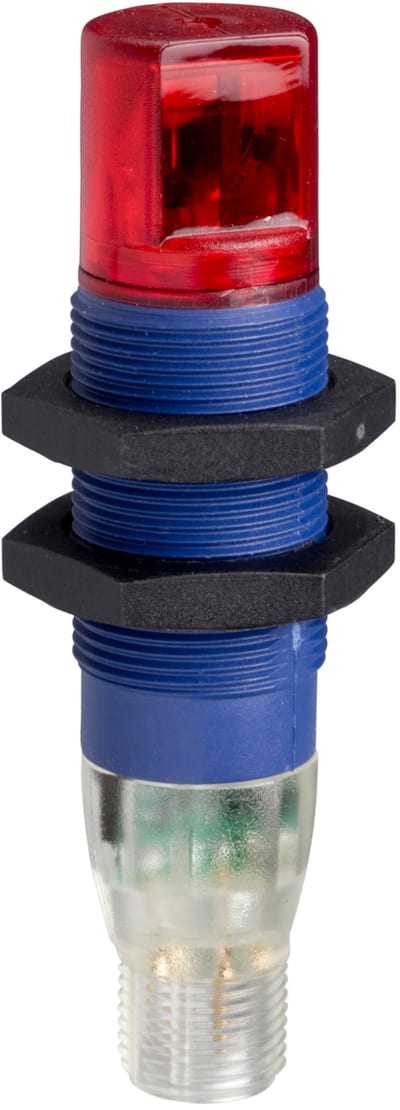

Telemecanique XUB2BKSWM12T Photoelectric Emitter M18, Metal
