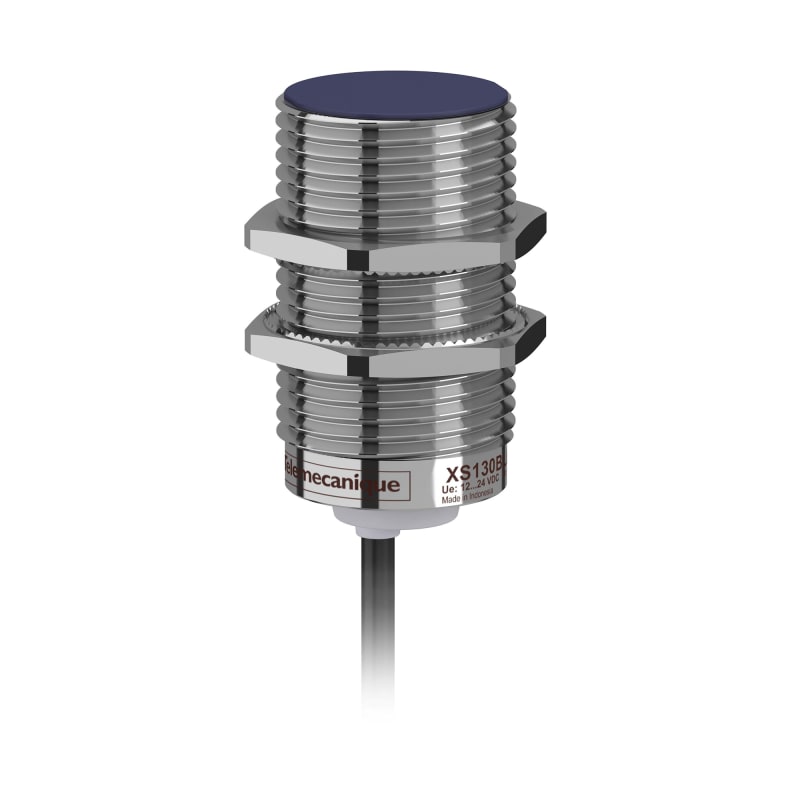

Telemecanique OsiSense XS130BHPBL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NC, pre-wired cable (2 m)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS130BHPBL2 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 15 mm and a flush-mountable (shielded) sensing face. It provides a PNP (3-wire DC) output, switching NC (normally closed), via pre-wired cable (2 m). IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS130BHPBL2
- EAN / GTIN
- 3666916017364
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- flush-mountable (shielded)
- Nominal sensing distance Sn
- 15 mm
- Output
- PNP (3-wire DC)
- Switching function
- NC (normally closed)
- Connection
- pre-wired cable (2 m)
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 36 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916017364
Product Documentation
