Telemecanique XUSL4E4BB091LWC Safety Light Grid Type 4, Body Detection, 4 Beams, 910 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E4BB091LWC Type 4 safety light grid for body detection, 4 beams, protected height 910 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E4BB091LWC
- EAN / GTIN
- 3666916027646
- Sales unit
- pcs
- Protective field height
- 910 mm
- Number of beams
- 4
- Type (EN IEC 61496)
- Type 4
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 75 mm
- Height of sensor
- 1077 mm
- Length of sensor
- 76 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 3 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 17 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 910 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027646
- SAP 1000652093
- Code 8458465
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS212B4PAL5 Inductive Proximity Sensor — Ø5 mm barrel, Sn 8 mm, PNP, NO, pre-wired cable
Telemecanique

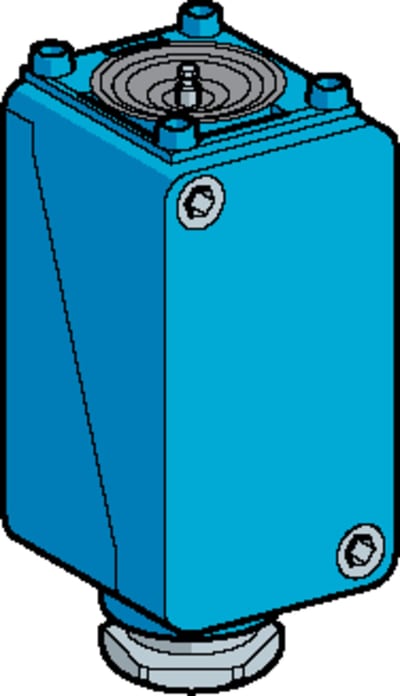

4316570 (ZC2JD28)
Telemecanique

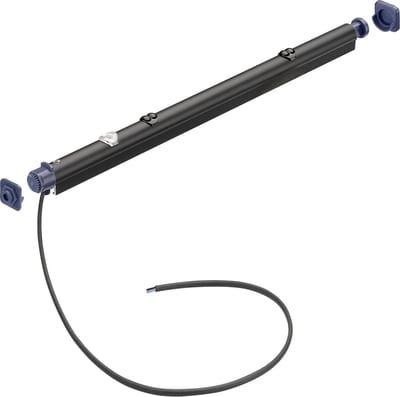

Telemecanique XUY420NA4H03M12 Photoelectric Sensing Bar 420 mm, IP50, M12 Connector
