Telemecanique XXR12A8KAM8 Ultrasonic Sensor (Through-Beam Receiver) M12, PNP/NPN selectable, NO, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XXR12A8KAM8 ultrasonic sensor, through-beam receiver, M12 body, PNP/NPN selectable NO output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXR12A8KAM8
- EAN / GTIN
- 3666916080269
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 125 Hz
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 200 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 50 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 12 mm
- Diameter sensor
- 12 mm
- Height of sensor
- 12 mm
- Length of sensor
- 50 mm
- Measuring range length
- 0–200 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916080269
- SAP 1000342349
- Code 81106759
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUYFALNEP40015 Laser Fork Sensor 42 × 15 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XS4P12AB120 Inductive Proximity Sensor
Telemecanique
Telemecanique XUSL4E14F091N Safety Light Curtain Type 4, Finger Detection (14 mm), 910 mm Height
Telemecanique
Telemecanique OsiSense XS2M18KP340D Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-Pin)
Telemecanique

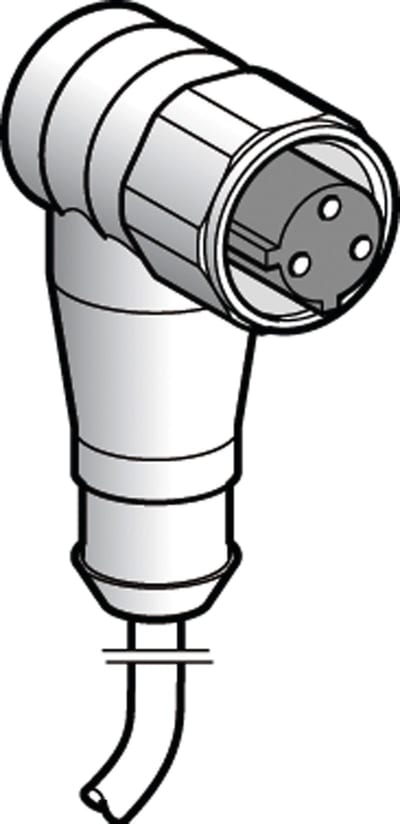

Telemecanique XZCP1440L2 Sensor Cable, M12 female angled, 3-pin, 2 m
