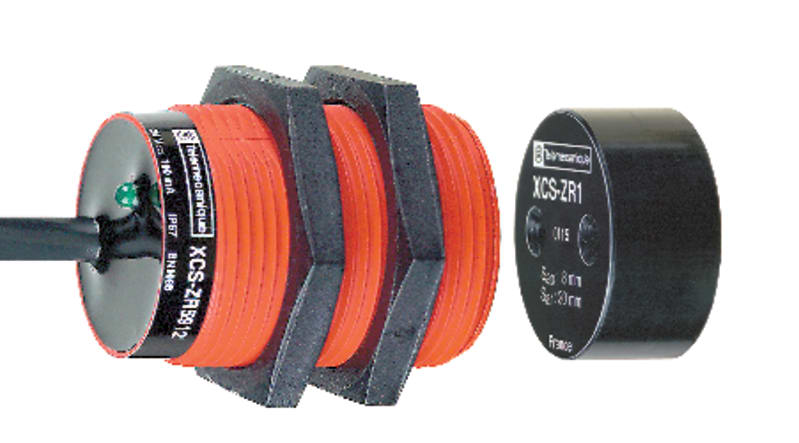

Telemecanique XCSDMR59010 Coded Magnetic Safety Switch, Cylindrical M30, NO+NC, 10 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique Preventa XCSDMR59010 coded magnetic safety switch, cylindrical M30 body, NO+NC contacts, 10 m cable; for position monitoring of guards and doors.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMR59010
- EAN / GTIN
- 3666916059524
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of protected contact energized outputs
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Cable radial
- Type of switching output
- Relay contact
- Length of sensor
- 38.5 mm
- Diameter sensor
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 20 mm
- Protected switch distance ON
- 8 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Min. output current
- 100 mA
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- No
- Switching distance
- 20 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP66
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916059524
- SAP 1000342331
- Code 8377403
