Telemecanique XCSPL783 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSPL783 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSPL783
- EAN / GTIN
- 3666916046029
- HS code
- 8536.90
- Sales unit
- pcs
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Forced opening
- No
- Type of control element
- Rotary lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 30 mm
- Height of sensor
- 161 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916046029
- SAP 1000061953
- Code 82037092
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS912R1PAM12 Inductive Proximity Sensor — M12 stainless barrel, Sn 6 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XUSZWPEFC Mounting Bracket for Light Curtain Columns
Telemecanique
Telemecanique XZCRV1511041C5 Sensor Cable, M12 to M12, PVC, 5 m
Telemecanique
Telemecanique XUB2AKSNM12T Photoelectric Through-Beam Emitter, Plastic, M12 connector
Telemecanique
Telemecanique XUB9BNBNM12 Photoelectric Sensor, Polarised Reflex, Metal, NPN, NC, M12 connector
Telemecanique
Telemecanique XUBLBPCNL2 Laser Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique

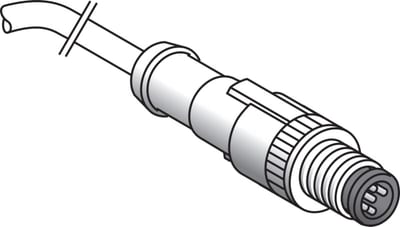

Telemecanique XZCP1564L5 Sensor Cable, M12 male straight, 5-pin, 5 m
Telemecanique

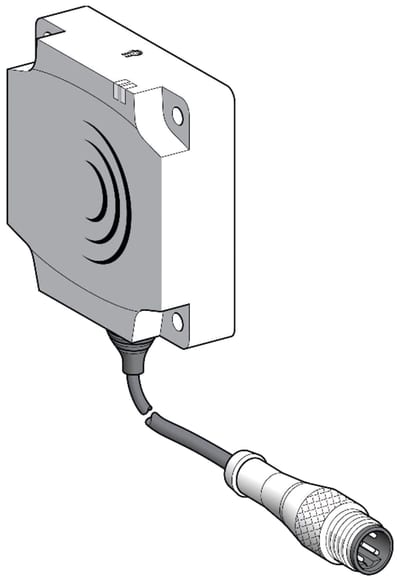

Telemecanique OsiSense XS8D1A1MBU20 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NC, pre-wired cable
