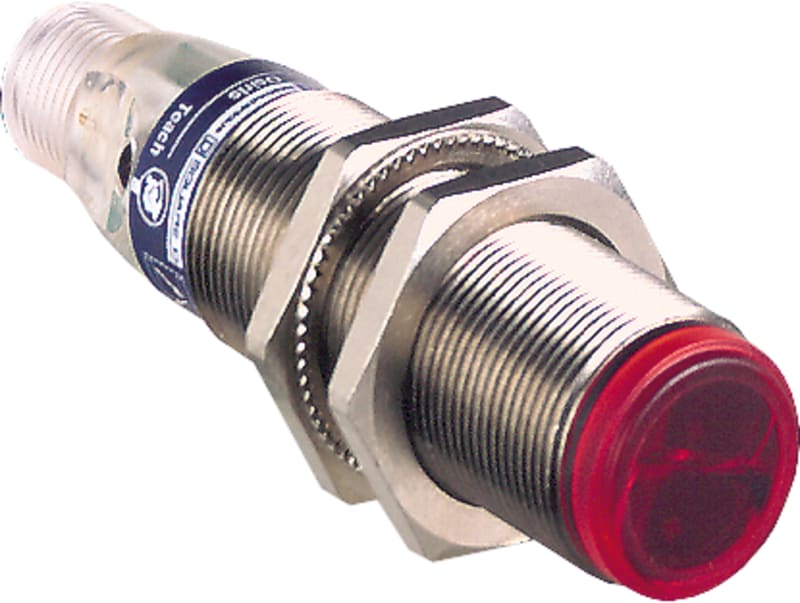

Telemecanique XUB9BNBNM12 Photoelectric Sensor, Polarised Reflex, Metal, NPN, NC, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB9BNBNM12 photoelectric sensor, polarised reflex, Ø18 mm (M18), metal housing, NPN NC output, rated distance 2 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB9BNBNM12
- EAN / GTIN
- 3666916035771
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- NPN
- Contact configuration
- NC
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 3000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 62 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035771
- SAP 1000009254
- Code 872521
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUBLBPCNL2 Laser Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique
Telemecanique XZCP1564L5 Sensor Cable, M12 male straight, 5-pin, 5 m
Telemecanique
Telemecanique OsiSense XS8D1A1MBU20 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS130B3PCL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XUSL4E3BB081LWC Safety Light Grid Type 4, Body Detection, 3 Beams, 810 mm
Telemecanique
Telemecanique OsiSense XS618B1DBL2 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire DC, NC, pre-wired cable (2 m)
Telemecanique

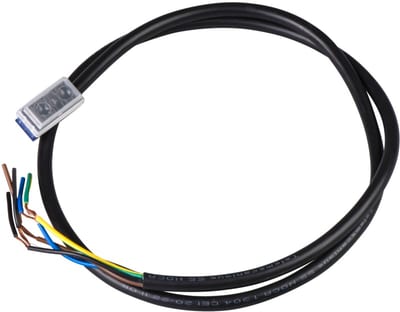

Telemecanique ZCMC21L10 Contact Body for XCM Limit Switches, 1 NO + 1 NC, snap action, 10 m cable
