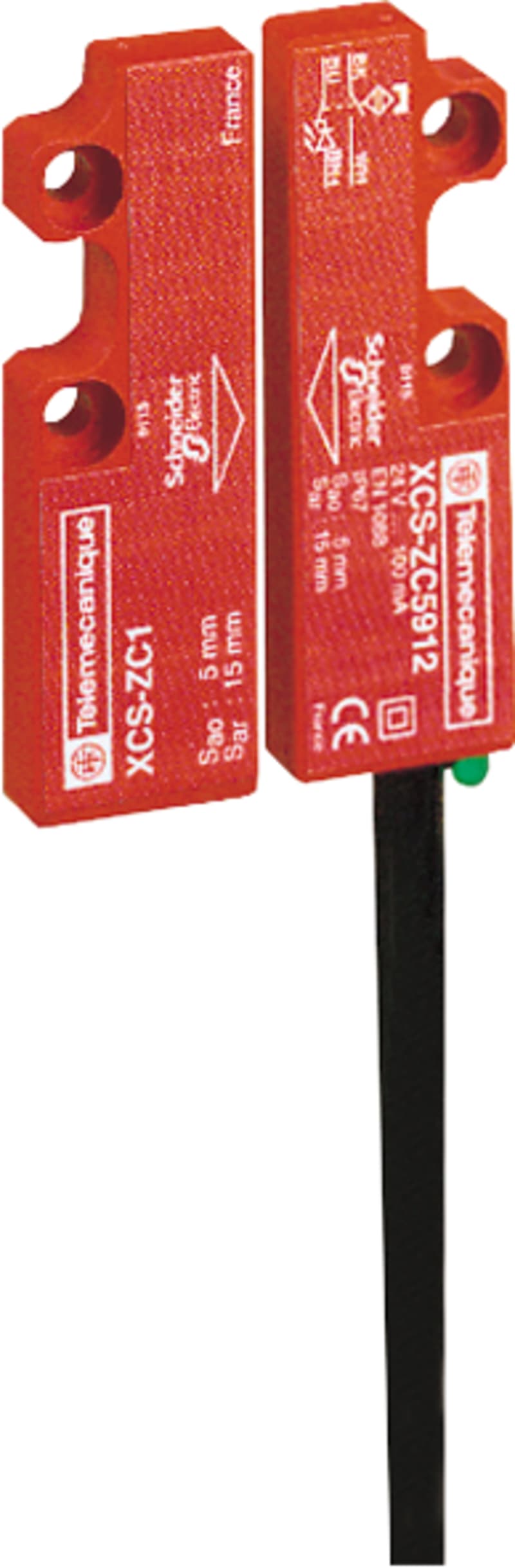

Telemecanique XCSDMC59030EX Coded Magnetic Safety Switch, 1 NC + 1 NO, 30 m cable, ATEX
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSDMC59030EX coded magnetic safety interlock switch for guard-door monitoring, 1 NC + 1 NO contacts, 30 m cable, ATEX certified for explosive atmospheres.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMC59030EX
- EAN / GTIN
- 3666916059357
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Contact configuration
- NC + NO
- Type of actuation
- Magnet
- Type of electric connection
- Cable radial
- Type of switching output
- Relay contact
- Width sensor
- 16 mm
- Height of sensor
- 51 mm
- Length of sensor
- 7 mm
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Ambient temperature
- -25–85 °C
- Mechanical mounting condition for sensor
- Not flat
- Min. output current
- 100 mA
- Rated supply voltage DC
- 24 V
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 15 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916059357
- SAP 1000342303
- Code 8998982
Product Documentation
