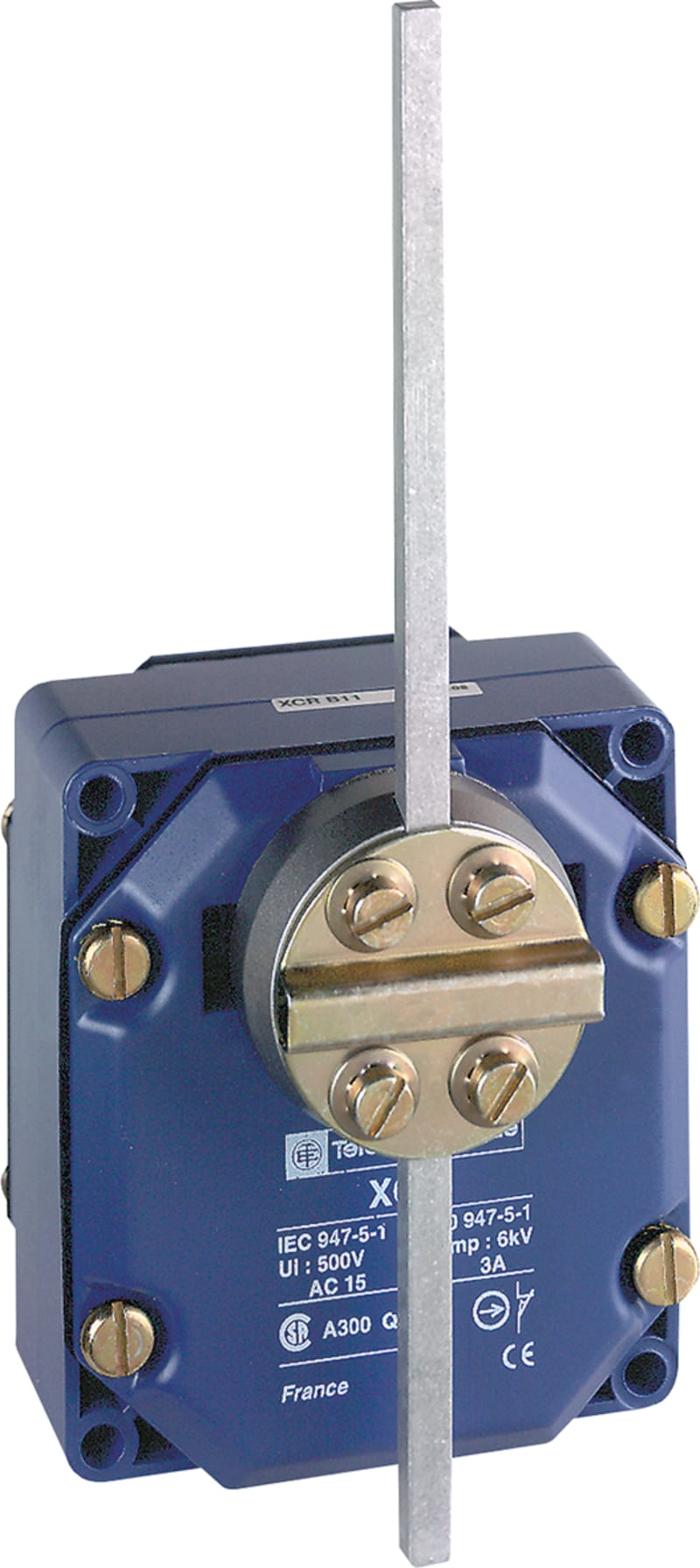

Telemecanique XCRA51 Limit Switch
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique XCRA51 Limit Switch is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Switching function: Slow-action switch and quick-break switch; Housing material: Metal; Suitable for safety functions: No; With status indication: No.
Technical Specifications
- Manufacturer part number (MPN)
- XCRA51
- EAN / GTIN
- 3666916049723
- HS code
- 8536.90
- Sales unit
- pcs
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP54
- Forced opening
- Yes
- Type of control element
- Actuating rod
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 85 mm
- Height of sensor
- 200 mm
- Length of sensor
- 75 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049723
- SAP 1000341240
- Code 8975367
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP100BT11F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUDA2PSML2 Fibre-Optic Sensor Amplifier, PNP, NO/NC, 2 m cable
Telemecanique

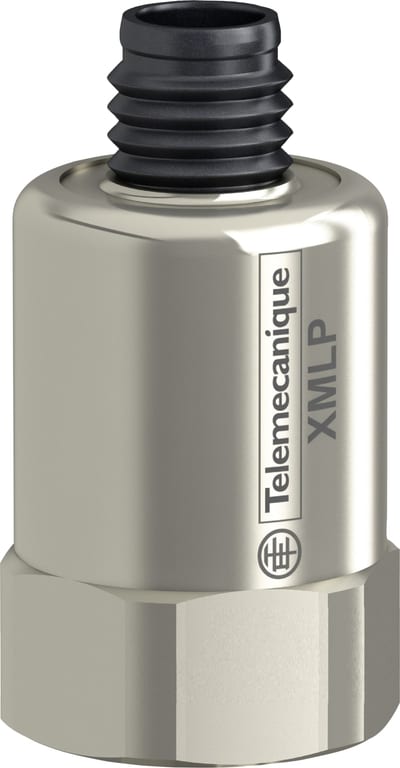

Telemecanique XMLP060BD790 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Telemecanique

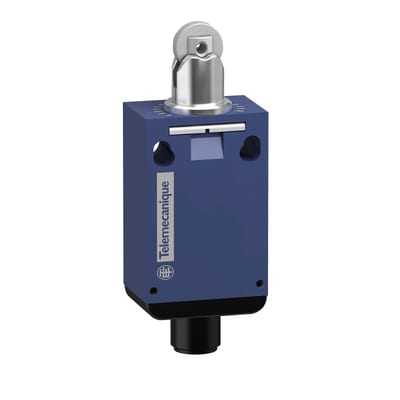

Limit switch with M12 connector (XCMV2102M12)
Telemecanique

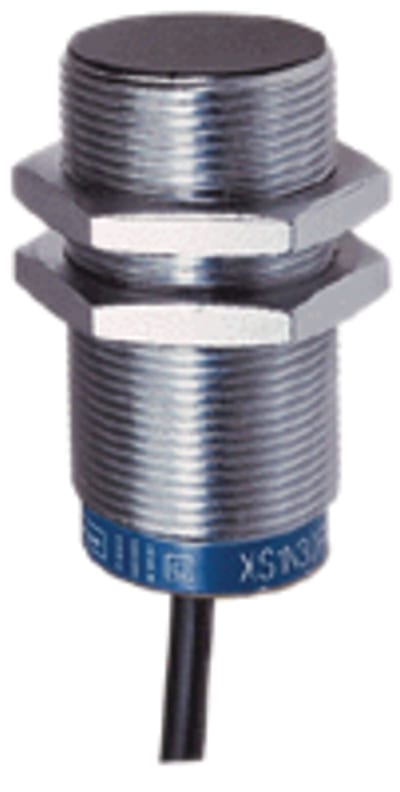

Telemecanique OsiSense XS2M18MA250 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XUSL4E30H106NM Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Telemecanique

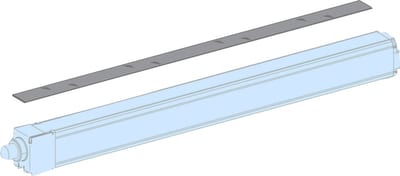

Telemecanique XUSZWPE090 Protective Cover for 900 mm XUS Light Curtains
