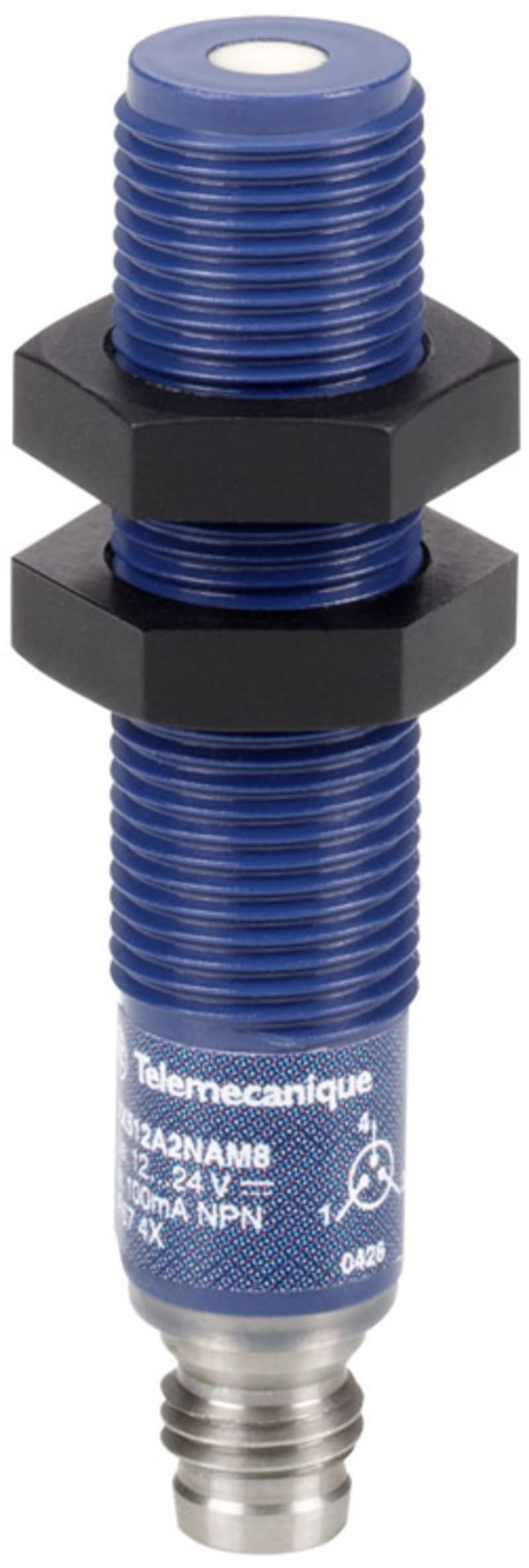

Telemecanique XX512A2NAM8 Ultrasonic Sensor, Sn 6 m, NPN, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX512A2NAM8 OsiSense XX ultrasonic proximity sensor, Sn 6 m, NPN output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX512A2NAM8
- EAN / GTIN
- 3666916079904
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Diameter
- 12 mm
- Output type
- NPN
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 125 Hz
- Type of electric connection
- Connector M8
- Type of switching output
- NPN/NPN
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 6.4 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 25 mA
- Relative linearity deflection
- 0.7 %
- Relative repeat accuracy
- 0.7 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 12 mm
- Diameter sensor
- 12 mm
- Height of sensor
- 12 mm
- Length of sensor
- 50 mm
- Adjustable distance
- 6.4–102 mm
- Measuring range length
- 6.4–102 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916079904
- SAP 1000257261
- Code 8230784
Product Documentation
