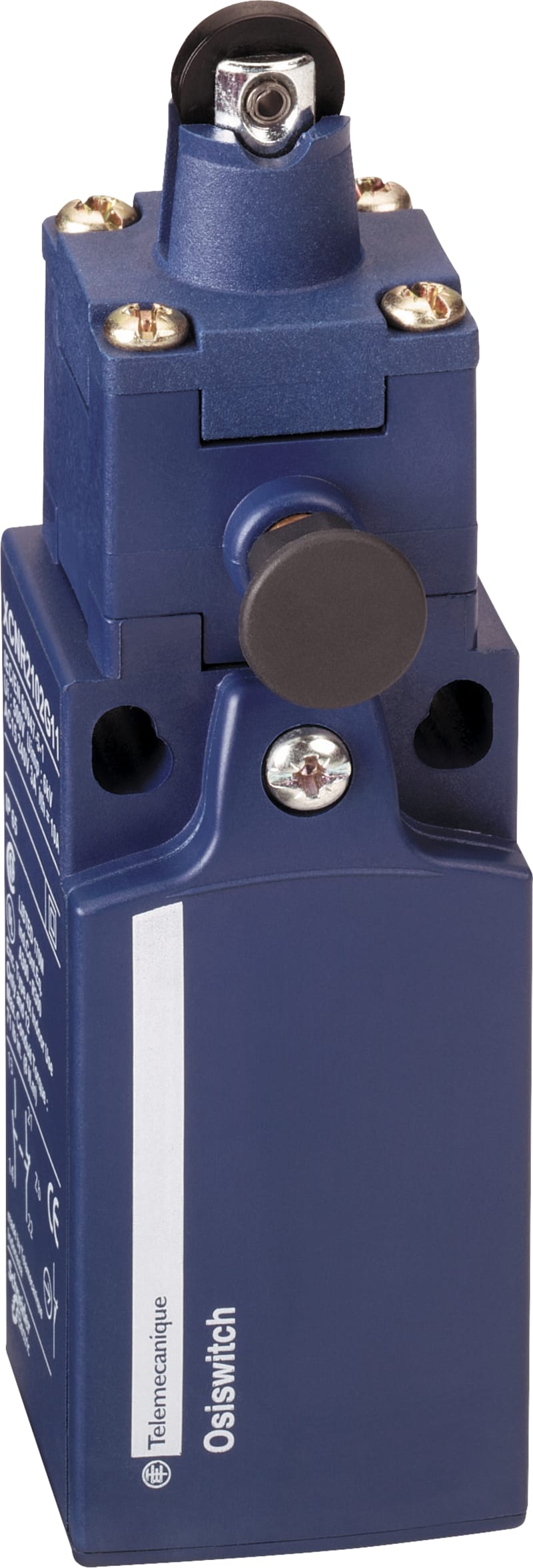

Telemecanique XCNR2502P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCNR2502P20 limit switch (position switch), plunger actuator, 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCNR2502P20
- EAN / GTIN
- 3666916050361
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 100 mm
- Length of sensor
- 38 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- In
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916050361
- SAP 1000009398
- Code 8477533
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4MB40H151N Type 4 Safety Light Grille with Integrated Muting, 1510 mm protected height
Telemecanique

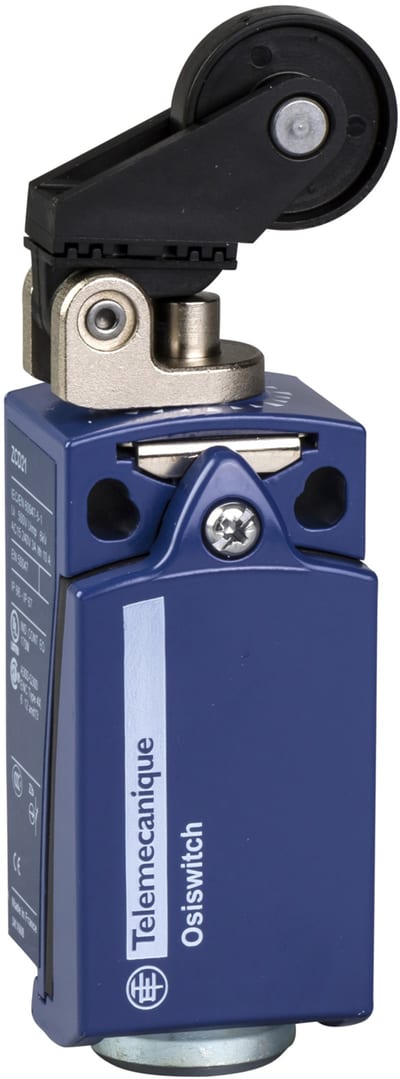

Telemecanique XCKD2528P16 Limit Switch, Roller Lever Arm, Plastic Body, 1 NO + 1 NC, M16 entry
Telemecanique
Telemecanique XMLR100M1N75 Pressure Sensor with Display, 0–100 bar, 0–10 V + 1× NPN
Telemecanique

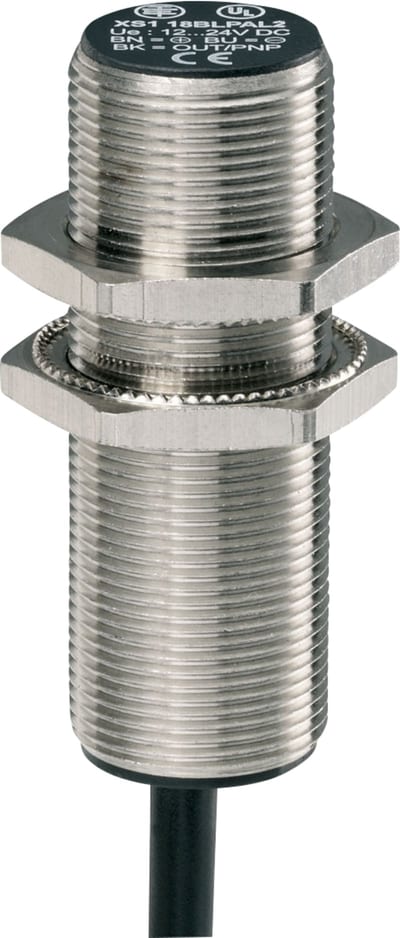

Telemecanique OsiSense XS518BLNAM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, NPN, NO, M12 connector (4-Pin)
Telemecanique

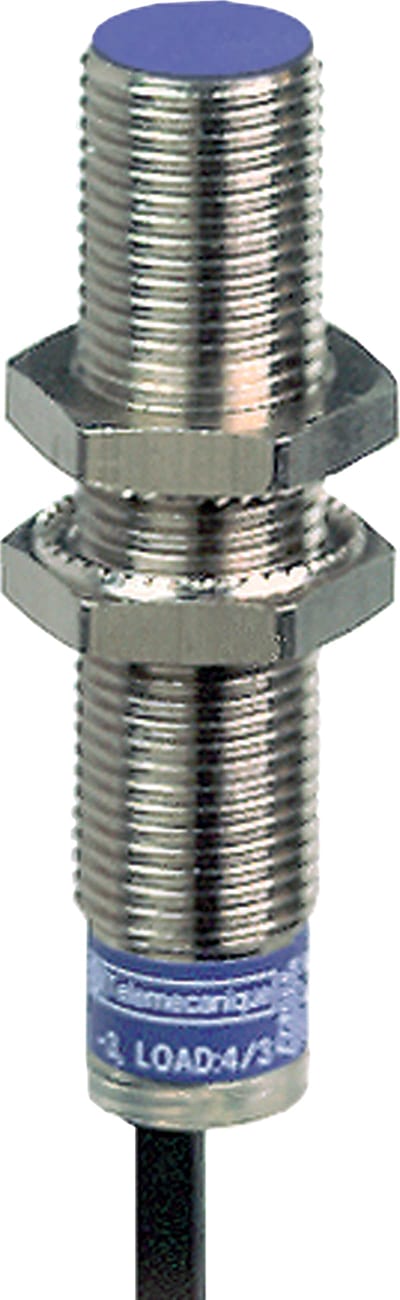

Telemecanique OsiSense XS612B1MAL10 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique

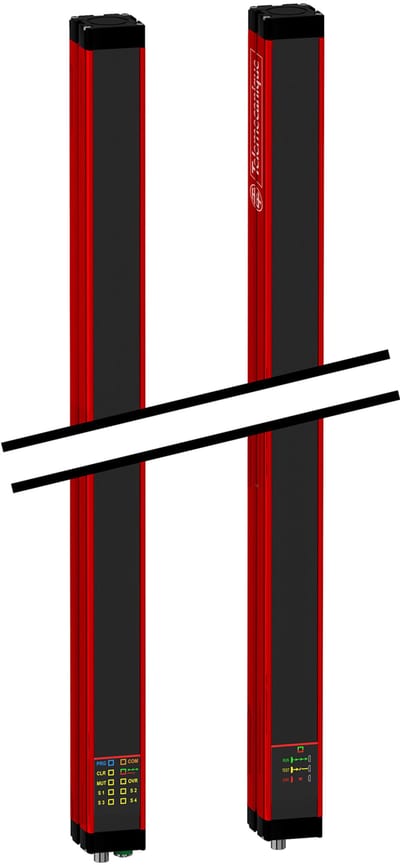

Telemecanique XUSL4MB40H226N Type 4 Safety Light Grille with Integrated Muting, 2260 mm protected height
Telemecanique

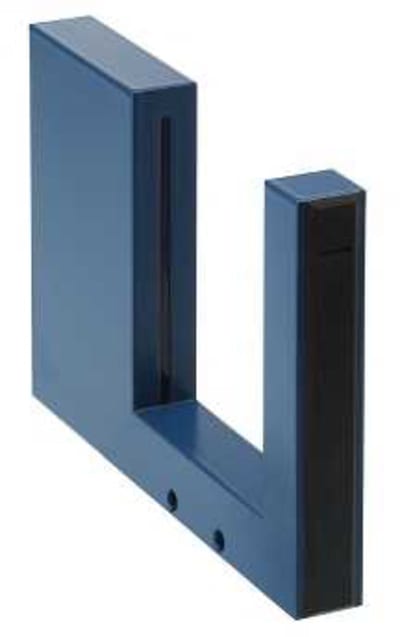

Telemecanique XUVF60M8 Frame Photoelectric Sensor 60 × 60 mm, Detects 2 mm Objects, PNP/NPN selectable, M8 connector
Telemecanique

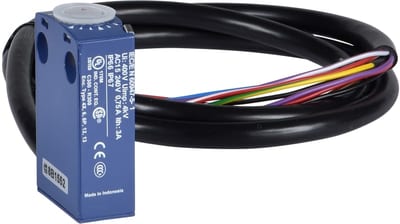

Telemecanique ZCMD41L5 Limit Switch Body, Metal, 2NC/2NO, Snap-action, 5 m cable
