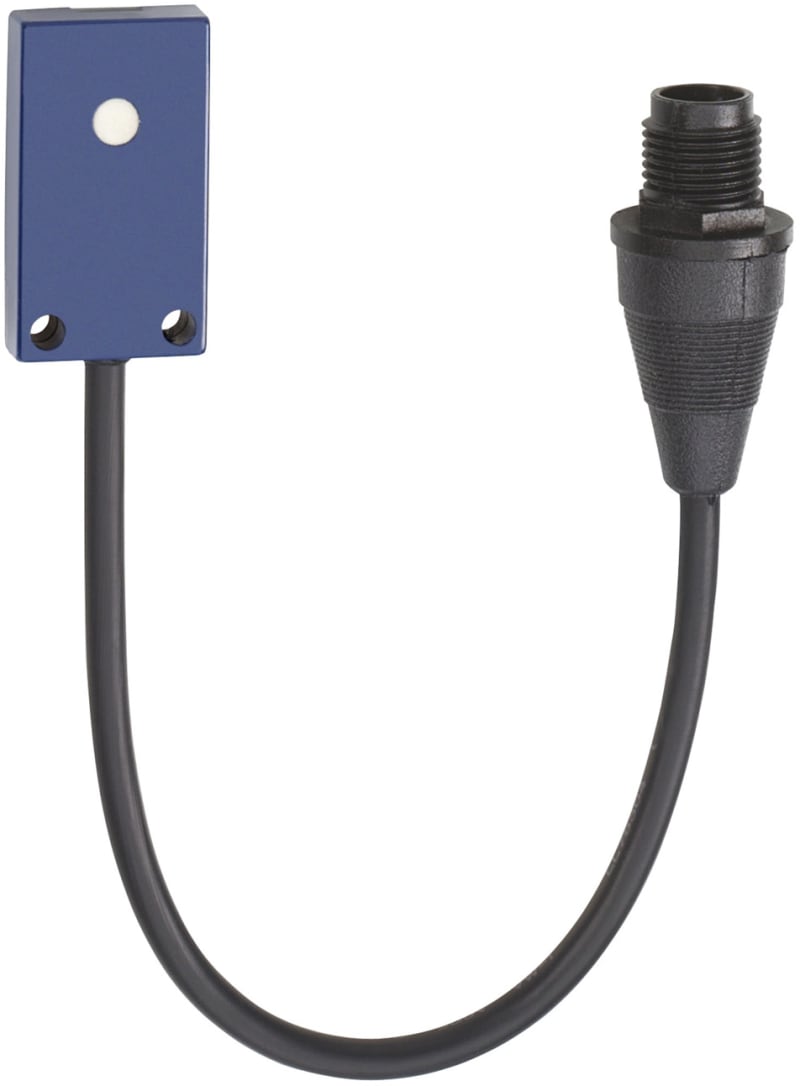

Telemecanique XX7F1A2PAL01M12 Ultrasonic Sensor, PNP, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX7F1A2PAL01M12 OsiSense XX ultrasonic proximity sensor, PNP output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX7F1A2PAL01M12
- EAN / GTIN
- 3666916079768
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Output type
- PNP
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 100 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 6.4 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- No-load current
- 25 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0.7 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 7.6 mm
- Height of sensor
- 19 mm
- Length of sensor
- 33 mm
- Adjustable distance
- 6.2–102 mm
- Measuring range length
- 6.2–102 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916079768
- SAP 1000068760
- Code 8763420
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP150PD230Q Pressure Transmitter, 0–150 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique XZCC18FCP40B Field-Wireable Connector, Female, Angled, Plastic
Telemecanique
Telemecanique OsiSense XS8C1A1MBL5 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NC, pre-wired cable
Telemecanique
Telemecanique XS7C1A1DAL10 Optimum Inductive Proximity Sensor 40 × 40 mm, DC 2-Wire NO, 10 m cable
Telemecanique
Telemecanique XCMD2111L1 Limit Switch, Plunger with Bellows Boot, Metal Body, 1 m cable
Telemecanique
Telemecanique XUBLAPCNL2 Laser Photoelectric Sensor M18, Plastic, PNP, 2 m cable
Telemecanique

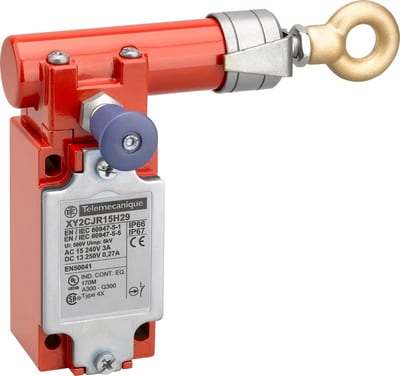

Telemecanique XY2CJR19H29 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, M20 entry
Telemecanique

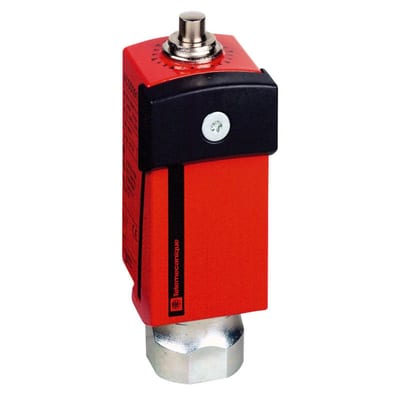

Telemecanique XCSD3710P20 Safety Limit Switch, M20 entry
