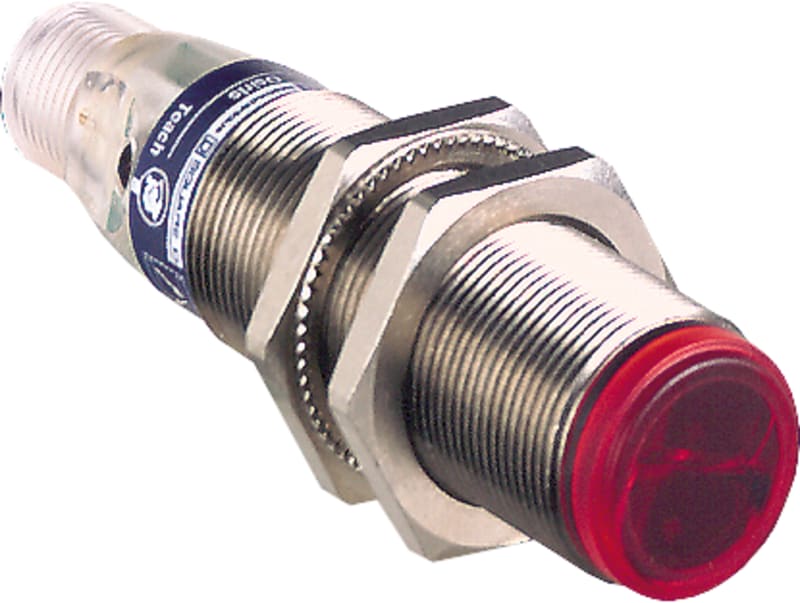

Telemecanique XUB0SPSNM12 Multimode Photoelectric Sensor, Stainless Steel, PNP, programmable, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB0SPSNM12 photoelectric multimode sensor (through-beam, reflex and diffuse modes), Ø18 mm (M18), stainless steel housing, PNP programmable output, rated distance 20 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB0SPSNM12
- EAN / GTIN
- 3666916033609
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Thread size
- M12
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 20000 mm
- Max. switching distance
- 30000 mm
- Max. output current
- 35 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 78 mm
- Sensing mode
- Light switching
- Housing material
- Metal
- Max. output current at protected output
- 35 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Laser diode, infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8541.49
Cross References
- EAN 3666916033609
- SAP 1000342093
- Code 8376996
Product Documentation
