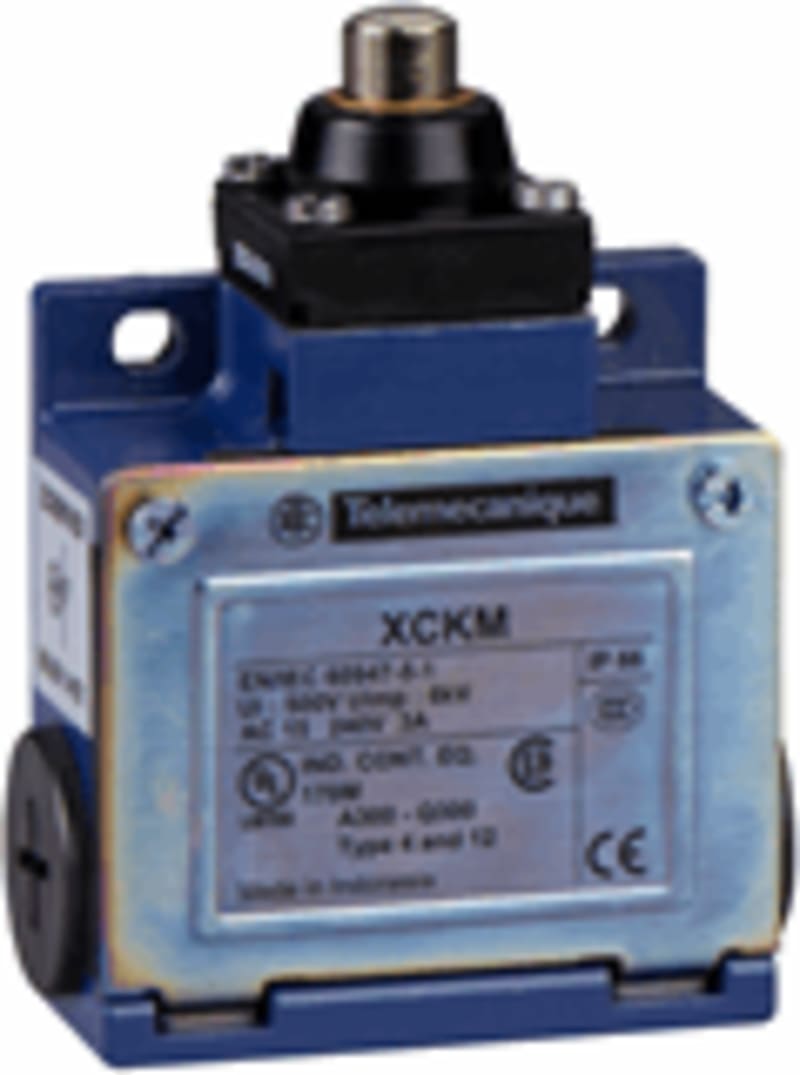

Telemecanique XCKM510 Limit Switch, Metal Plunger, 1 NO + 1 NC, PG13.5 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKM510 limit switch (position switch), metal plunger actuator, 1 NO + 1 NC contacts, PG13.5 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKM510
- EAN / GTIN
- 3666916057032
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Contact configuration
- NO / NC
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 63 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916057032
- SAP 1000341236
- Code 8991400
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCR1511041C10 Sensor Cable, M12 to M12
Telemecanique
Mounting bracket WITH Index (XSZB112)
Telemecanique
Telemecanique XMLB020B2S11 Pressure Switch, 3–20 bar
Telemecanique
Telemecanique XZCPV1965L5 Sensor Cable, M8 female angled, 3-pin, PVC, 5 m
Telemecanique
Telemecanique XUSL4MA30H046N Type 4 Safety Light Grille with Integrated Muting, 460 mm protected height
Telemecanique
PLASTIC Body,NO/NC,Momentary Contact,PG11
ZCT21G11
Telemecanique
Telemecanique XS230AAMAU20 Inductive Proximity Sensor, M2
Telemecanique

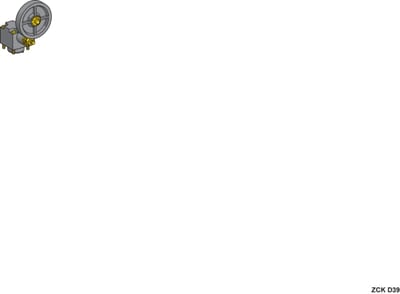

Telemecanique ZCKD39 Roller Lever Operating Head for ZCK Limit Switches
