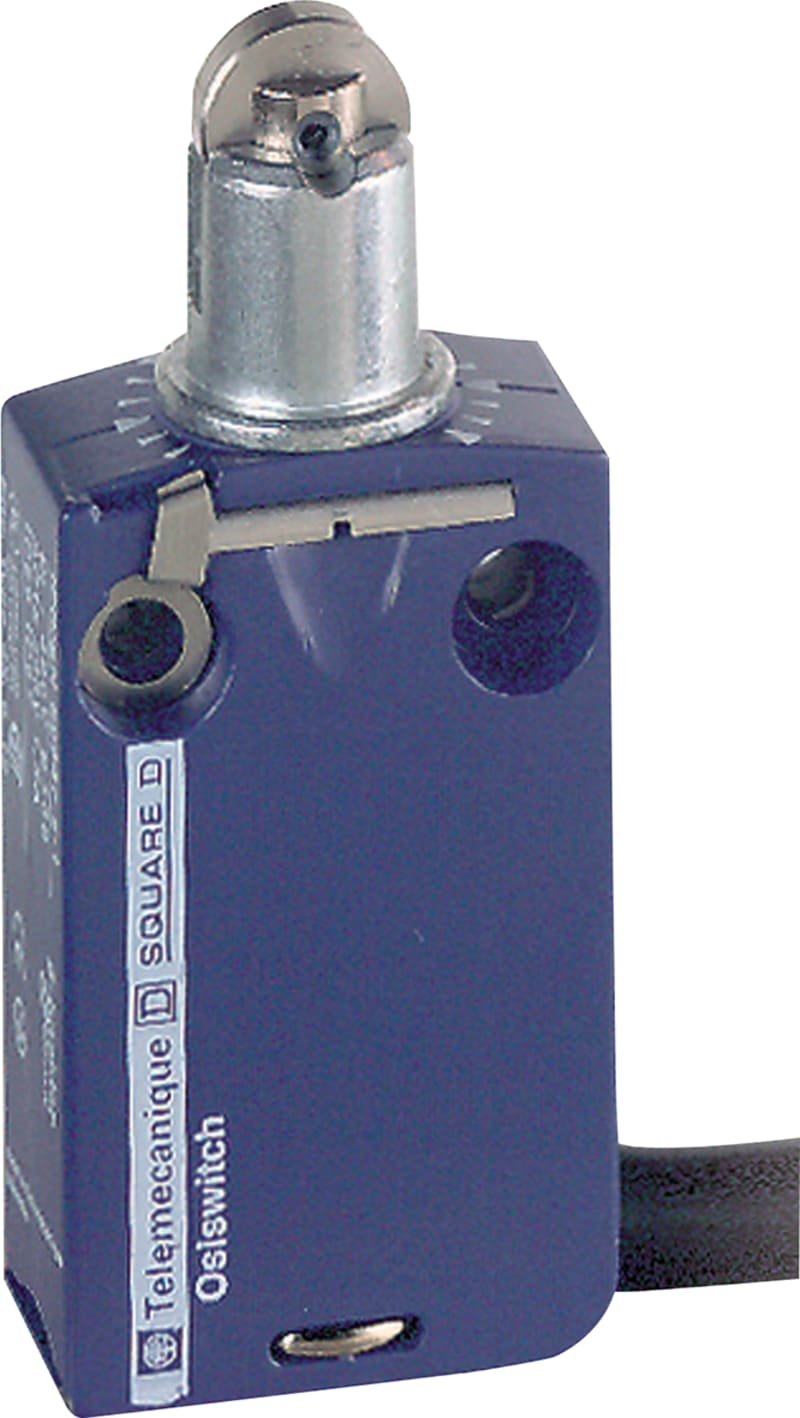

Telemecanique XCMD2102L2 Limit Switch, Metal Roller Plunger
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCMD2102L2 limit switch (position switch), metal roller plunger actuator.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2102L2
- EAN / GTIN
- 3666916094365
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916094365
- SAP 1000342073
- Code 8976970
Product Documentation
More from Telemecanique
Telemecanique

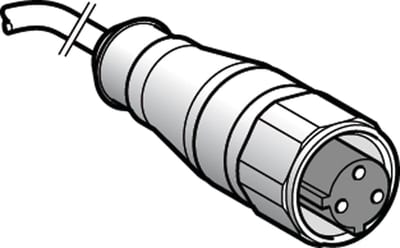

Telemecanique XZCP1541L5 Sensor Cable, M12 male straight, 4-pin, 5 m
Telemecanique

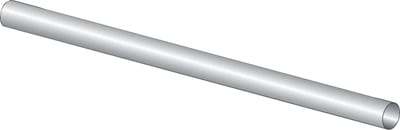

TEST ROD30 MM in Diameter
XUSZTR30
Telemecanique

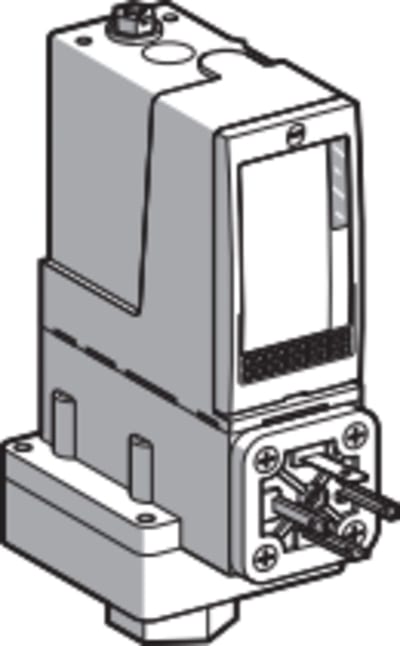

Telemecanique XMLA002A2C11 Pressure Switch, 0–2.5 bar, DIN connector
Telemecanique

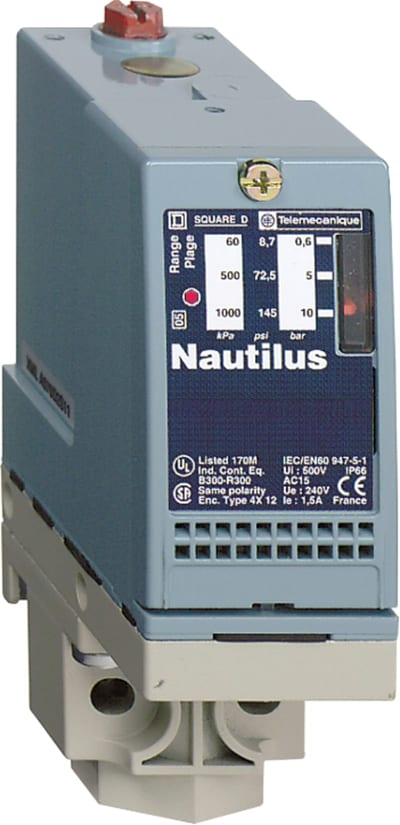

Telemecanique XMLA035A2S11 Pressure Switch, 1.5–35 bar
Telemecanique

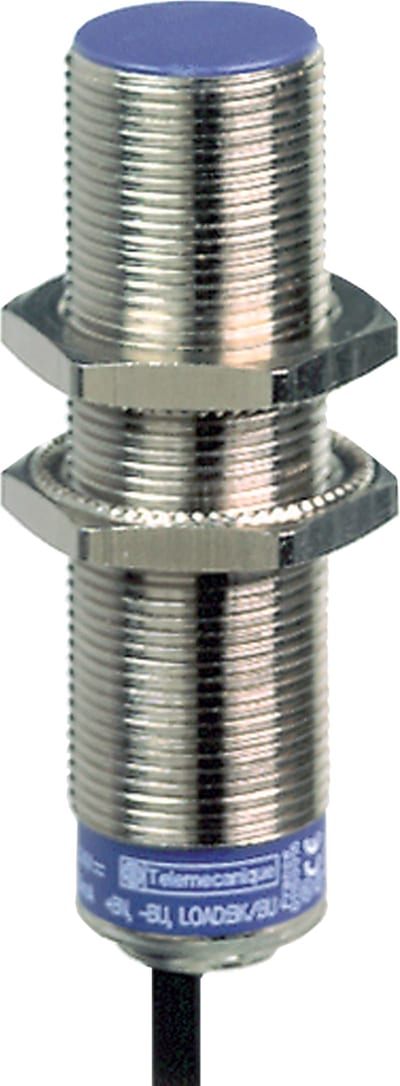

Telemecanique OsiSense XS618B1PBL10 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique XUSL4E14F046N Safety Light Curtain Type 4, Finger Detection (14 mm), 460 mm Height
Telemecanique

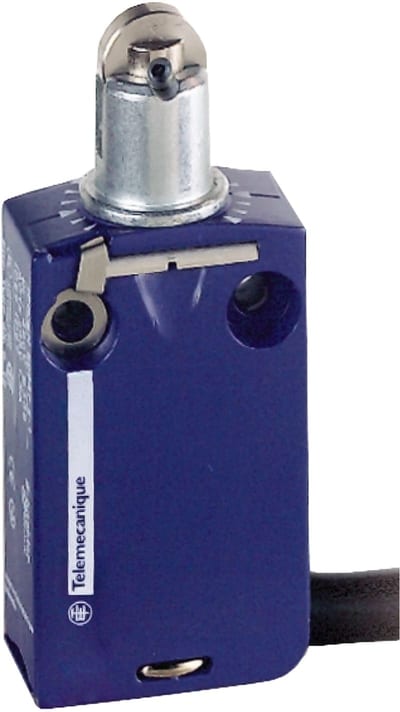

Telemecanique XCMD2102L7 Limit Switch, Metal Roller Plunger
Telemecanique

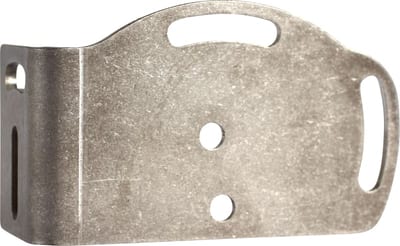

Bracket for XUKS Stainless 316L
