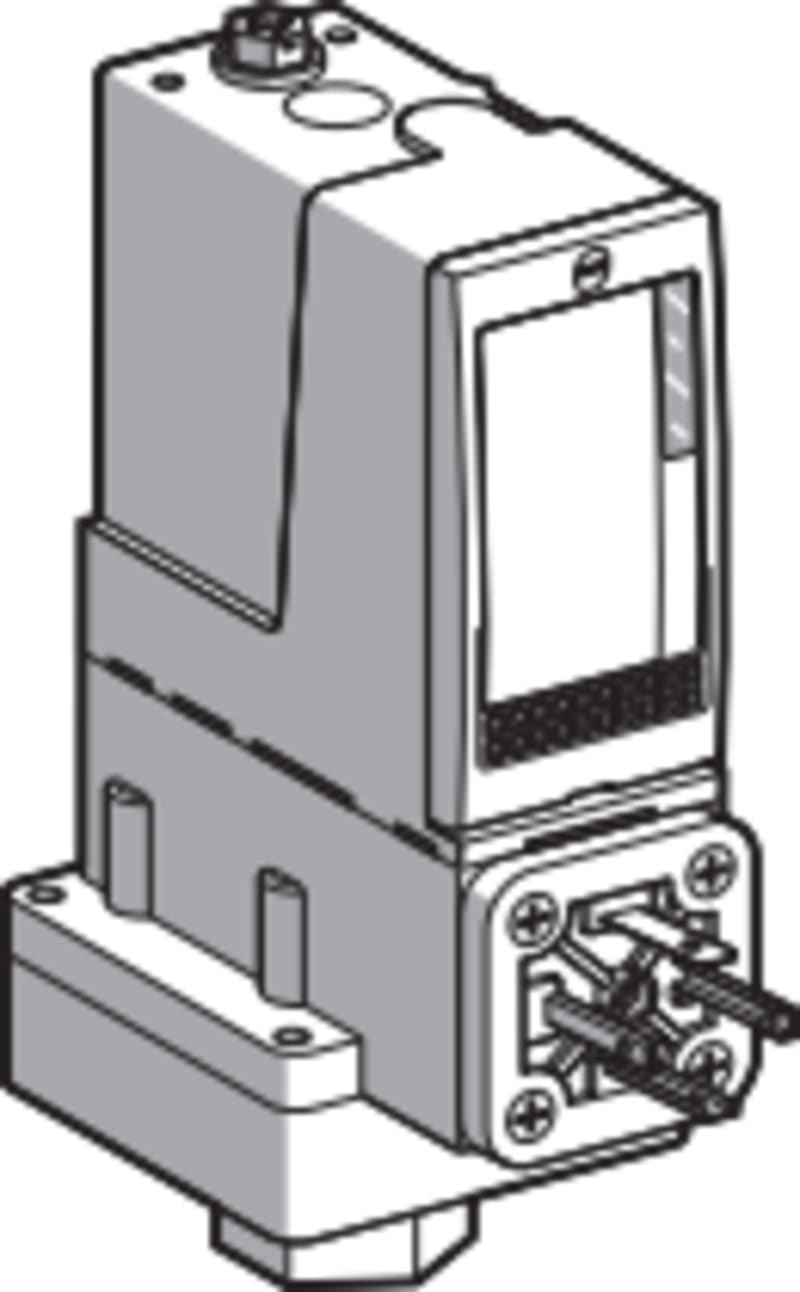

Telemecanique XMLA002A2C11 Pressure Switch, 0–2.5 bar, DIN connector

Telemecanique XMLA002A2C11 OsiSense XMLA electromechanical pressure switch, adjustable range 0–2.5 bar, DIN connector.

Manufacturer part number (MPN)

XMLA002A2C11 EAN / GTIN: 3666916026090 Sales unit: pcs Package quantity: 5 pcs Pressure: 0.15-2.5 bar Width: 35 mm Height: 158 mm Depth: 77.5 mm Connection: Internal thread cylindrical BSPP-G (ISO 228-1) With display: No With manual on/off switch: No Initial setting: 150–2500 hPa End setting: 20–2370 hPa Max. operation pressure: 5000 hPa Number of auxiliary contacts as change-over contact: 1 Explosion-proof: No Degree of protection (IP): IP65 Switch off pressure: 0.02–2.37 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 18 bar Engaging pressure: 0.15–2.5 bar Electronic version: Yes Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 9 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 0.13 bar Max. operating pressure: 2500 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916026090
• SAP 1000341822
• Code 8976506
