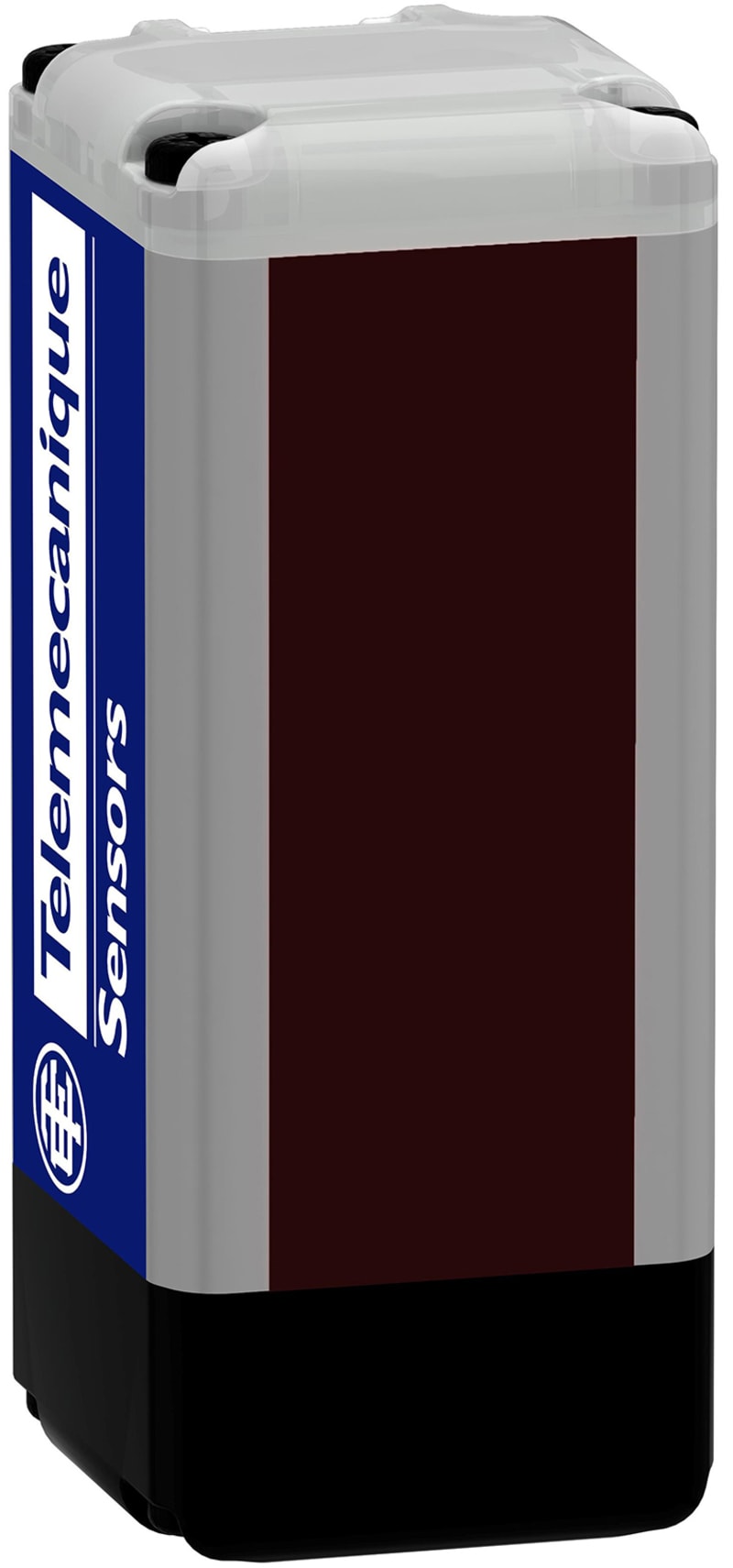

Telemecanique XUSL M Multi-Beam Safety Light Curtain B-Coded
Pricing
Request a quote
We reply within 24 hours
Product Description
Multi-beam safety photoelectric light curtain from the XUSL M range with B-coded beam pattern. Supplied as a transmitter-receiver pair with muting and restart-blockage functions, single OSSD PNP output and a 3.5 m operating range. Sensor housing measures 30x28x70 mm and is rated IP65 for machine-guarding applications.
Technical Specifications
- Manufacturer part number (MPN)
- XUSZPM5BXPL09
- EAN / GTIN
- 3666916026915
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 1
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Width sensor
- 28 mm
- Height of sensor
- 70 mm
- Length of sensor
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- With muting function
- Yes
- Override possible
- No
- Response time
- 100 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 3.5 m
- Switching voltage of OSSD at state "high"
- 24 V
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 940 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916026915
- SAP 1200357507
- Code 82361014
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSZMD106 Deflection Mirror for Safety Light Curtains, 1230 mm
Telemecanique
Telemecanique XUSZMF172 Deflection Mirror for Safety Light Curtains, 1725 mm
Telemecanique
Telemecanique XUB0APSNL2 Multimode Photoelectric Sensor, Plastic, PNP, programmable, 2 m cable
Telemecanique
Telemecanique XY2CEDA290EX Emergency Stop Rope Pull Switch, Double-Sided, Ex Version, 2 × 100 m Rope
Telemecanique
Telemecanique XUSL4E30H076NS1 Safety Light Curtain Type 4, Hand Detection (30 mm), 760 mm Height
Telemecanique
Telemecanique XCSDMP5015 Coded Magnetic Safety Switch, 1 NO + 2 NC, with LED
Telemecanique
Telemecanique XY2CEDA290 Emergency Stop Rope Pull Switch, 100 m Rope Span
Telemecanique
Telemecanique XUB0BPSNL2 Multimode Photoelectric Sensor, Metal, PNP, programmable, 2 m cable
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUSZPM5BXPL09?
- XUSZPM5BXPL09 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUSZPM5BXPL09.
- What is the HS code for XUSZPM5BXPL09?
- The customs tariff (HS) code for XUSZPM5BXPL09 is 8536.50.
- Who manufactures XUSZPM5BXPL09?
- XUSZPM5BXPL09 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XUSZPM5BXPL09?
- Yes — the XUSZPM5BXPL09 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUSZPM5BXPL09?
- The minimum order quantity is 1.
- Is XUSZPM5BXPL09 available?
- Yes — XUSZPM5BXPL09 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
