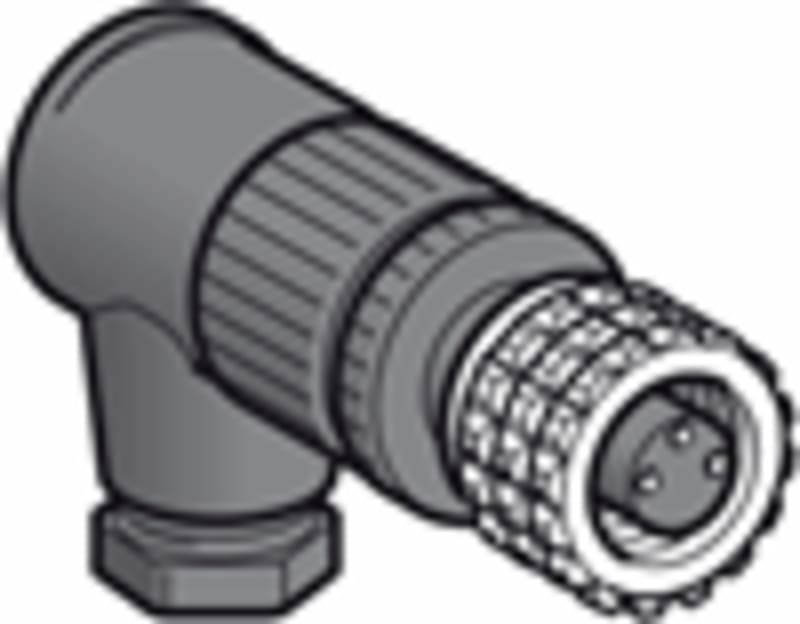

Telemecanique XZCC8FCM30V Field-Wireable Connector, M8, Female, Angled, 3-pin, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC8FCM30V field-wireable (user-attachable) connector, M8 female angled, 3-pin, metal body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC8FCM30V
- EAN / GTIN
- 3666916069790
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M8
- Contact type
- Pin
- Diameter connector
- 8 mm
- Thread size M
- 12
- Number of data contacts
- 3
- For cable outer diameter
- 9.5 mm
- Type of housing
- Angled
- Rated current In
- 4 A
- Ambient temperature
- -25–70 °C
- Rated voltage
- 60 V
- Connectable conductor cross section solid-core
- 0–0.25 mm²
- Connectable conductor cross section multi-wired
- 0–0.25 mm²
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069790
- SAP 1000257299
- Code 8140012
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCPA1164L5 Sensor Cable, M12 female, 5-pin, PVC, 5 m
Telemecanique

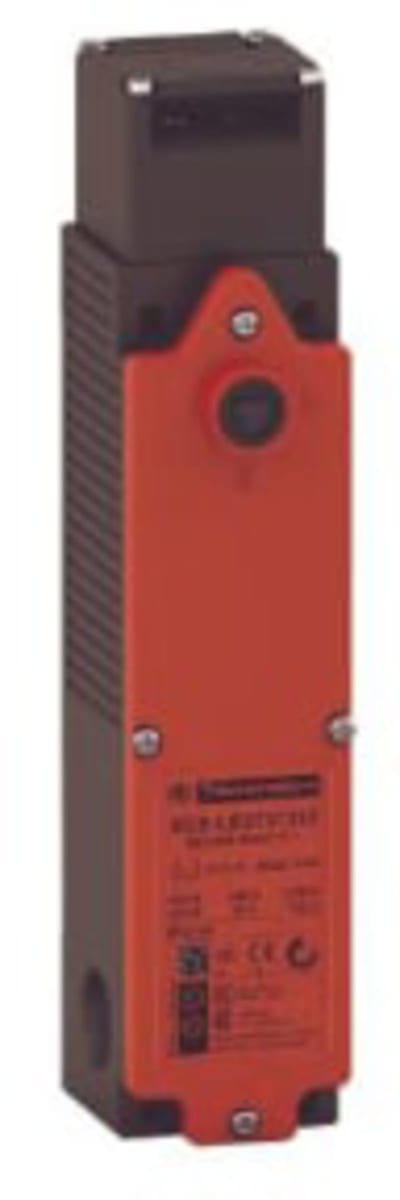

Telemecanique XCSLE3838312 Safety Limit Switch, 3 NC + 3 NC
Telemecanique
Telemecanique XZCRA151141C5 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCC12MDP40B Field-Wireable Connector, M12, Male, Straight, 4-pin, Plastic
Telemecanique
Telemecanique XZCR1512064D2 Sensor Cable, M12 to M12
Telemecanique

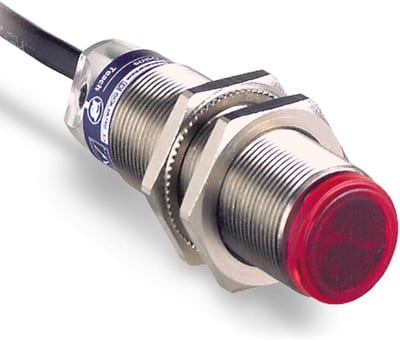

Telemecanique XUB2BPANL2R Photoelectric Through-Beam Receiver, Metal, PNP, NO, 2 m cable
Telemecanique
Telemecanique XZCRA151141C2 Sensor Cable, M12 to M12
Telemecanique

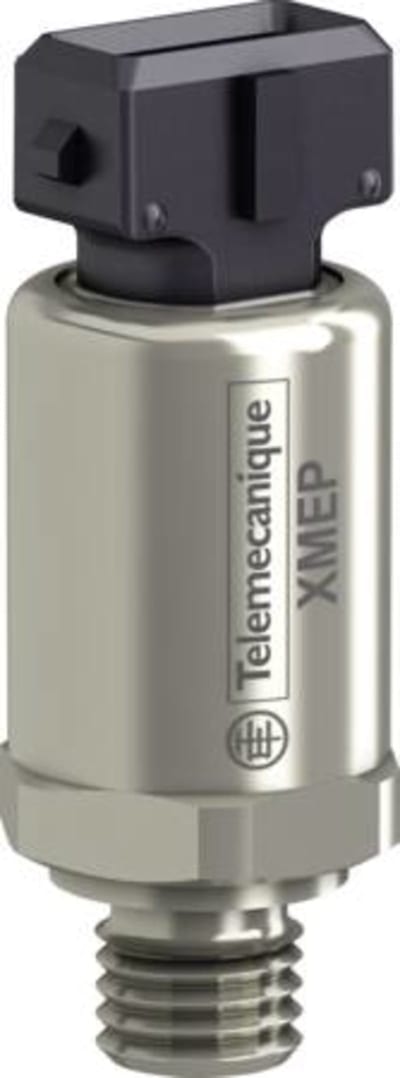

Telemecanique XMEP250BJ21F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
