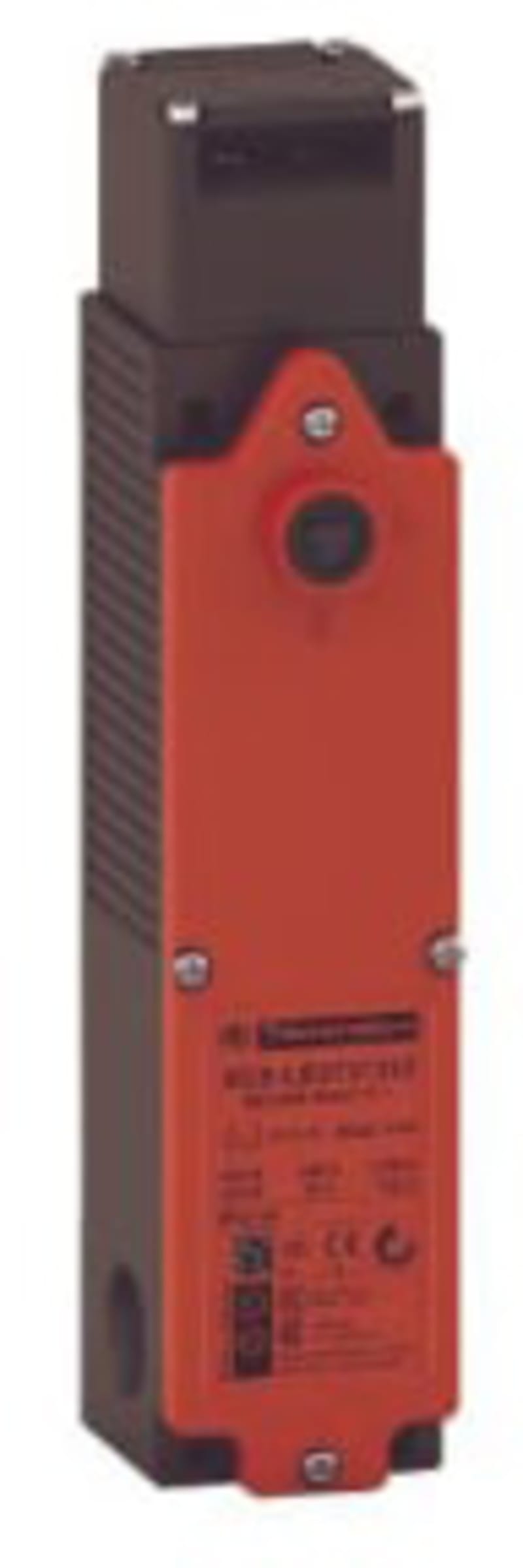

Telemecanique XCSLE3838312 Safety Limit Switch, 3 NC + 3 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSLE3838312 safety limit switch with positive opening contacts, 3 NC + 3 NC contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLE3838312
- EAN / GTIN
- 3666916047903
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- Contact configuration
- 3 NC + 3 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 3
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047903
- SAP 1000336174
- Code 81085307
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCRA151141C5 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCC12MDP40B Field-Wireable Connector, M12, Male, Straight, 4-pin, Plastic
Telemecanique
Telemecanique XZCR1512064D2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XUB2BPANL2R Photoelectric Through-Beam Receiver, Metal, PNP, NO, 2 m cable
Telemecanique
Telemecanique XZCRA151141C2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XMEP250BJ21F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
Telemecanique
Telemecanique XUM6ANXBM8 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.8 m, NPN, M8 connector
Telemecanique
Telemecanique XUZM2004 Protection Cover for XUM Photoelectric Sensors
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSLE3838312?
- XCSLE3838312 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSLE3838312.
- What is the HS code for XCSLE3838312?
- The customs tariff (HS) code for XCSLE3838312 is 8536.50.
- Who manufactures XCSLE3838312?
- XCSLE3838312 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSLE3838312?
- Yes — the XCSLE3838312 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSLE3838312?
- The minimum order quantity is 1.
- Is XCSLE3838312 available?
- Yes — XCSLE3838312 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
