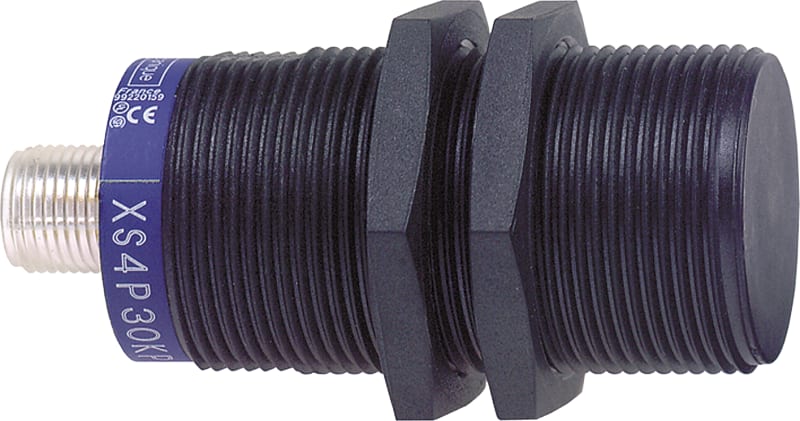

Telemecanique OsiSense XS4P30KP340D Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS4P30KP340D is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 15 mm. It provides a PNP or NPN, programmable (3-wire DC) output, switching NO or NC (programmable), via M12 connector (4-pin). Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS4P30KP340D
- EAN / GTIN
- 3666916014738
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 15 mm
- Output
- PNP or NPN, programmable (3-wire DC)
- Switching function
- NO or NC (programmable)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 12…24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 12 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916014738
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XT218A1FAL2 Capacitive Proximity Sensor Ø18 mm, 2-Wire, NO, 2 m cable
Telemecanique
Telemecanique XS530B1DAL2 Optimum Inductive Proximity Sensor Ø30 mm, DC 2-Wire NO, 2 m cable
Telemecanique
Terminal set (res.) for ZC2JD1
ZC2JD19
Telemecanique
Telemecanique XCKP2118G11 Limit Switch, Plastic Body, 1 NO + 1 NC, PG11 entry
Telemecanique
Telemecanique XCSDMC59010 Coded Magnetic Safety Switch, 1 NO + 1 NC, 10 m cable
Telemecanique
Telemecanique ZC2JY81 Limit Switch Operating Lever, Spring Rod (Cat's Whisker)
Telemecanique
Telemecanique XUB4BPANM12 Photoelectric Sensor, Diffuse, Metal, PNP, NO, M12 connector
Telemecanique
Telemecanique XCKS549 Limit Switch, Plastic Body, 1 NO + 1 NC
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS4P30KP340D?
- XS4P30KP340D can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS4P30KP340D.
- What is the HS code for XS4P30KP340D?
- The customs tariff (HS) code for XS4P30KP340D is 8536.50.
- Who manufactures XS4P30KP340D?
- XS4P30KP340D is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS4P30KP340D?
- Yes — the XS4P30KP340D datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS4P30KP340D?
- The minimum order quantity is 1.
- Is XS4P30KP340D available?
- Yes — XS4P30KP340D is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
