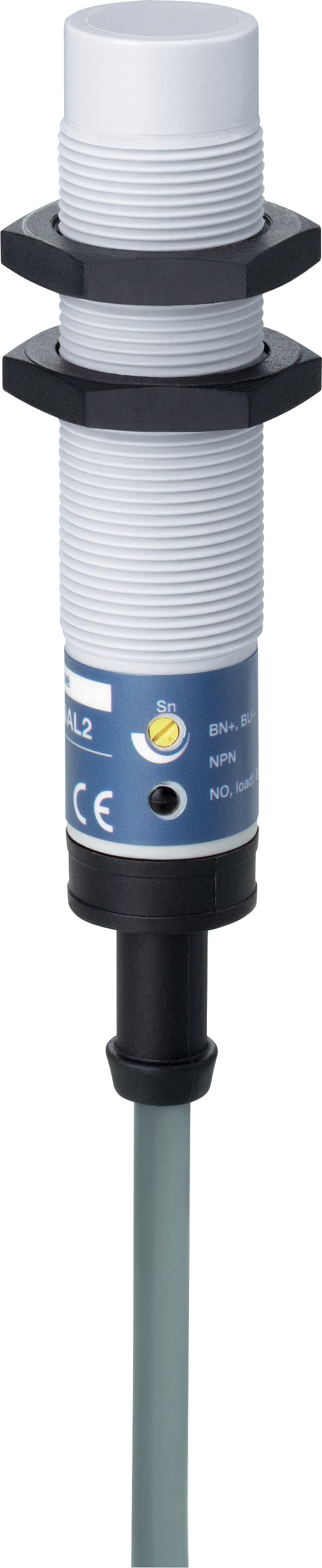

Telemecanique XT218A1FAL2 Capacitive Proximity Sensor Ø18 mm, 2-Wire, NO, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XT218A1FAL2 capacitive proximity sensor, Ø18 mm body, 2-Wire NO output, sensing distance 8 mm, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XT218A1FAL2
- EAN / GTIN
- 3666916020166
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Diameter
- 18 mm
- Cable length
- 2 m
- Length of sensor
- 72 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 8 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact
- Type of switching output
- 2-wire
- Type of electric connection
- Cable axial
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic and non-metallic target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 300 mA
- Supply voltage
- 24–240 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC
- Switching frequency
- 15 Hz
- With monitoring function downstream switching devices
- No
- With status indication
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916020166
- SAP 1000341473
- Code 8975905
Product Documentation
