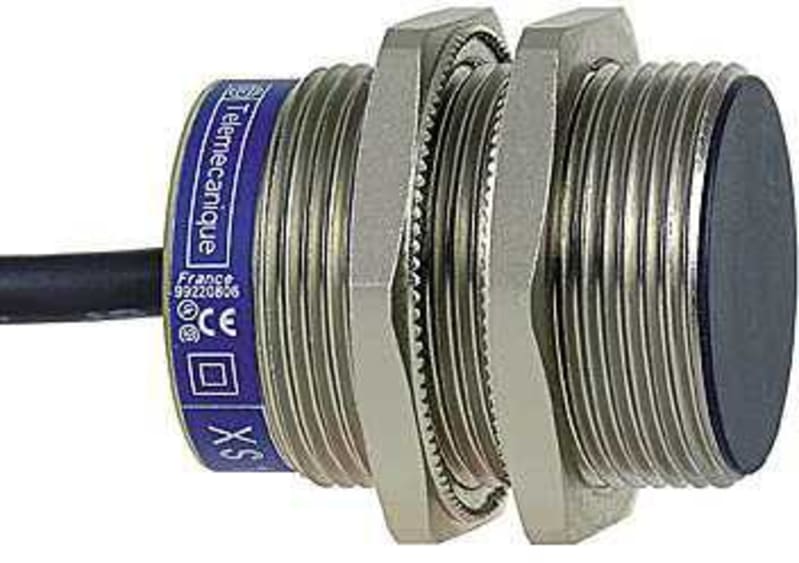

Telemecanique OsiSense XS1N30PB349 Inductive Proximity Sensor — M30 barrel, Sn 20 mm, PNP, NC, pre-wired cable (2 m)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS1N30PB349 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 20 mm. It provides a PNP (3-wire DC) output, switching NC (normally closed), via pre-wired cable (2 m). Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS1N30PB349
- EAN / GTIN
- 3666916016077
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 20 mm
- Output
- PNP (3-wire DC)
- Switching function
- NC (normally closed)
- Connection
- pre-wired cable (2 m)
- Rated supply voltage
- 12…24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916016077
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUAH0525S Miniature Photoelectric Sensor M8, Diffuse, PNP NC, M8 Connector
Telemecanique
Telemecanique XUSL4MB40H091N Type 4 Safety Light Grille with Integrated Muting, 910 mm protected height
Telemecanique
Telemecanique OsiSense XS7E1A1PAM8 Inductive Proximity Sensor — 26 × 26 mm block, Sn 10 mm, PNP, NO, M8 connector
Telemecanique
Photocell colour kontr. NPN M12
XUKR1NSMM12
Telemecanique
Telemecanique XXR18A3KAM12 Ultrasonic Sensor (Through-Beam Receiver) M18, PNP/NPN selectable, NO, M12 connector
Telemecanique
Telemecanique XMLR040G1N26 Pressure Sensor with Display, 0–40 bar, 4–20 mA + 1× NPN
Telemecanique
Limit SWITCH,METAL 2 POLE Nc+no (XCRB15)
Telemecanique
Telemecanique ZCKJ11H29 Limit Switch Body, Metal, NO+NC, Snap-action, Plug-In, M20 cable entry
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS1N30PB349?
- XS1N30PB349 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS1N30PB349.
- What is the HS code for XS1N30PB349?
- The customs tariff (HS) code for XS1N30PB349 is 8536.50.
- Who manufactures XS1N30PB349?
- XS1N30PB349 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS1N30PB349?
- Yes — the XS1N30PB349 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS1N30PB349?
- The minimum order quantity is 1.
- Is XS1N30PB349 available?
- Yes — XS1N30PB349 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
