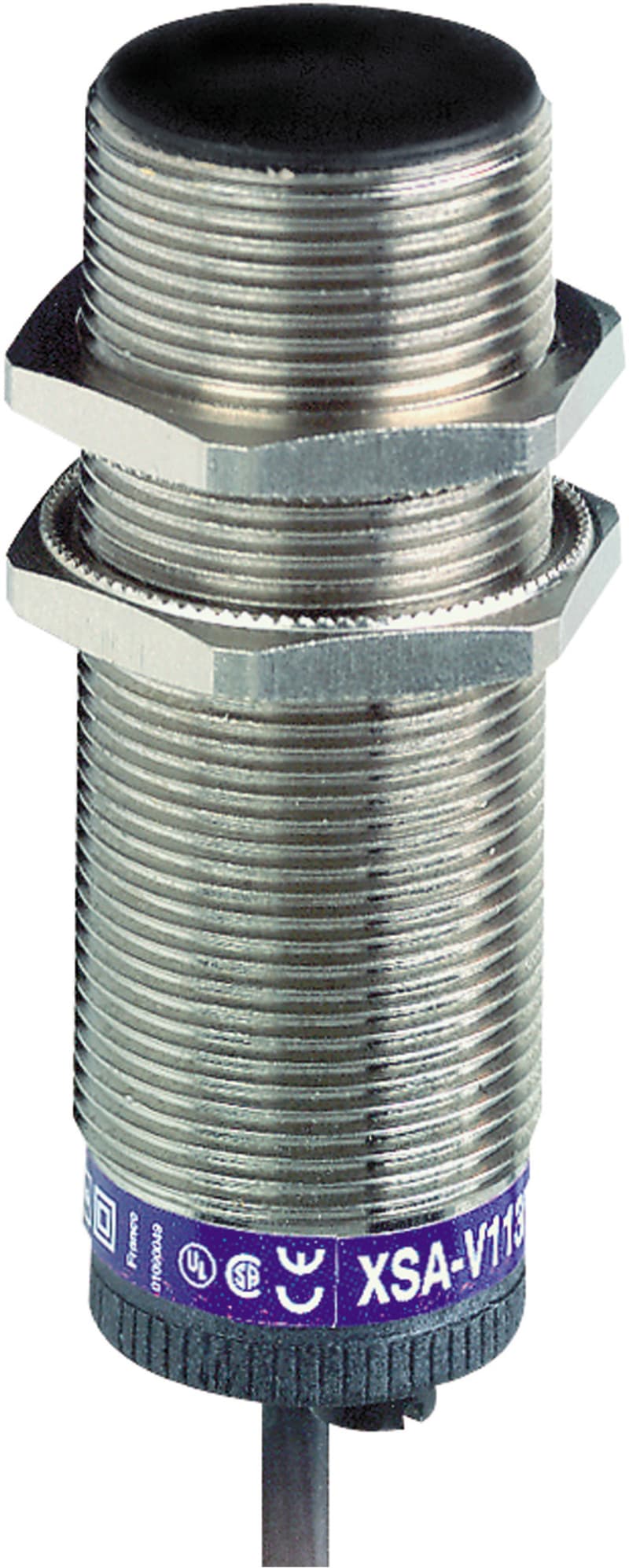

Telemecanique XSAV12373 Inductive Sensor for Rotation Monitoring, Ø30 mm, 24 V DC, PNP
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XSAV12373 OsiSense XSAV inductive sensor for under-speed and rotation monitoring, Ø30 mm barrel, 24 V DC supply, PNP output.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV12373
- EAN / GTIN
- 3666916009178
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Diameter
- 30 mm
- Output type
- PNP
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact
- Type of switching output
- PNP/PNP
- Type of electric connection
- Cable radial
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Supply voltage
- 12–48 V
- Rated control supply voltage DC
- 12–48 V
- Voltage type
- AC/DC
- Switching frequency
- 800 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009178
- SAP 1000006234
- Code 833687
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XXA30B2PM12 Ultrasonic Sensor M30, Metal, 90° Head, Range 2 m, M12 connector
Telemecanique
Telemecanique XMLA010A2C11 Pressure Switch, 6–10 bar, DIN connector
Telemecanique
Telemecanique ZCMC25L5 Contact Body for XCM Limit Switches, 1 NO + 1 NC, snap action, 5 m cable
Telemecanique
Telemecanique OsiSense XS618B3DAL2 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire DC, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XUSL4E30H046NS2 Safety Light Curtain Type 4, Hand Detection (30 mm), 460 mm Height
Telemecanique
Telemecanique XT218A1NAL2 Capacitive Proximity Sensor Ø18 mm, NPN, NO, 2 m cable
Telemecanique
Telemecanique XZCR2705037R1 Sensor Cable, M8 to M8, 1 m
Telemecanique
Telemecanique XCSDMR7915 Coded Magnetic Safety Switch, Cylindrical M30, NO+NO, LED, 5 m cable
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XSAV12373?
- XSAV12373 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XSAV12373.
- What is the HS code for XSAV12373?
- The customs tariff (HS) code for XSAV12373 is 8536.50.
- Who manufactures XSAV12373?
- XSAV12373 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XSAV12373?
- Yes — the XSAV12373 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XSAV12373?
- The minimum order quantity is 1.
- Is XSAV12373 available?
- Yes — XSAV12373 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
