Telemecanique XUSL4E30H046NS2 Safety Light Curtain Type 4, Hand Detection (30 mm), 460 mm Height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E30H046NS2 Type 4 safety light curtain, hand detection with 30 mm resolution, protected height 460 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E30H046NS2
- EAN / GTIN
- 3666916028131
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 537 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- Yes
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 460 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028131
- SAP 1000652046
- Code 8458370
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XT218A1NAL2 Capacitive Proximity Sensor Ø18 mm, NPN, NO, 2 m cable
Telemecanique
Telemecanique XZCR2705037R1 Sensor Cable, M8 to M8, 1 m
Telemecanique

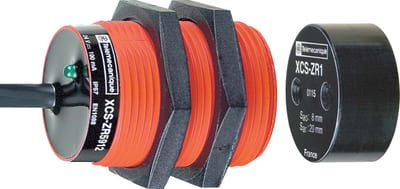

Telemecanique XCSDMR7915 Coded Magnetic Safety Switch, Cylindrical M30, NO+NO, LED, 5 m cable
