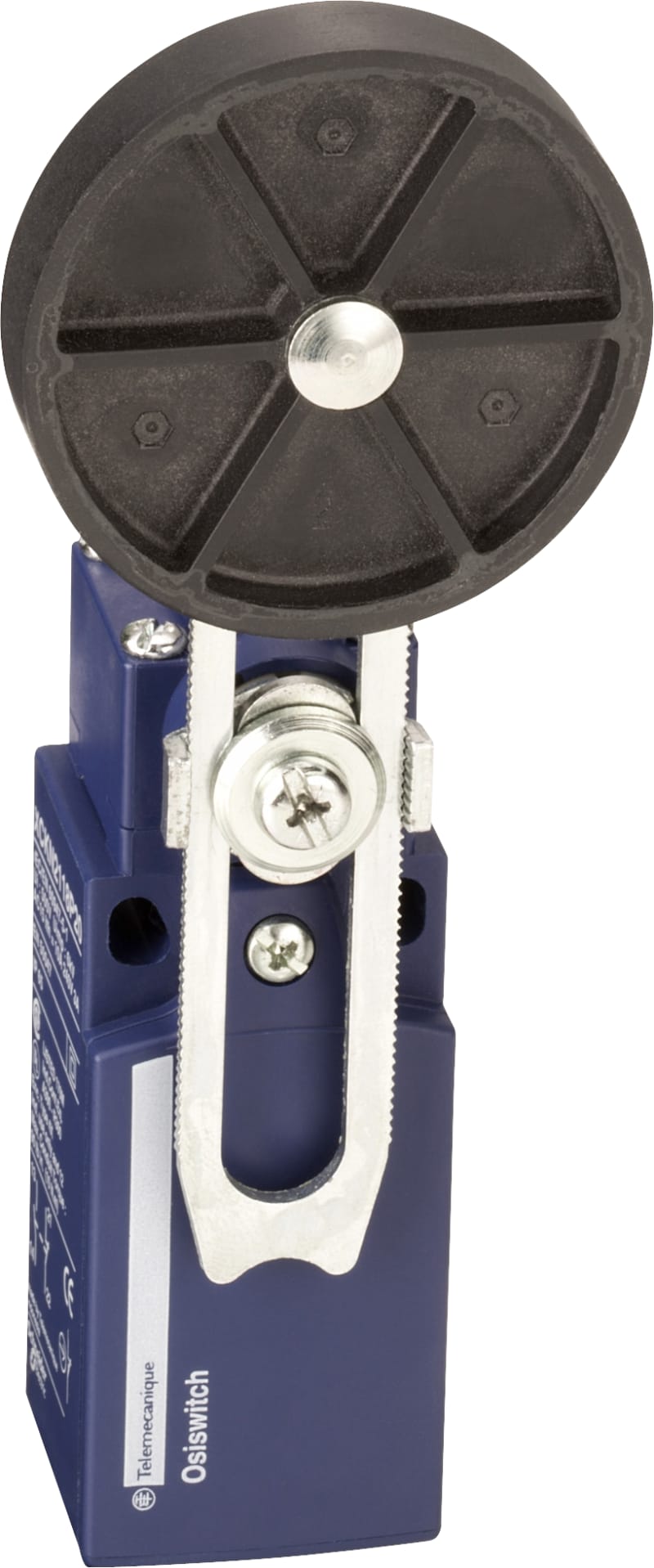

Telemecanique XCKN2949P20 Limit Switch, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKN2949P20 limit switch (position switch), 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKN2949P20
- EAN / GTIN
- 3666916054680
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 173 mm
- Length of sensor
- 48 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916054680
- SAP 1000013128
- Code 8107726
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCE016 Operating Head for XC Standard Limit Switches
Telemecanique
Telemecanique XUB1BPBWL2 Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique
Telemecanique XZCP0266L10 Sensor Cable, M8 female angled, 3-pin, 10 m
Telemecanique
Telemecanique XMLP250BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLRM01G2P05 Pressure Sensor with Display, 0–1 bar, 2× PNP
Telemecanique
Telemecanique XPSLCMUT1160 Muting Module for Safety Light Curtains
Telemecanique
Telemecanique XUSL2E30H076NWC Safety Light Curtain Type 2, 30 mm resolution, hand detection, 760 mm protected height
Telemecanique
Telemecanique OsiSense XS8E1A1MAL01U20 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, 2-Wire AC/DC, NO, screw terminals
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKN2949P20?
- XCKN2949P20 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKN2949P20.
- What is the HS code for XCKN2949P20?
- The customs tariff (HS) code for XCKN2949P20 is 8536.50.
- Who manufactures XCKN2949P20?
- XCKN2949P20 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKN2949P20?
- Yes — the XCKN2949P20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKN2949P20?
- The minimum order quantity is 1.
- Is XCKN2949P20 available?
- Yes — XCKN2949P20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
