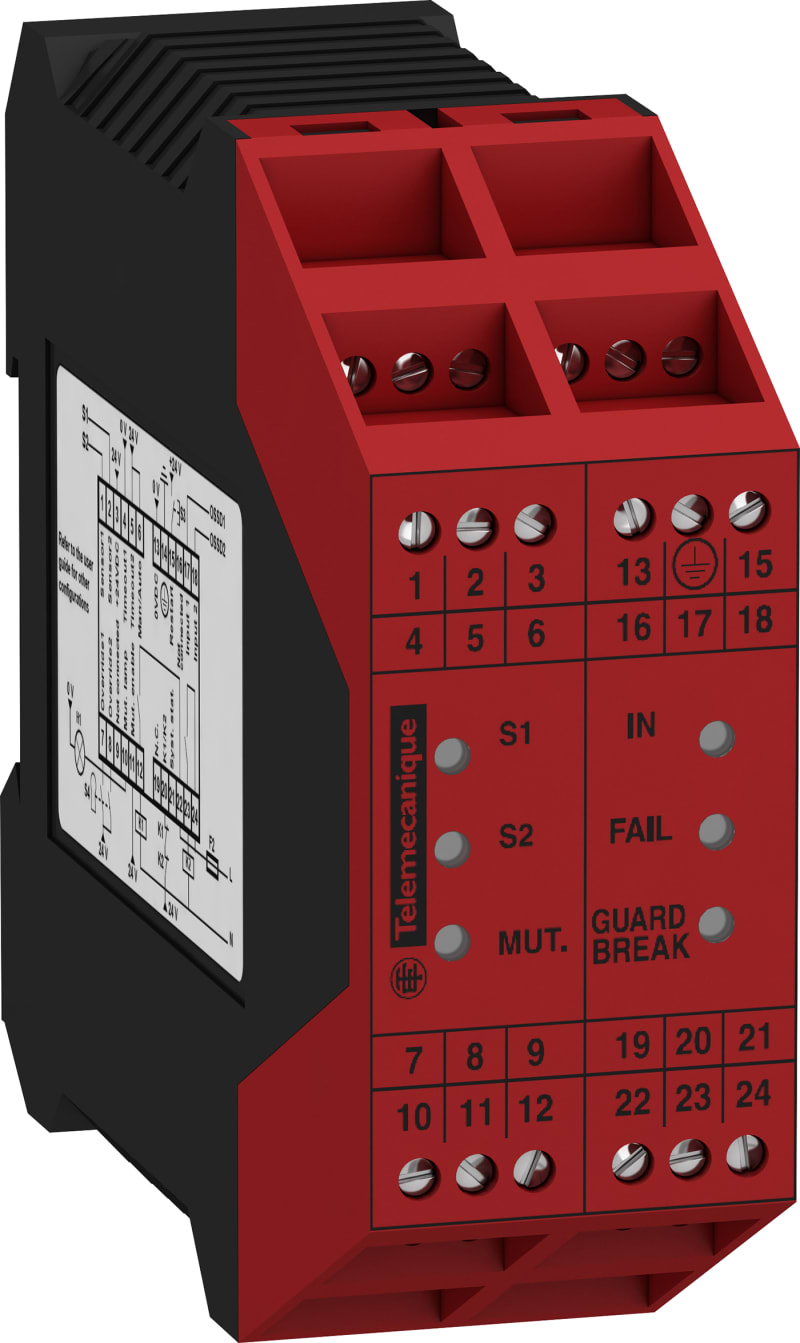

Telemecanique XPSLCMUT1160 Muting Module for Safety Light Curtains
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique Preventa XPSLCMUT1160 muting module for safety light curtain installations; allows material to pass while persons remain detected.
Technical Specifications
- Manufacturer part number (MPN)
- XPSLCMUT1160
- EAN / GTIN
- 3666916070383
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Operating voltage DC
- 24 V
- Power consumption
- 5 W
- Supply voltage DC
- 24 V
- Control voltage 1
- 24 V
- Control voltage 2
- 24 V
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Model
- Expansion device
- Suitable for monitoring of position switches
- No
- Suitable for monitoring of emergency-stop circuits
- No
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Voltage type for actuating
- AC/DC
- With detachable clamps
- Yes
- Evaluation inputs
- 1-channel or 1- and 2-channel
- With start input
- Yes
- With muting function
- Yes
- With feedback circuit
- Yes
- Release-delay
- 0.02 s
- Type of safety according to IEC 61496-1
- 1
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- Yes
- Width
- 35 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 3666916070383
- SAP 1000651970
- Code 8210270
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL2E30H076NWC Safety Light Curtain Type 2, 30 mm resolution, hand detection, 760 mm protected height
Telemecanique
Telemecanique OsiSense XS8E1A1MAL01U20 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, 2-Wire AC/DC, NO, screw terminals
Telemecanique
Telemecanique XS518B1DBM12 Optimum Inductive Proximity Sensor Ø18 mm, DC 2-Wire NC, M12 connector
Telemecanique
Telemecanique XMLRM01G1N25 Pressure Sensor with Display, 0–1 bar, 4–20 mA + 1× NPN
Telemecanique
Telemecanique ZCP29M12 Limit Switch Body, Plastic, 1 NO + 1 NC
Telemecanique
Telemecanique XUK1ARCNL2 Photoelectric Sensor, Retroreflective, AC/DC supply, relay NO/NC, 2 m cable
Telemecanique
Telemecanique XUSL2E30H091NWH Safety Light Curtain Type 2, 30 mm resolution, hand detection, 910 mm protected height
Telemecanique
Telemecanique XUB5BNANL2 Photoelectric Sensor M18, Metal, NPN, 2 m cable
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
