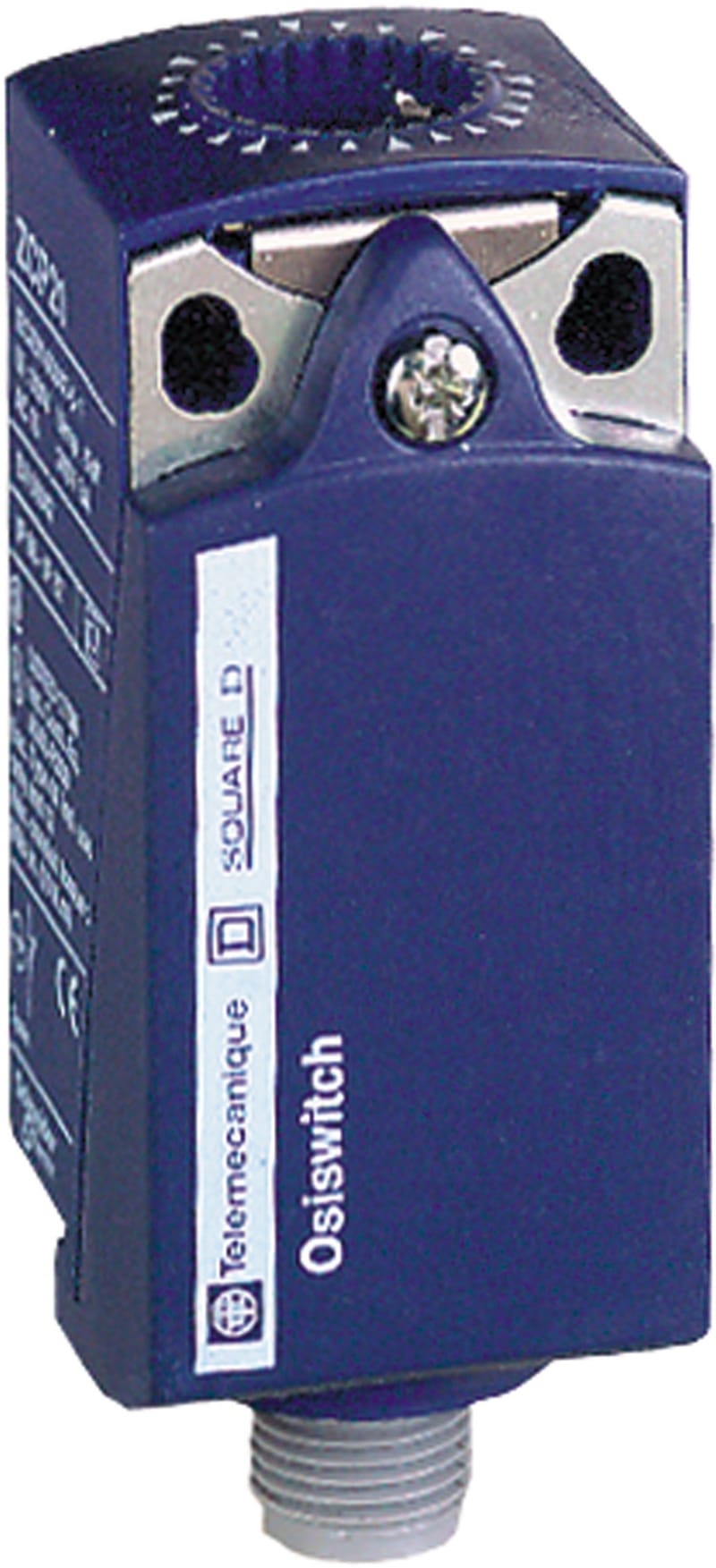

Telemecanique ZCP29M12 Limit Switch Body, Plastic, 1 NO + 1 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCP29M12 plastic limit switch body (contact body) for the ZCP compact programme, 1 NO + 1 NC contacts, combine with a ZCE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCP29M12
- EAN / GTIN
- 3666916092071
- Sales unit
- pcs
- Package quantity
- 77 pcs
- Contact configuration
- NO / NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Connector M12
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916092071
- SAP 1000341098
- Code 8990951
Product Documentation
