Telemecanique XCKN2921P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKN2921P20 limit switch (position switch), plunger actuator, 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKN2921P20
- EAN / GTIN
- 3666916054710
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 94 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916054710
- SAP 1000031700
- Code 8740253
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLR400M1N75 Pressure Sensor with Display, 0–400 bar, 0–10 V + 1× NPN
Telemecanique
Telemecanique XMLR016G1P75 Pressure Sensor with Display, 0–16 bar, 0–10 V + 1× PNP
Telemecanique

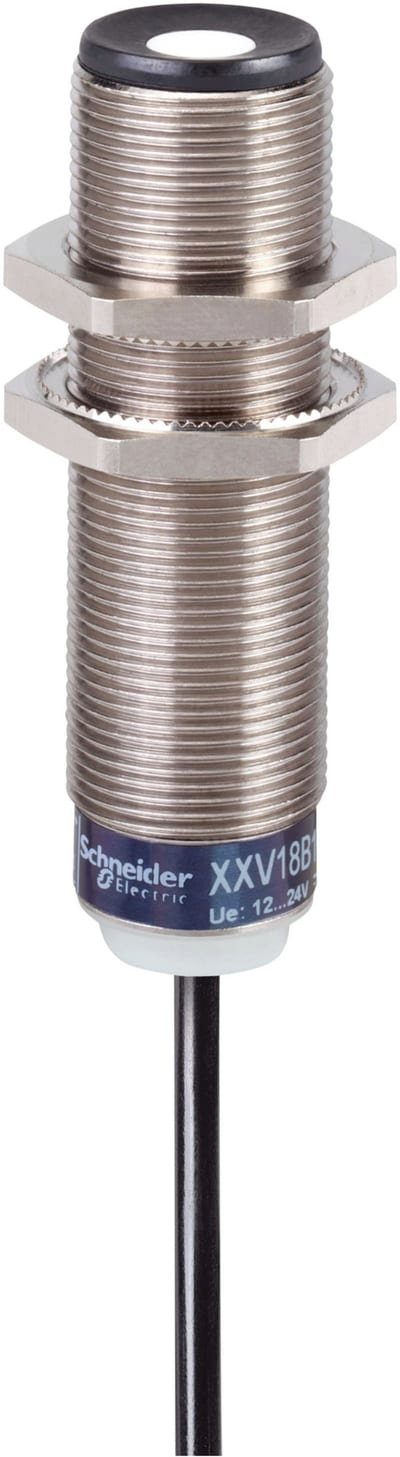

Telemecanique XXV18B1PAL2 Ultrasonic Sensor M18, Metal, PNP, NO, Range 2 m, 2 m cable
Telemecanique
Telemecanique XMLP6K0PD130 Pressure Transmitter, 0–6000 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique XUSL4E30H046L Safety Light Curtain Type 4, Hand Detection (30 mm), 460 mm Height
Telemecanique

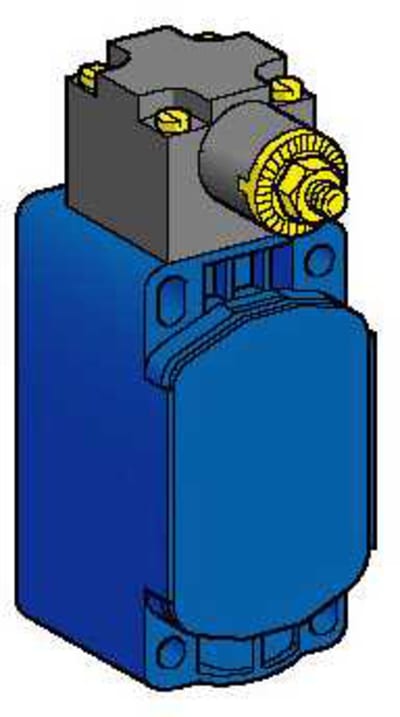

Telemecanique ZCKS404 Limit Switch Body for ZCK Limit Switches
