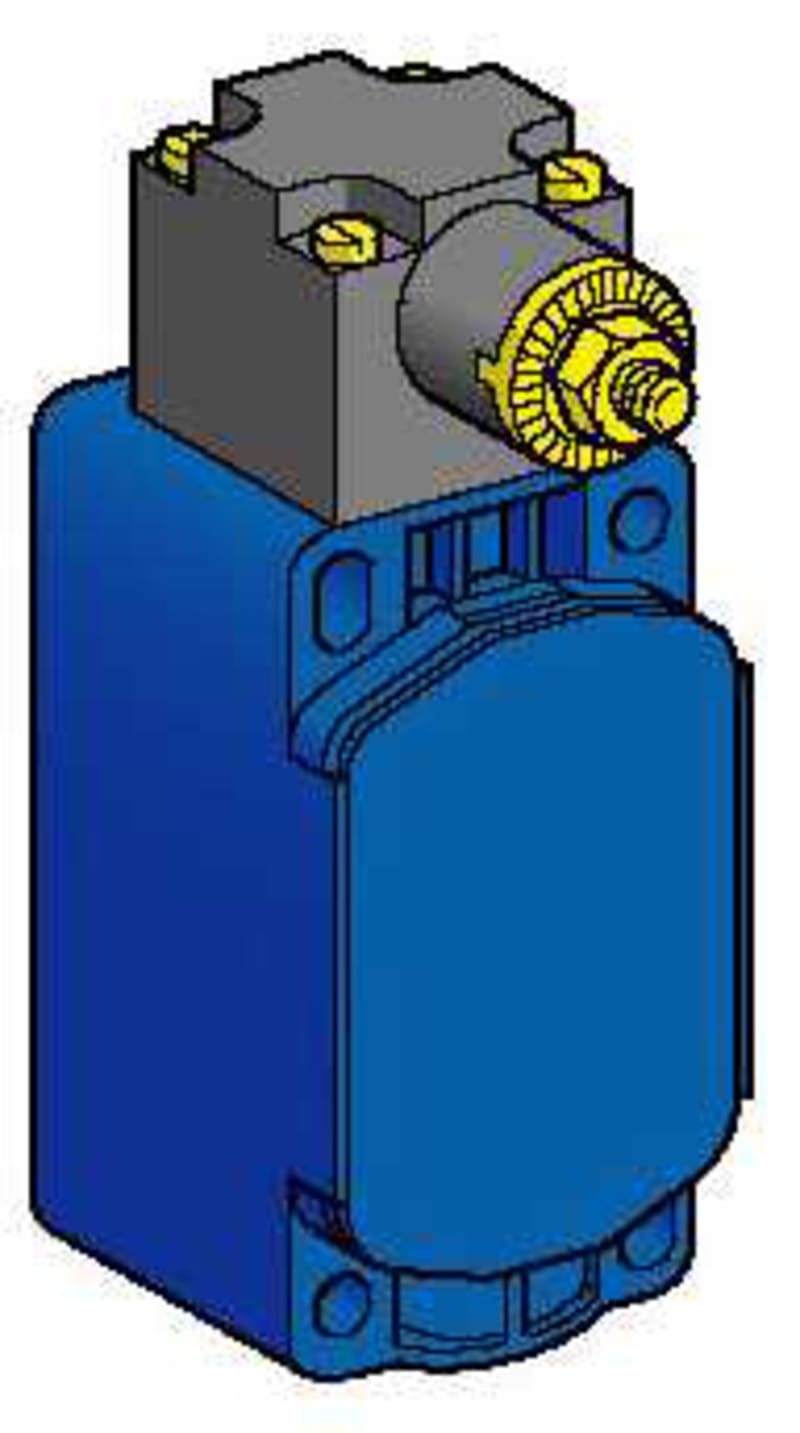

Telemecanique ZCKS404 Limit Switch Body for ZCK Limit Switches
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKS404 limit switch body (contact body) for ZCK limit switches; combine with a ZCKD/ZCKE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKS404
- EAN / GTIN
- 3666916043424
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 99 mm
- Length of sensor
- 57 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as change-over contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043424
- SAP 1000254365
- Code 81135924
Product Documentation
More from Telemecanique
Telemecanique

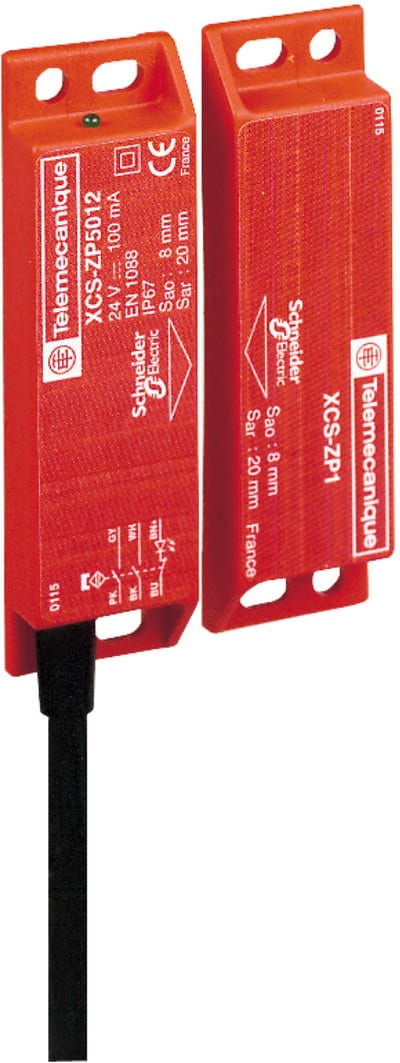

Telemecanique XCSDMP7015 Coded Magnetic Safety Switch, 2 NO + 1 NC, with LED
Telemecanique

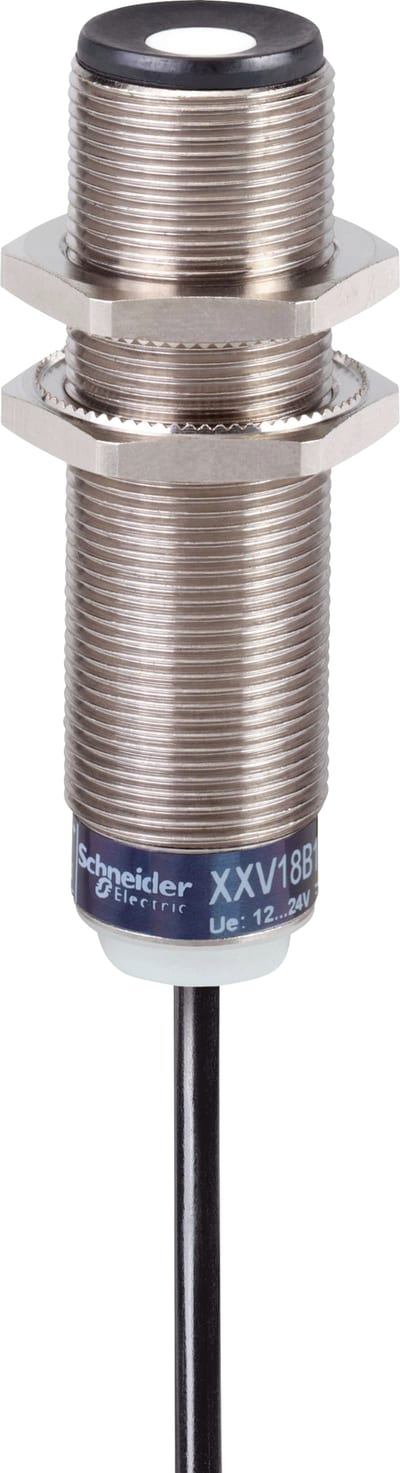

Telemecanique XXV18B1NAL2 Ultrasonic Sensor M18, Metal, NPN, NO, Range 2 m, 2 m cable
Telemecanique

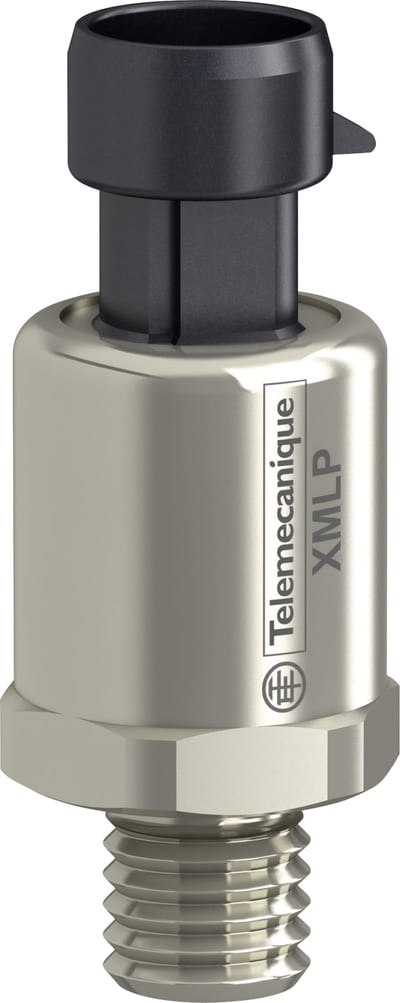

Telemecanique XMLP600PP230Q Pressure Transmitter, 0–600 psi, 0.5–4.5 V ratiometric, 1/4" NPT, Packard connector
Telemecanique

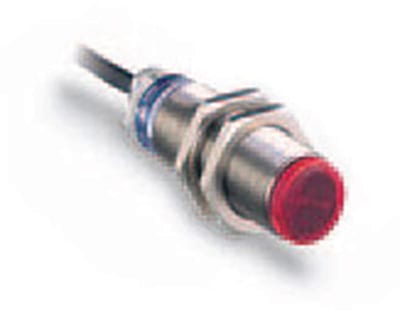

Telemecanique XU9N18PP341WD Photoelectric Sensor Ø18 mm, Polarised Reflex, Stainless Steel, 90° Optics, M12
Telemecanique

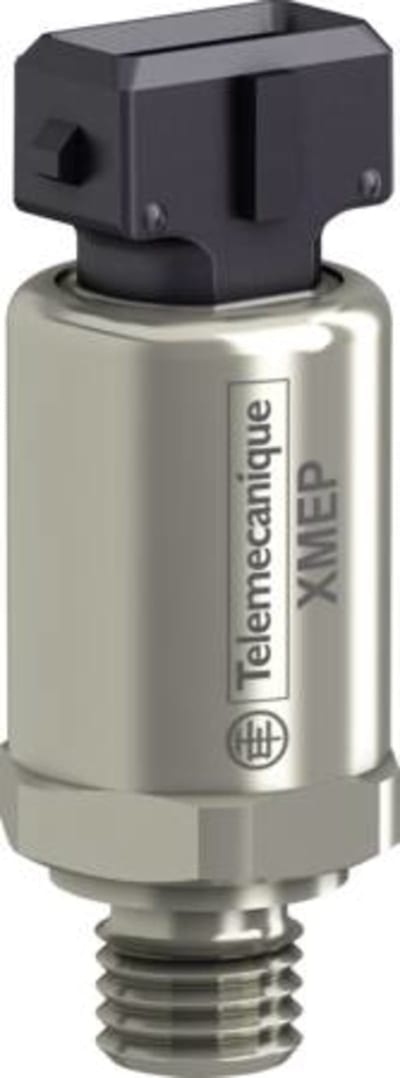

Telemecanique XMEP400BJ11F Pressure Transmitter, 0–400 bar, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
