Telemecanique XCKM106 Limit Switch, Metal Body, 1 NO + 1 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKM106 limit switch (position switch), metal body, 1 NO + 1 NC contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCKM106
- EAN / GTIN
- 3666916057469
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- 1 NO + 1 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Spring-rod
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916057469
- SAP 1000056708
- Code 8894250
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUX8AKSAM12 Photoelectric Sensor, Background Suppression, Plastic, PNP/NPN selectable, M12 connector
Telemecanique
Telemecanique XZCC12MDM50B Field-Wireable Connector, M12, Male, Straight, 5-pin, Metal
Telemecanique
Telemecanique XUSZAST4PPS Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XCSE7311 Safety Limit Switch
Telemecanique
Telemecanique OsiSense XS630B1NAL10 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, NPN, NO, pre-wired cable
Telemecanique
Telemecanique XUSZAMT2XT Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XY2CEDA296H7 Emergency Stop Rope Pull Switch, Double-Sided, NPT Entry, 2 × 100 m Rope
Telemecanique

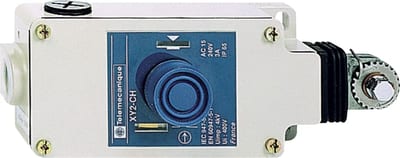

Telemecanique XY2CH13290H7 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, 1/2" NPT entry
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKM106?
- XCKM106 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKM106.
- What is the HS code for XCKM106?
- The customs tariff (HS) code for XCKM106 is 8536.90.
- Who manufactures XCKM106?
- XCKM106 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKM106?
- Yes — the XCKM106 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKM106?
- The minimum order quantity is 1.
- Is XCKM106 available?
- Yes — XCKM106 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
