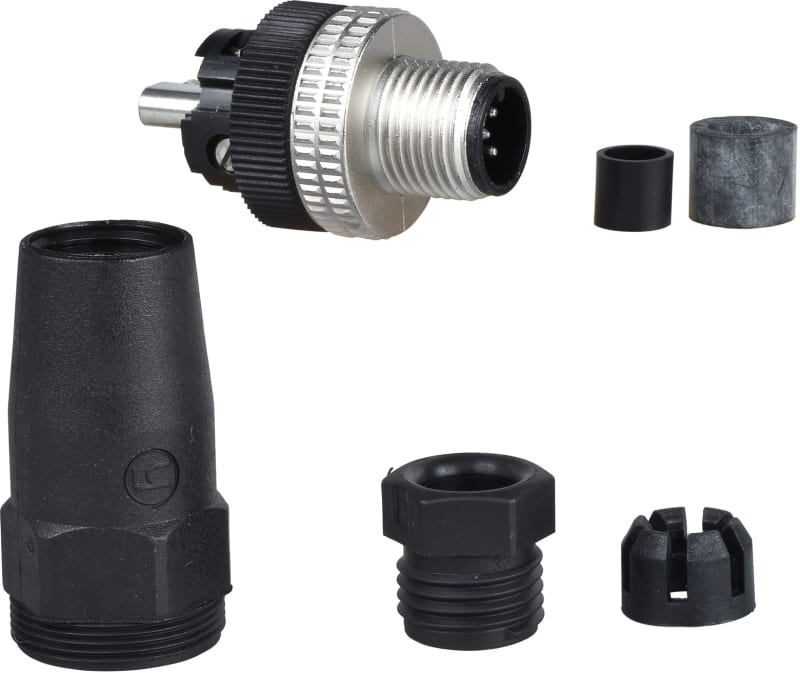

Telemecanique XZCC12MDM50B Field-Wireable Connector, M12, Male, Straight, 5-pin, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC12MDM50B field-wireable (user-attachable) connector, M12 male straight, 5-pin, metal body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC12MDM50B
- EAN / GTIN
- 3666916069943
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M12
- Contact type
- Pin
- Diameter connector
- 12 mm
- Thread size M
- 12
- Number of data contacts
- 5
- For cable outer diameter
- 7 mm
- Type of housing
- Straight
- Rated current In
- 3 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 30 V
- Connectable conductor cross section solid-core
- 0–75 mm²
- Connectable conductor cross section multi-wired
- 0–75 mm²
- Type of electric connection
- Screw connection
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069943
- SAP 1000257278
- Code 8139957
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSZAST4PPS Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XCSE7311 Safety Limit Switch
Telemecanique
Telemecanique OsiSense XS630B1NAL10 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, NPN, NO, pre-wired cable
Telemecanique
Telemecanique XUSZAMT2XT Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XY2CEDA296H7 Emergency Stop Rope Pull Switch, Double-Sided, NPT Entry, 2 × 100 m Rope
Telemecanique
Telemecanique XY2CH13290H7 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, 1/2" NPT entry
Telemecanique
Telemecanique XCSPA893 Safety Limit Switch, 1 NC + 1 NO
Telemecanique
Telemecanique XUSL4E30H061NM Safety Light Curtain Type 4, Hand Detection (30 mm), 610 mm Height
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XZCC12MDM50B?
- XZCC12MDM50B can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XZCC12MDM50B.
- What is the HS code for XZCC12MDM50B?
- The customs tariff (HS) code for XZCC12MDM50B is 8536.90.
- Who manufactures XZCC12MDM50B?
- XZCC12MDM50B is a Telemecanique product in the Cables & Wiring range.
- Is a datasheet available for XZCC12MDM50B?
- Yes — the XZCC12MDM50B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XZCC12MDM50B?
- The minimum order quantity is 1.
- Is XZCC12MDM50B available?
- Yes — XZCC12MDM50B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
