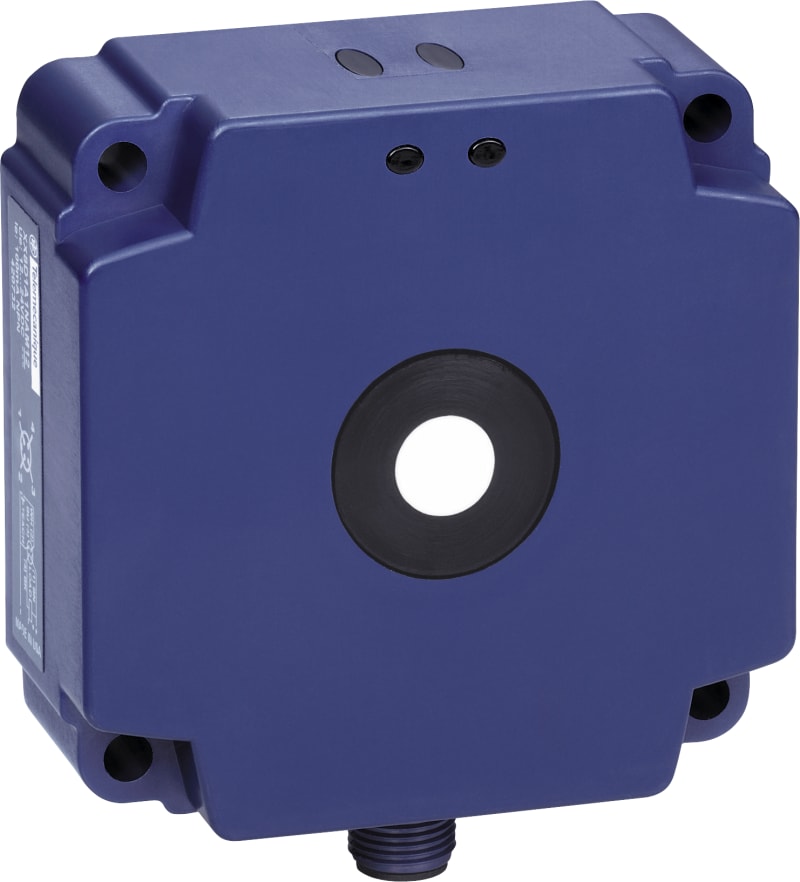

Telemecanique XX9D1A1F1M12 Ultrasonic Sensor, Sn 1 m, 0–10 V, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX9D1A1F1M12 OsiSense XX ultrasonic proximity sensor, Sn 1 m, 0–10 V output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX9D1A1F1M12
- EAN / GTIN
- 3666916080429
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 13 pcs
- Voltage type
- DC
- Housing material
- Plastic
- Ambient temperature
- 0–70 °C
- Type of analogy output
- 0 V ... 10 V
- Type of electric connection
- Connector M12
- Blind zone
- 100 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Standard for interfaces
- Analogue
- No-load current
- 60 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0.9 %
- Synchronisation possible
- No
- Supply voltage
- 15–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Height of sensor
- 80 mm
- Length of sensor
- 80 mm
- Adjustable distance
- 100–1000 mm
- Measuring range length
- 100–1000 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916080429
- SAP 1000011826
- Code 8110154
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS1N30PA349SBTF Inductive Sensor M30, PNP NO, 12–24 V, Low Temperature
Telemecanique
Telemecanique XUX8AKSAT16 Photoelectric Sensor, Background Suppression, Plastic, PNP/NPN selectable, M12 connector
Telemecanique
Telemecanique XCMD2102L3 Limit Switch, Metal Roller Plunger
Telemecanique
Telemecanique XUK9ARCNL10 Photoelectric Sensor, Polarised Retroreflective, AC/DC supply, relay, 10 m cable
Telemecanique
Telemecanique ZCDEP16 Cable Entry M16 × 1.5 for ZCD Limit Switch Bodies
Telemecanique
Telemecanique XUM4APXBM8 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.17 m, PNP, M8 connector
Telemecanique
Telemecanique OsiSense XS608B1DBL2 Inductive Proximity Sensor — M8 barrel, Sn 2.5 mm, 2-Wire DC, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XUSL4E30H106NS1 Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XX9D1A1F1M12?
- XX9D1A1F1M12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XX9D1A1F1M12.
- What is the HS code for XX9D1A1F1M12?
- The customs tariff (HS) code for XX9D1A1F1M12 is 8536.90.
- Who manufactures XX9D1A1F1M12?
- XX9D1A1F1M12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XX9D1A1F1M12?
- Yes — the XX9D1A1F1M12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XX9D1A1F1M12?
- The minimum order quantity is 1.
- Is XX9D1A1F1M12 available?
- Yes — XX9D1A1F1M12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
