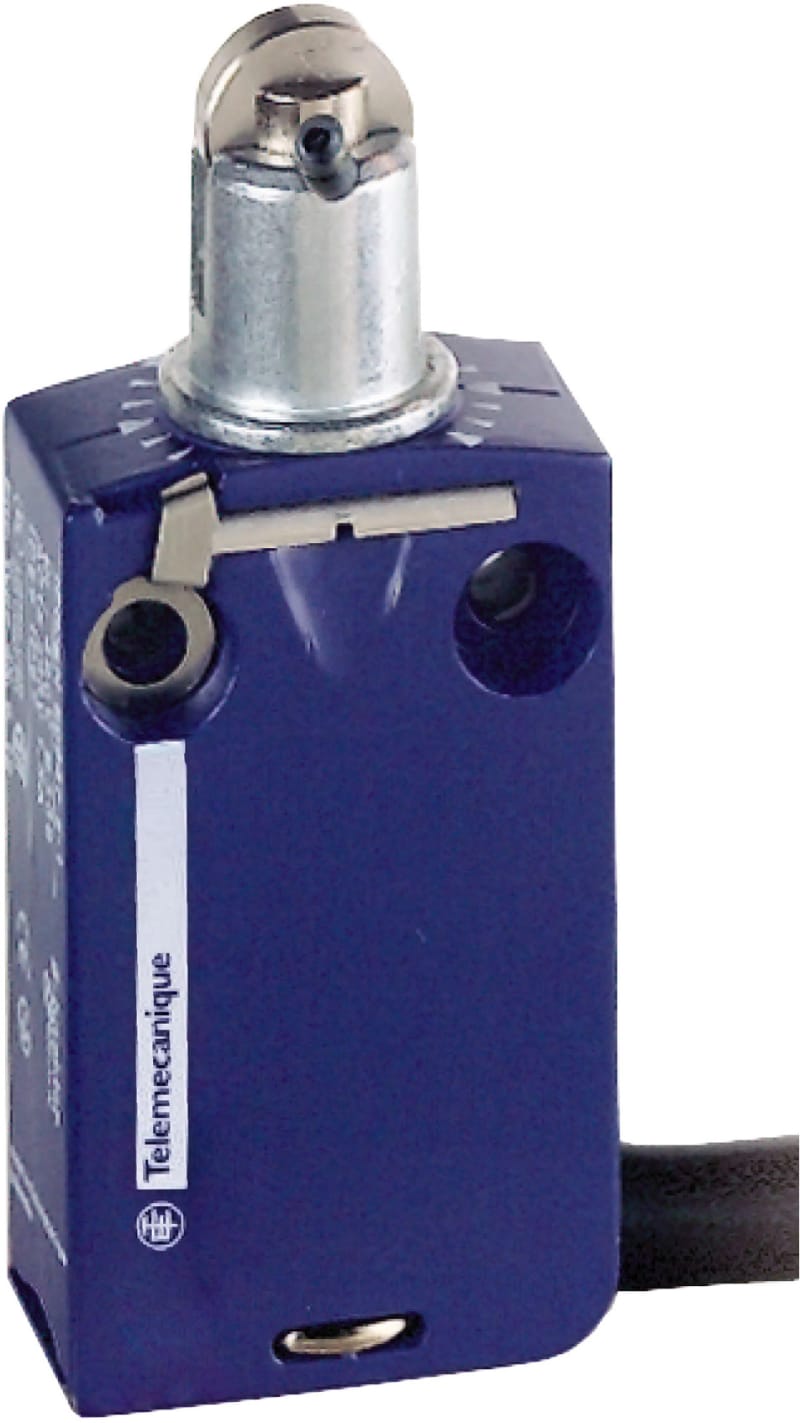

Telemecanique XCMD2102L3 Limit Switch, Metal Roller Plunger
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCMD2102L3 limit switch (position switch), metal roller plunger actuator.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2102L3
- EAN / GTIN
- 3666916093207
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093207
- SAP 1000254426
- Code 8222170
Product Documentation
