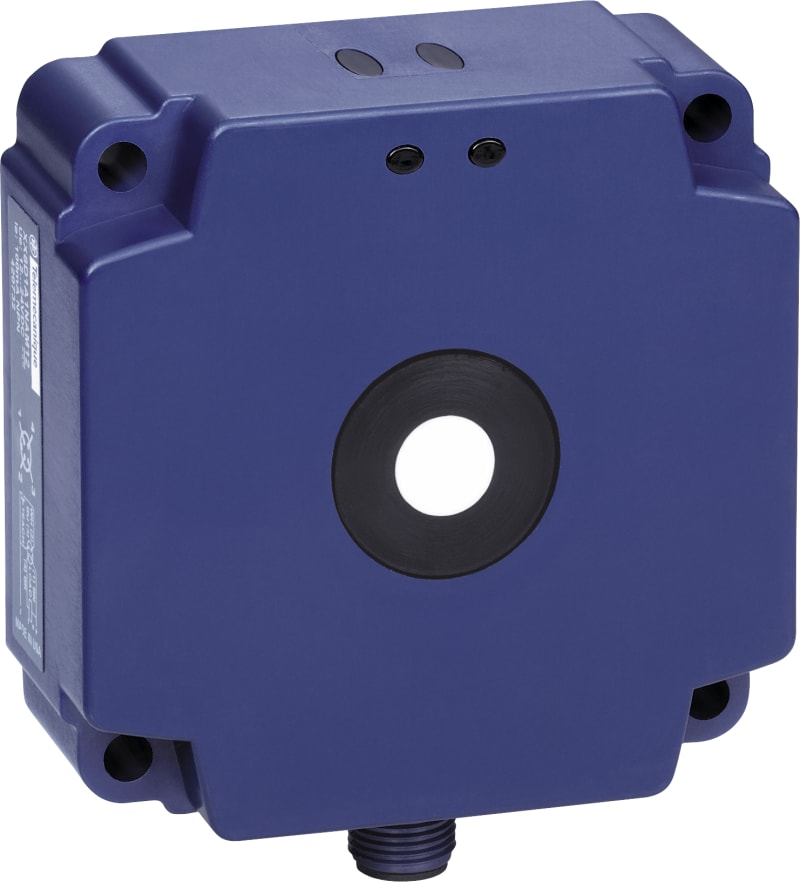

Telemecanique XX9D1A1C2M12 Ultrasonic Sensor, Sn 1 m, 4–20 mA, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX9D1A1C2M12 OsiSense XX ultrasonic proximity sensor, Sn 1 m, 4–20 mA output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX9D1A1C2M12
- EAN / GTIN
- 3666916080436
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 13 pcs
- Voltage type
- DC
- Housing material
- Plastic
- Ambient temperature
- 0–70 °C
- Type of analogy output
- 4 mA ... 20 mA
- Type of electric connection
- Connector M12
- Blind zone
- 100 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Standard for interfaces
- Analogue
- No-load current
- 60 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0.9 %
- Synchronisation possible
- No
- Supply voltage
- 15–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Height of sensor
- 80 mm
- Length of sensor
- 80 mm
- Adjustable distance
- 100–1000 mm
- Measuring range length
- 100–1000 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916080436
- SAP 1000056283
- Code 8540554
Product Documentation
