Telemecanique XCKJ161H7 Limit Switch, Metal Plunger, 1/2" NPT entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ161H7 limit switch (position switch), metal plunger actuator, 1/2" NPT entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ161H7
- EAN / GTIN
- 3666916056059
- HS code
- 8536.90
- Sales unit
- pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056059
- SAP 1000341795
- Code 8998231
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP400BD71F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique XZCP1541L1 Sensor Cable, M12 male straight, 4-pin, 1 m
Telemecanique

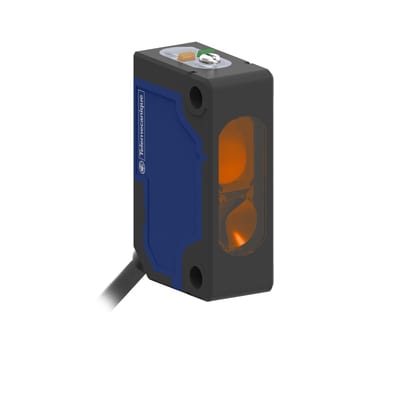

Telemecanique XUM6ANXBL2 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.8 m, NPN, 2 m cable
Telemecanique

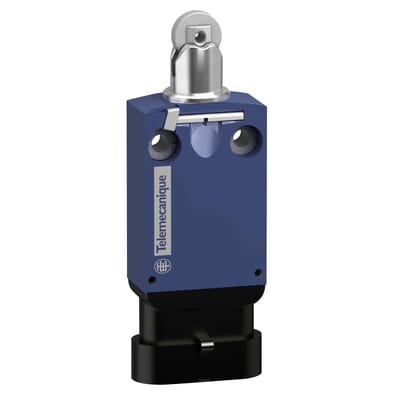

Limit switch with AMP connector (XCMD2102AM4)
