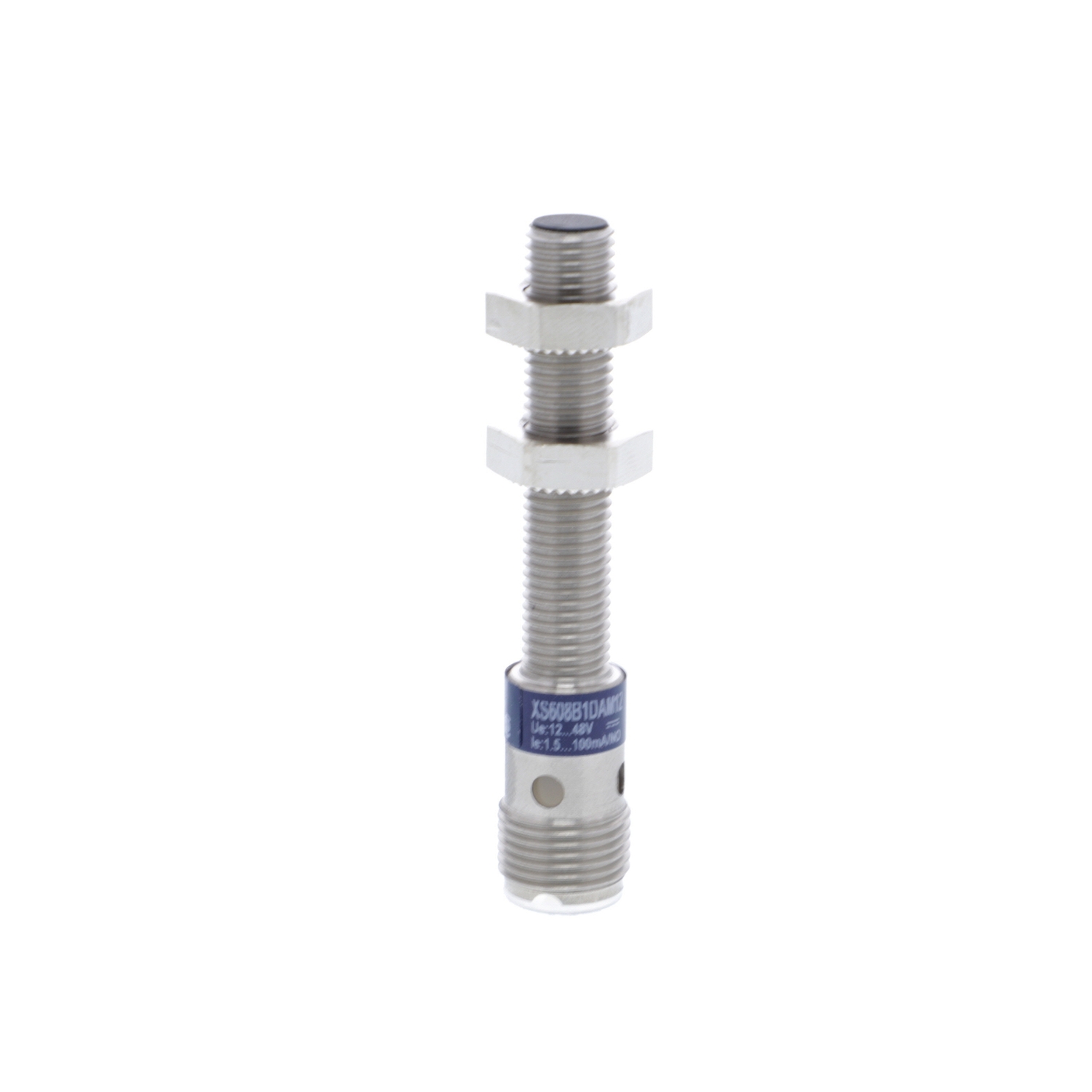

Telemecanique OsiSense XS608B1DAM12 Inductive Proximity Sensor — M8 barrel, Sn 2.5 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS608B1DAM12 is an OsiSense XS inductive proximity sensor in an M8 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 2.5 mm. It provides a 2-wire DC output, switching NO (normally open), via M12 connector (4-pin). Rated supply 12…48 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS608B1DAM12
- EAN / GTIN
- 3666916013328
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M8 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 2.5 mm
- Output
- 2-wire DC
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 12…48 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 22 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916013328
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUDA1PSML2 Fibre-Optic Sensor Amplifier, PNP NO/NC, 2 m Cable
Telemecanique
Telemecanique XMLP2D5GD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique
Telemecanique ZC2JE09 Limit Switch Operating Head, Rotating axis
Telemecanique
Telemecanique XUB9BNANM12 Photoelectric Sensor, Polarised Reflex, Metal, NPN, NO, M12 connector
Telemecanique
Adapter Bracket for XSD
XSZBD10
Telemecanique
Telemecanique XCSDMR79010 Coded Magnetic Safety Switch, Cylindrical M30, NO+NO, 10 m cable
Telemecanique
Telemecanique OsiSense XS7G12PC440 Inductive Proximity Sensor — flat rectangular, Sn 2 mm, PNP, NO or NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XUK0ARCTL10 Multimode Photoelectric Sensor, Plastic, AC/DC Multi-Voltage, Relay Output, 10 m cable
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS608B1DAM12?
- XS608B1DAM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS608B1DAM12.
- What is the HS code for XS608B1DAM12?
- The customs tariff (HS) code for XS608B1DAM12 is 8536.50.
- Who manufactures XS608B1DAM12?
- XS608B1DAM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS608B1DAM12?
- Yes — the XS608B1DAM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS608B1DAM12?
- The minimum order quantity is 1.
- Is XS608B1DAM12 available?
- Yes — XS608B1DAM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
