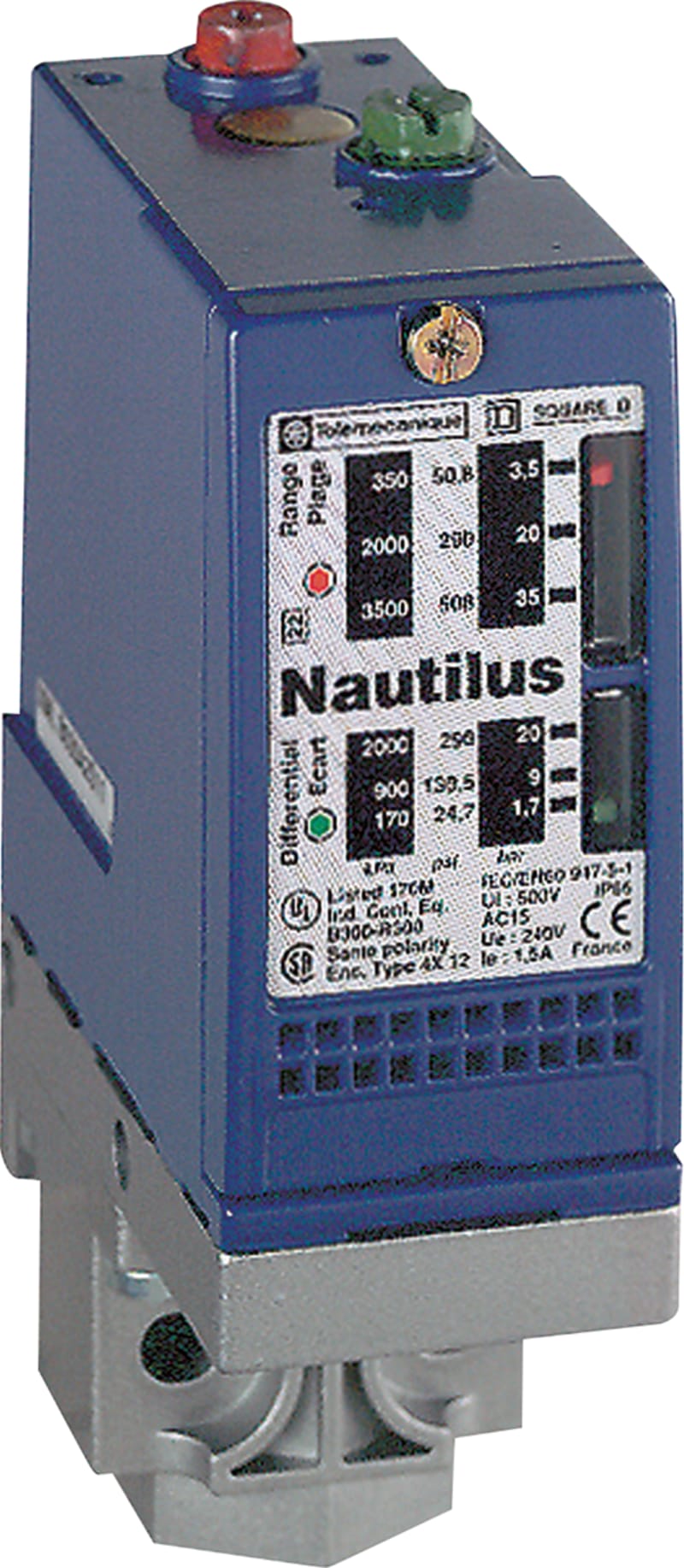

Telemecanique XMLB500D2S12 Pressure Switch, 30–500 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLB500D2S12 OsiSense XMLB electromechanical pressure switch, adjustable range 30–500 bar.
Technical Specifications
- Manufacturer part number (MPN)
- XMLB500D2S12 EAN / GTIN: 3666916024980 Sales unit: pcs Pressure: 30-500 bar Measuring range: 30–500 bar Width: 35 mm Height: 113 mm Depth: 75 mm With display: No With manual on/off switch: No Initial setting: 30000–500000 hPa End setting: 7000–447400 hPa Max. operation pressure: 625000 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 7–447.4 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 2250 bar Engaging pressure: 30–500 bar Electronic version: No Suitable as 2-point controller: Yes Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 1125 bar Medium temperature: 0–160 °C With hand operation: No Pressure-switching differential: 249.4 bar Max. operating pressure: 500000 hPa Country of origin: Czechia
Standards & Compliance
- HS Code
- 9032.20
Cross References
- EAN 3666916024980
- SAP 1000341849
- Code 8976532
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP001GL71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique
Telemecanique XUBTSPSNM12 Photoelectric Sensor M18, Retroreflective for Transparent Objects, PNP, M12 connector
Telemecanique
Telemecanique XZCPV0666L5 Sensor Cable, M8 female, 3-pin, PVC, 5 m
Telemecanique
Telemecanique XUB9APANL2 Laser Photoelectric Sensor, Polarised Reflex, Plastic, PNP, NO, 2 m cable
Telemecanique
Telemecanique XCKD21H2P16 Limit Switch, Metal Roller Plunger, M16 entry
Telemecanique
Telemecanique XCSLF3737342 Safety Switch Guard Locking Metal 230 V 2NO+4NC
Telemecanique
Telemecanique XZCP0941L15 Sensor Cable, M8 female straight, 4-pin, 15 m
Telemecanique
Telemecanique XUSL4MA40H226N Type 4 Safety Light Grille with Integrated Muting, 2260 mm protected height
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XMLB500D2S12?
- XMLB500D2S12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XMLB500D2S12.
- What is the HS code for XMLB500D2S12?
- The customs tariff (HS) code for XMLB500D2S12 is 9032.20.
- Who manufactures XMLB500D2S12?
- XMLB500D2S12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XMLB500D2S12?
- Yes — the XMLB500D2S12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XMLB500D2S12?
- The minimum order quantity is 1.
- Is XMLB500D2S12 available?
- Yes — XMLB500D2S12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
