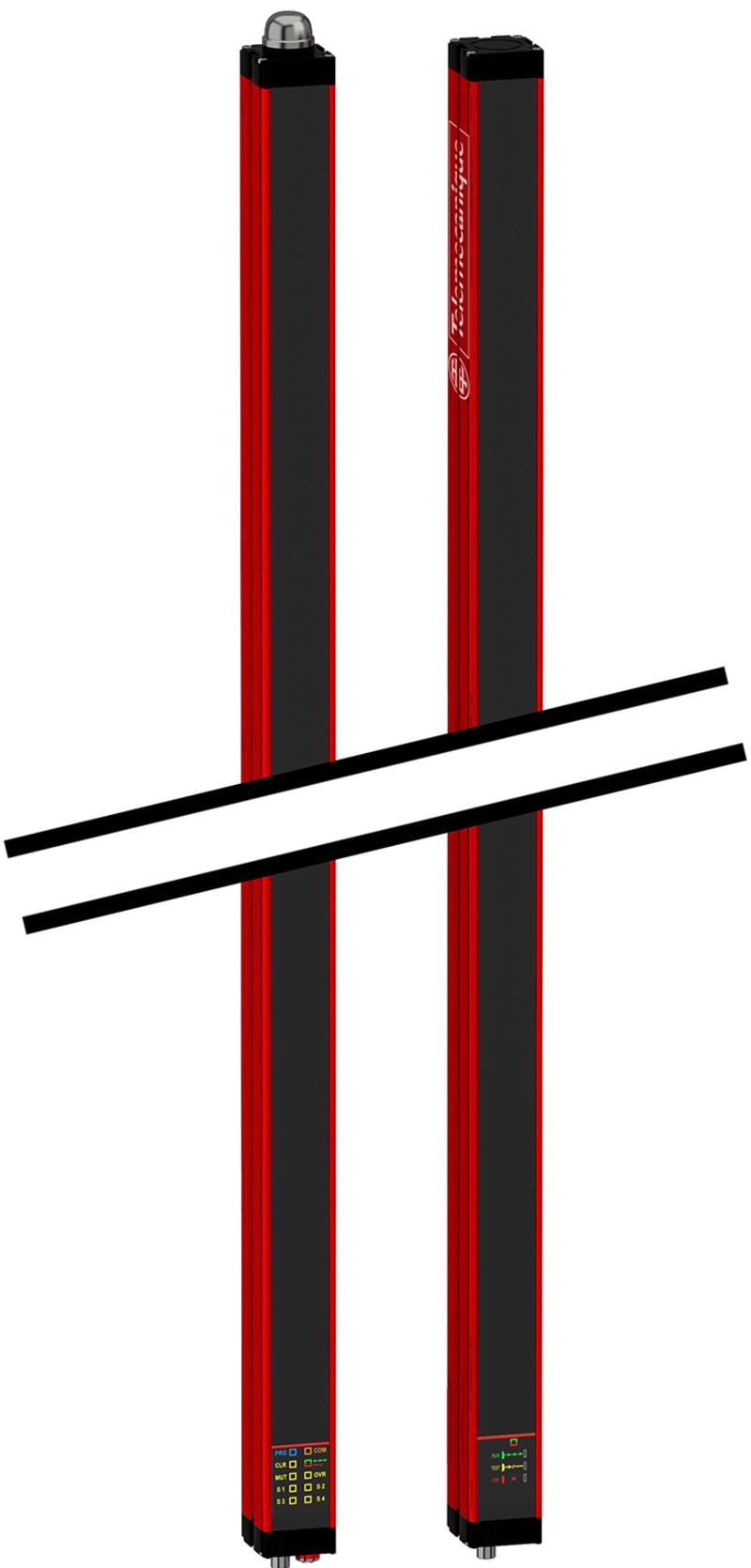

Telemecanique XUSL4MA40H226N Type 4 Safety Light Grille with Integrated Muting, 2260 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4MA40H226N type 4 safety light grille with integrated muting function, 2260 mm protected height, for conveyor and palletiser openings where material must pass but persons must be detected.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4MA40H226N
- EAN / GTIN
- 3666916027387
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 50 mm
- Height of sensor
- 2370 mm
- Length of sensor
- 55 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- With muting function
- Yes
- Override possible
- No
- Response time
- 20.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 2260 mm
- Type of safety according to IEC 61496-1
- 4
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP67
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027387
- SAP 1200357445
- Code 82360748
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XPEZ911 Protective Cover for XPE Foot Switches
Telemecanique
Telemecanique XMLR025G0T26 Pressure Sensor with Display, 0–25 bar, 4–20 mA
Telemecanique
Telemecanique OsiSense XS112BLPBL2 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XCKS139 Limit Switch, Plastic Body, 1 NO + 1 NC
Telemecanique
Telemecanique OsiSense XS8D1A1PAL5 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, PNP, NO, pre-wired cable
Telemecanique
Limit switch, rotary roller/arm NO+NC PG11
XCNR2118G11
Telemecanique
Telemecanique ZB6DF4 Illuminated Pushbutton Head, Red, for LED Module, Harmony XB6
Telemecanique
Telemecanique XUK1ANANL2 Photoelectric Sensor, Retroreflective, NPN NO, 2 m cable
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUSL4MA40H226N?
- XUSL4MA40H226N can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUSL4MA40H226N.
- What is the HS code for XUSL4MA40H226N?
- The customs tariff (HS) code for XUSL4MA40H226N is 8536.50.
- Who manufactures XUSL4MA40H226N?
- XUSL4MA40H226N is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XUSL4MA40H226N?
- Yes — the XUSL4MA40H226N datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUSL4MA40H226N?
- The minimum order quantity is 1.
- Is XUSL4MA40H226N available?
- Yes — XUSL4MA40H226N is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
