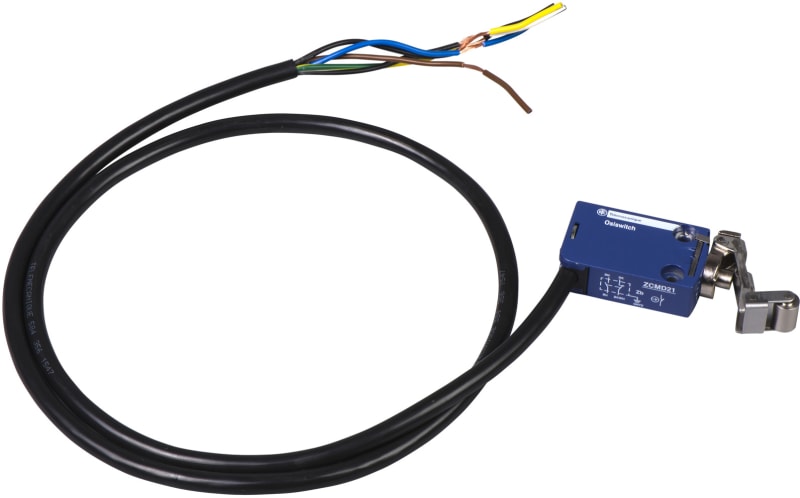

Telemecanique XCMD2124L1 Limit Switch, Spring-Return Lever Plunger, Metal Body, 1 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XCMD2124L1 limit switch with spring-return lever plunger actuator, snap-action contacts, metal body, 1 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2124L1
- EAN / GTIN
- 3666916093023
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 55 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093023
- SAP 1000340419
- Code 8989107
Product Documentation
More from Telemecanique
Telemecanique

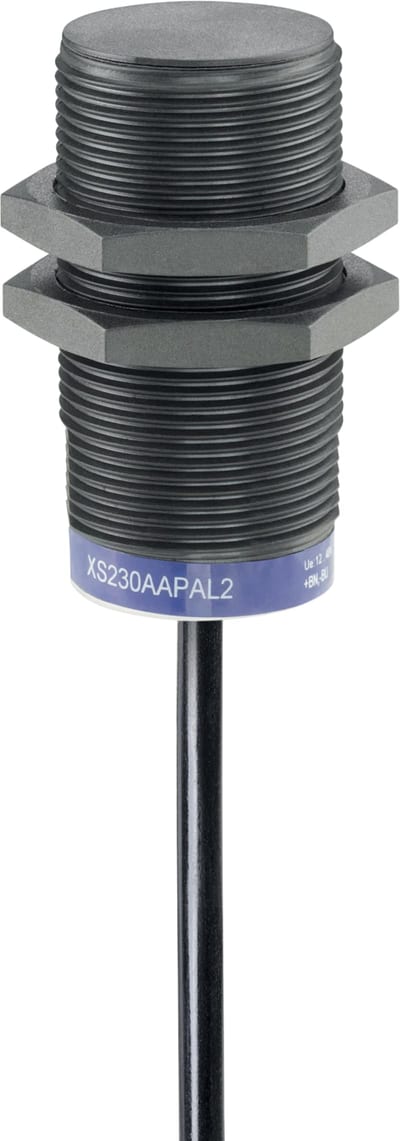

Telemecanique OsiSense XS230AAPAL2 Inductive Proximity Sensor — M30 barrel, Sn 22 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XZCP53P11L10 Sensor Cable, M12 female, 8-pin, 10 m
Telemecanique
Telemecanique XMEP7K5PT230 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique

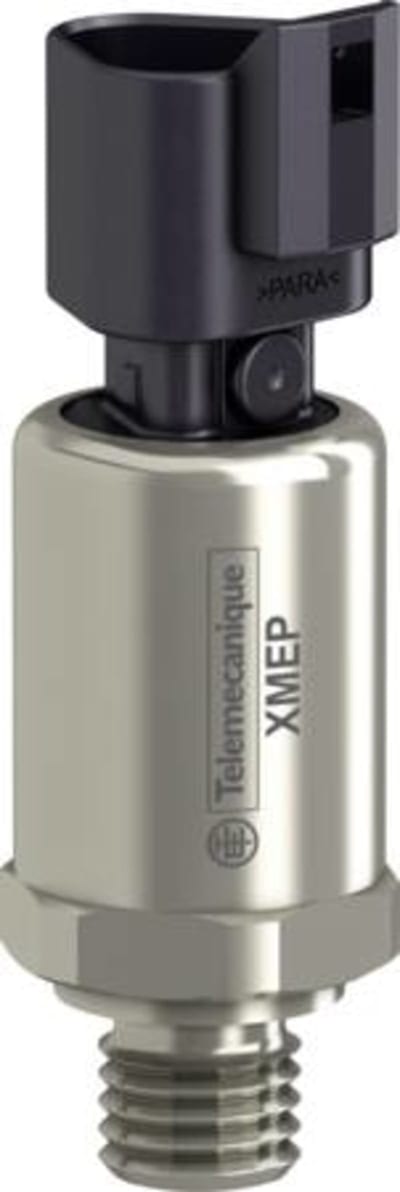

Telemecanique XMEP5K0PT130 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUSL4E30H106N Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Telemecanique

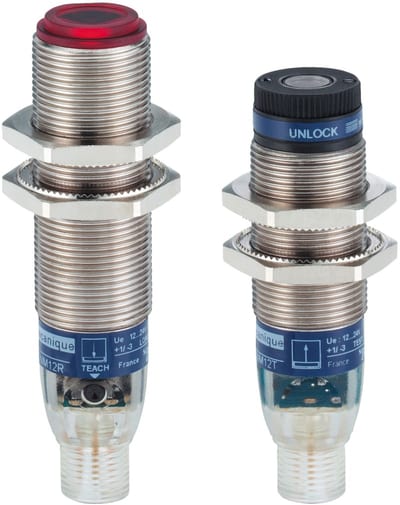

Telemecanique XUBLBPCNM12 Laser Photoelectric Sensor M18, Metal, PNP, M12 connector
Telemecanique

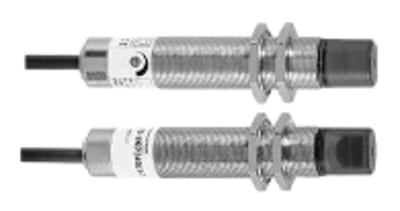

Telemecanique XU2S18PP340WL5 Photoelectric Through-Beam Set Ø18 mm, 90° Optics, Sn 8 m, 5 m Cables
Telemecanique

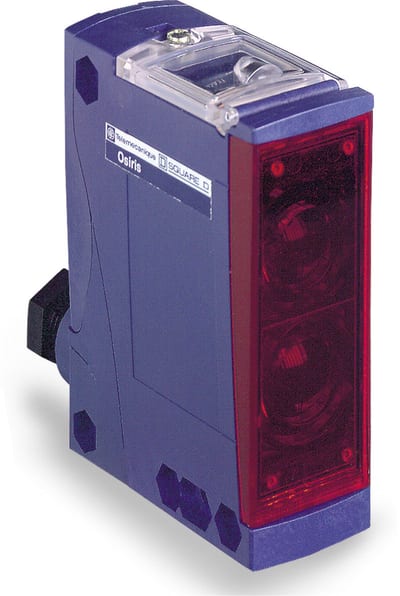

Telemecanique XUX1APANT16 Photoelectric Sensor, Retroreflective, PNP NO, screw terminals
