Photoelectric Sensor TOF 2Q PNP/NPN
Pricing
Request a quote
We reply within 24 hours
Product Description

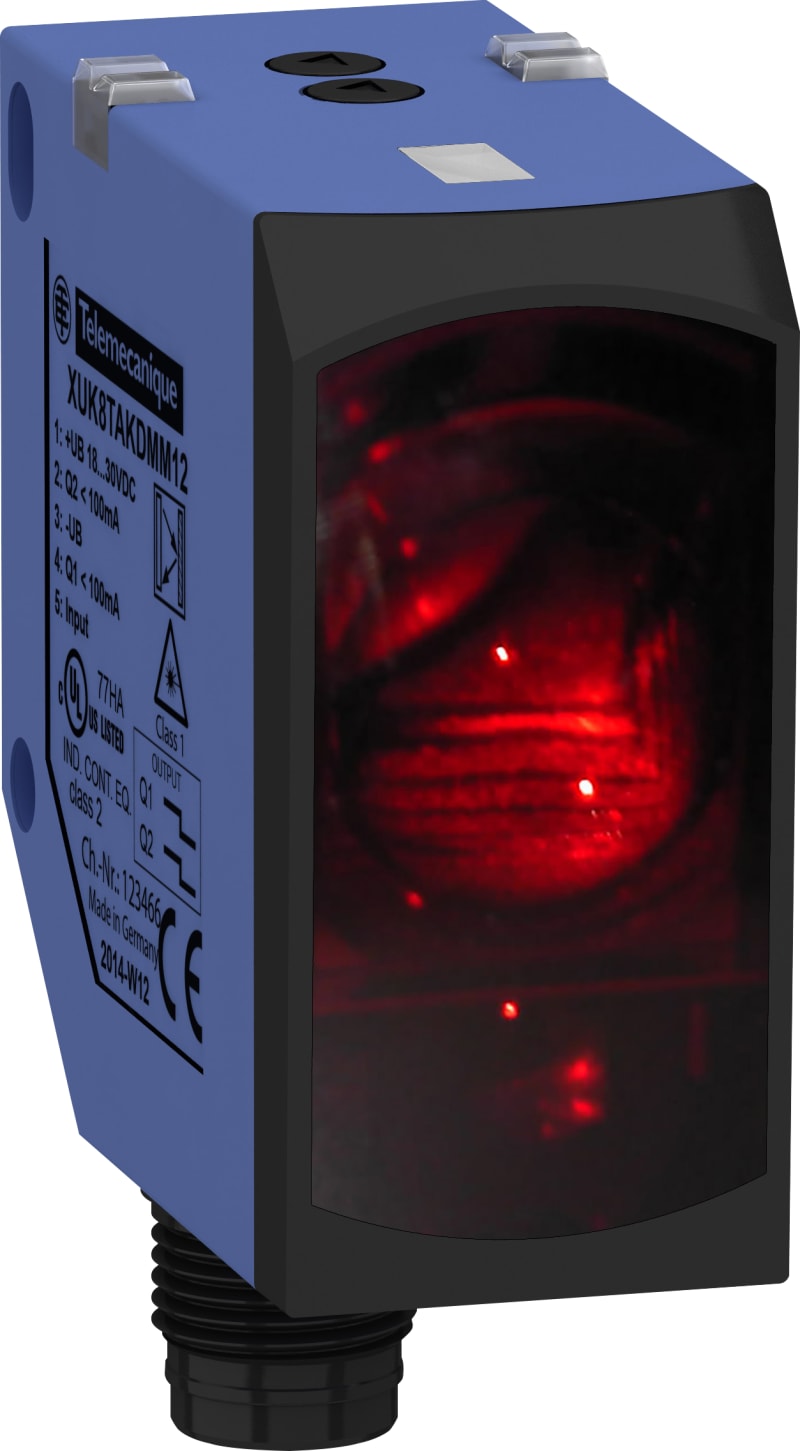

Telemecanique XUK8TAKDMM12 Photoelectric sensor with TOF. 2Q auto PNP/NPN output.
Technical Specifications
- Manufacturer part number (MPN)
- XUK8TAKDMM12
- EAN / GTIN
- 3666916037461
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Adjustment range
- 0–500 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 5000 mm
- Max. switching distance
- 500 mm
- Max. output current
- 60 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Construction type housing
- Cuboid
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -40–80 °C
- Response time
- 2 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- With monitoring function downstream switching devices
- No
- Laser protection class
- Class 1
- Type of light
- Laser diode, infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Operating distance
- 0–500 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916037461
- SAP 1000705111
- Code 8424110
Product Documentation
