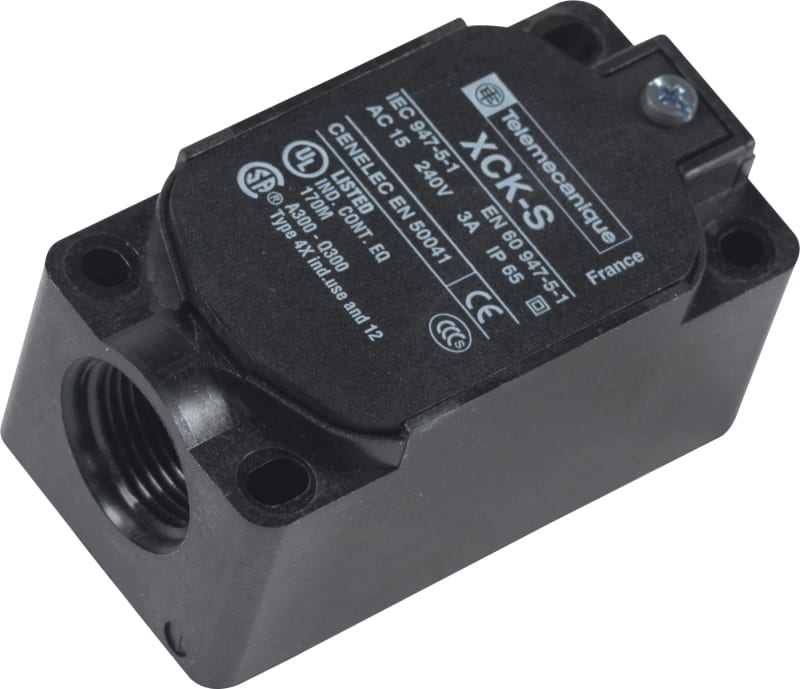

Telemecanique ZCKS2H29 Limit Switch Body, Plastic, 2NO+2NC, Snap-action, M20 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKS2H29 limit switch body (contact block), plastic housing, 2NO+2NC snap-action contacts, M20 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKS2H29
- EAN / GTIN
- 3666916043431
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Contact configuration
- 2 NO + 2 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 73 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Number of contacts as change-over contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043431
- SAP 1000341951
- Code 8376787
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XXS30B1PM12 Ultrasonic Sensor, M30, Sn 1 m, PNP, M12 connector
Telemecanique
Telemecanique XUYFANEP100030 Infrared Fork Sensor 95 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XUSL4E14F046NS2 Safety Light Curtain Type 4, Finger Detection (14 mm), 460 mm Height
Telemecanique
Telemecanique XUSL4E14F046NM Safety Light Curtain Type 4, Finger Detection (14 mm), 460 mm Height
Telemecanique
Telemecanique XMLB035A2S11 Pressure Switch, 3.5–35 bar, adjustable differential
Telemecanique
Telemecanique XMLR040G1P26 Pressure Sensor with Display, 0–40 bar, 4–20 mA + 1× PNP
Telemecanique

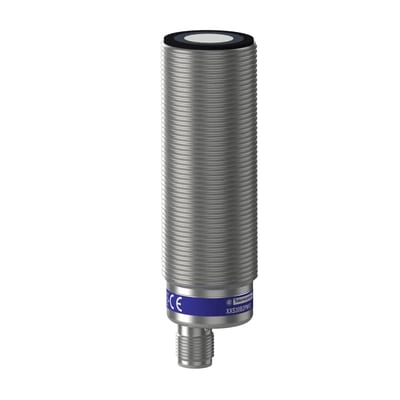

Telemecanique XXS30B2PM12 Ultrasonic Sensor, M30, Sn 2 m, PNP, M12 connector
Telemecanique

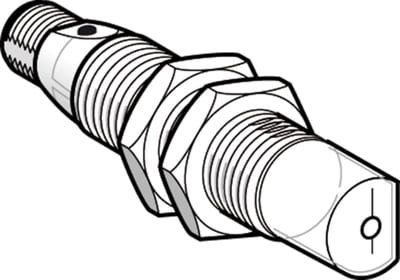

Telemecanique XUBTANSWM12 Photoelectric Sensor M18, Retroreflective for Transparent Objects, Plastic, NPN, M12 connector
