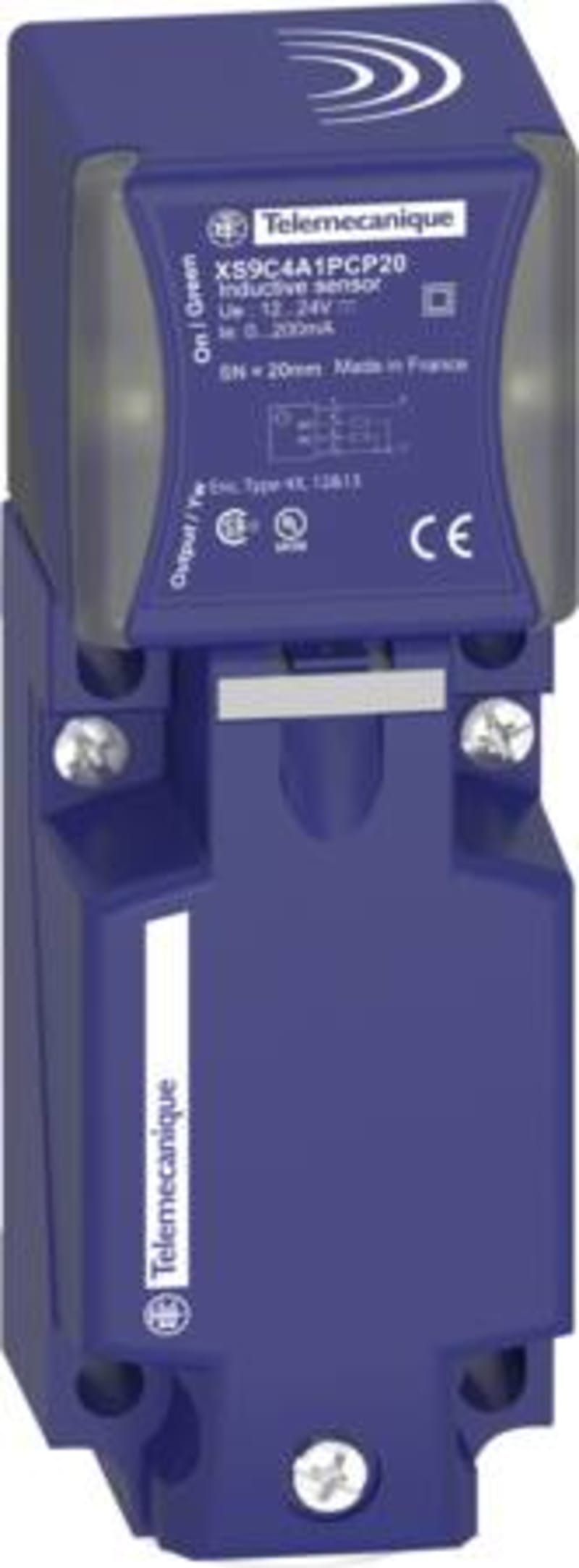

Telemecanique OsiSense XS9C4A1PCP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, PNP, NO or NC, screw terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS9C4A1PCP20 is an OsiSense XS inductive proximity sensor in a 40 × 40 × 117 mm PBT thermoplastic rectangular block housing, with a nominal sensing distance (Sn) of 20 mm. It provides a PNP (3-wire DC) output, switching NO or NC (programmable), via screw terminals. Operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS9C4A1PCP20
- EAN / GTIN
- 3666916010136
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- 40 × 40 × 117 mm rectangular block housing (PBT thermoplastic)
- Nominal sensing distance Sn
- 20 mm
- Output
- PNP (3-wire DC)
- Switching function
- NO or NC (programmable)
- Connection
- screw terminals
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 28 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- PBT thermoplastic
- Temperature Range
- -25 °C to +70 °C
- HS Code
- 8536.50
Cross References
- EAN 3666916010136
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS518B1MBU20 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, 2-Wire AC/DC, NC
Telemecanique
Telemecanique XZCR1501040G2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique ZCKJ5H29 Limit Switch, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XUSL4E30H031L Safety Light Curtain Type 4, Hand Detection (30 mm), 310 mm Height
Telemecanique

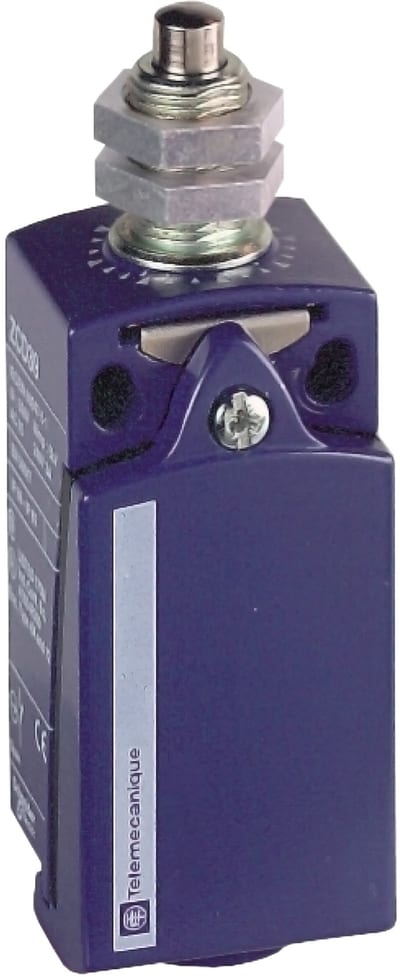

Telemecanique XCKD21H0P16 Limit Switch, Metal Plunger, M16 entry
Telemecanique

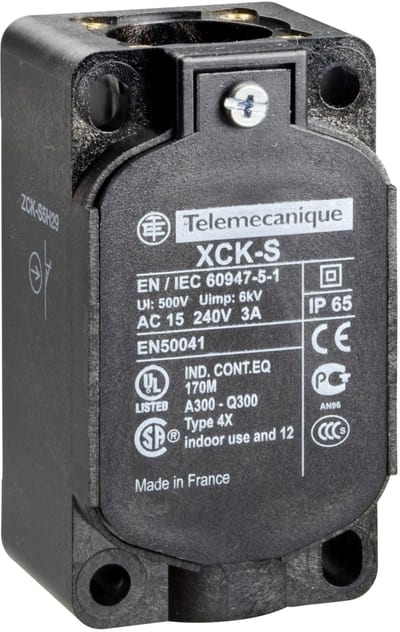

Telemecanique ZCKS5H29 Limit Switch Body, Plastic, NO+NC, Slow-break, M20 cable entry
