Telemecanique ZCKJ5H29 Limit Switch, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKJ5H29 limit switch (position switch), 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKJ5H29
- EAN / GTIN
- 3666916092132
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Contact configuration
- NO + NC
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916092132
- SAP 1000256805
- Code 8134394
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4E30H031L Safety Light Curtain Type 4, Hand Detection (30 mm), 310 mm Height
Telemecanique
Telemecanique XCKD21H0P16 Limit Switch, Metal Plunger, M16 entry
Telemecanique
Telemecanique ZCKS5H29 Limit Switch Body, Plastic, NO+NC, Slow-break, M20 cable entry
Telemecanique
Telemecanique OsiSense XS618B1NAL2 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, NPN, NO, pre-wired cable
Telemecanique
Telemecanique XMLR016G2P06 Pressure Sensor with Display, 0–16 bar, 2× PNP
Telemecanique
Telemecanique OsiSense XS518B1PBM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique

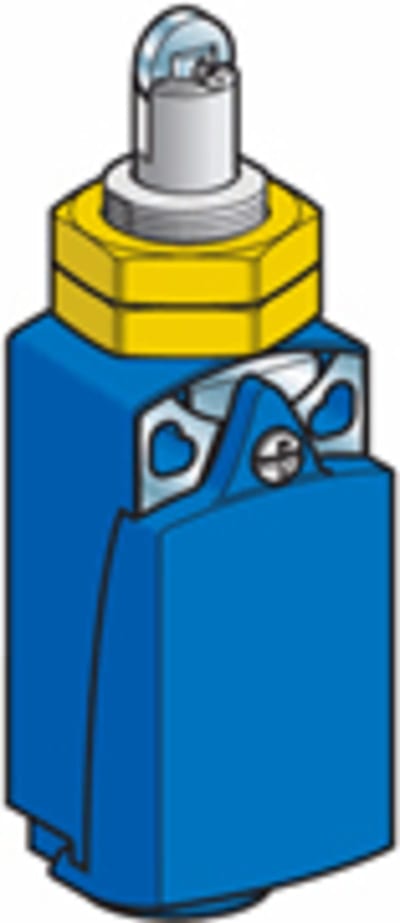

Telemecanique XCKD25H2P16 Limit Switch, Metal Roller Plunger, M16 entry
Telemecanique

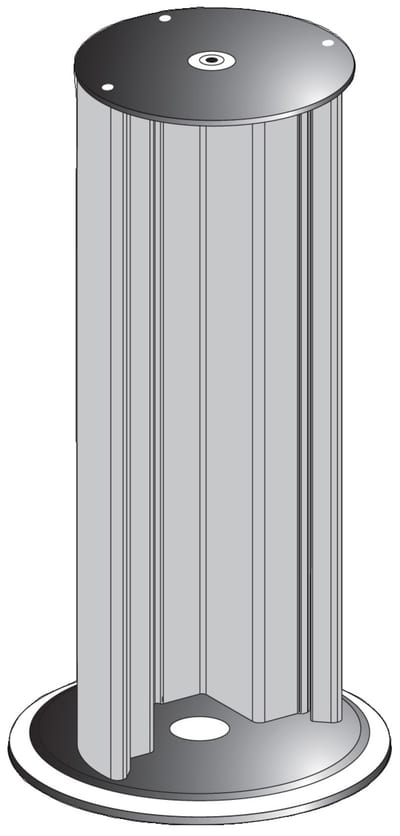

Telemecanique XUSZSC202 Mounting Column for Safety Light Curtains, 2020 mm
