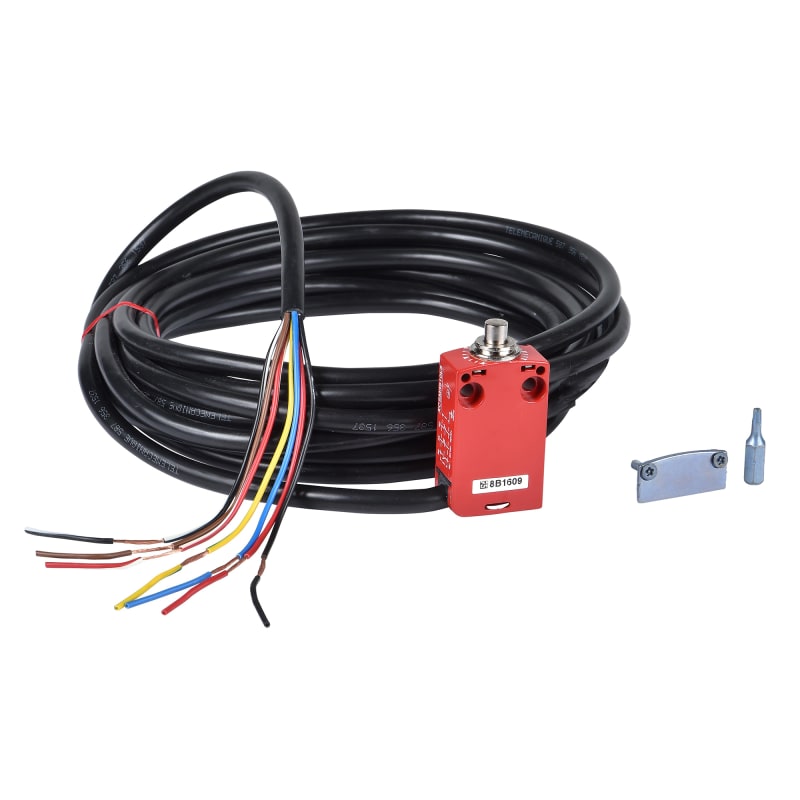

Telemecanique XCSM3710L1 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSM3710L1 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSM3710L1
- EAN / GTIN
- 3666916046739
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 55 pcs
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP68
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 240 V
- Rated control supply voltage magnet drive AC 60 Hz
- 240 V
- Rated control supply voltage magnet drive DC
- 250 V
- Width sensor
- 30 mm
- With escape release
- No
- Height of sensor
- 60 mm
- Length of sensor
- 16 mm
- Ambient temperature during operating
- -25–70 °C
- Guard locking force
- 42.5 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916046739
- SAP 1000037082
- Code 8736572
Product Documentation
More from Telemecanique
Telemecanique

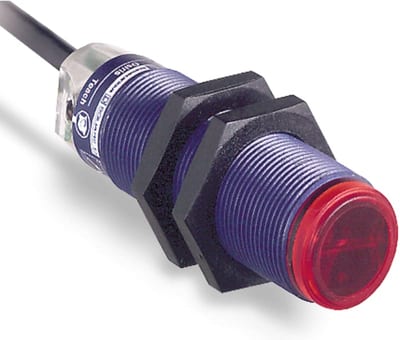

Telemecanique XUB0AKSNL2T Photoelectric Emitter M18, Plastic, 2 m cable
Telemecanique

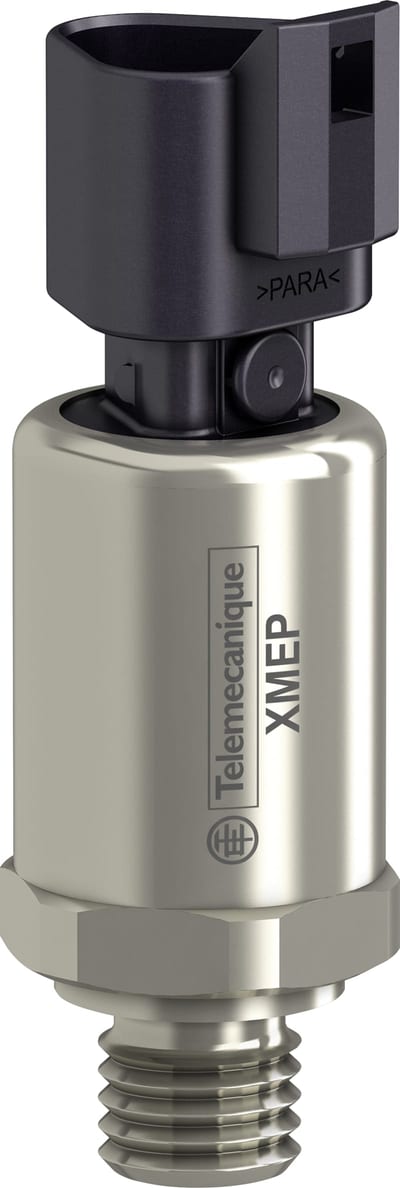

Telemecanique XMEP060BT71F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUSL4E30H076LWC Safety Light Curtain Type 4, Hand Detection (30 mm), 760 mm Height
Telemecanique

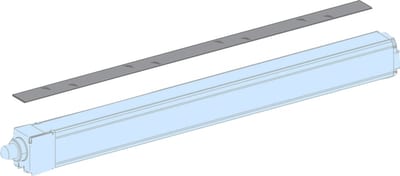

Telemecanique XUSZWPE030 Protective Cover for 300 mm XUS Light Curtains
Telemecanique

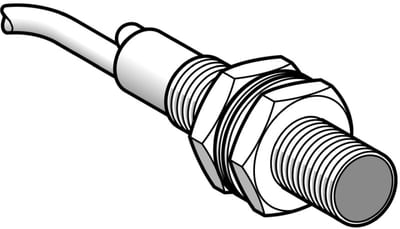

Photocell Ø8mm Direct
XUAH0515
Telemecanique

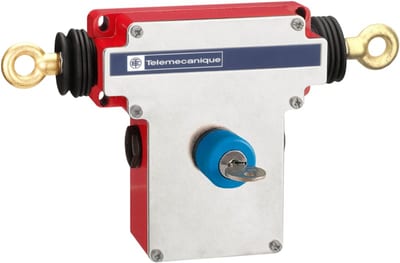

Telemecanique XY2CEDC590 Emergency Stop Rope Pull Switch, 100 m Rope Span
Telemecanique

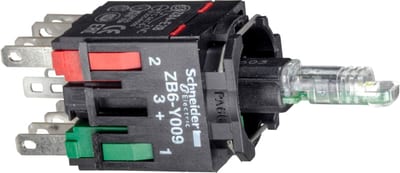

Body WITH BLUE Diode 1NC+1NO
