Body WITH BLUE Diode 1NC+1NO

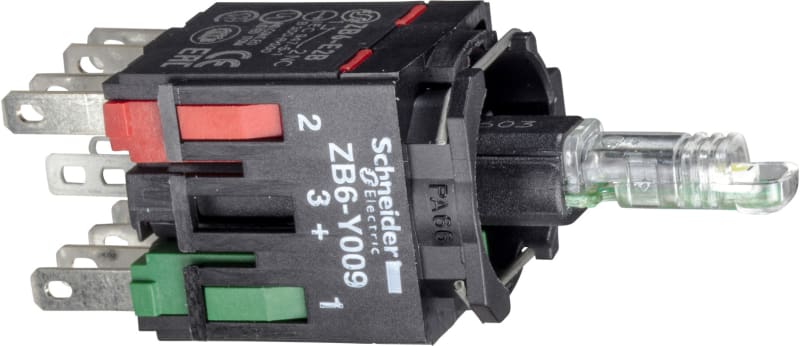

Telemecanique ZB6ZB65B Body with blue diode 1nc+1no.

Manufacturer part number (MPN)

ZB6ZB65B

EAN / GTIN

3389110205817

Sales unit

pcs

Package quantity

100 pcs

Contact configuration

1 NC + 1 NO

Range of product

Harmony XB6

Product or component type

Complete body for illuminated push-button

Device short name

ZB6

Fixing collar material

Plastic

Sale per indivisible quantity

1

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Faston connector, connection size: 2.8 x 0.5 mm

Light source

LED

Bulb base

Integral LED

Light source colour

Blue

[Us] rated supply voltage

12...24 V AC/DC

CAD overall width

24 mm

CAD overall height

18 mm

CAD overall depth

51 mm

Terminals description ISO n°1

(11-12)NC

Product weight

0.009 kg

Contacts usage

Standard

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1 mm (NC changing electrical state); 2 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

1.6 N NO changing electrical state; 2.5 N NC changing electrical state

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300; 1.5 A at 240 V, AC-15, B300; 0.1 A at 250 V, DC-13, R300; 0.22 A at 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current consumption

15 mA

Surge withstand

1 kV direct contact conforming to IEC 61000-4-5; 2 kV in free air conforming to IEC 61000-4-5

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

Standards

IEC 60947-5-5; UL 508; IEC 60947-1; JIS C 4520; JIS C 852; IEC 60947-5-1; CSA C22.2 No 14

Product certifications

CCC; CSA; UL; GOST

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

Class B conforming to IEC 55011

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

Blue

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Flat plug-in connection

Rated voltage Ue at AC 50 Hz

12–24 V

Rated voltage Ue at AC 60 Hz

12–24 V

Rated voltage Ue at DC

12–24 V

Voltage type for actuating

AC/DC

Country of origin

France

HS Code

8536.50
