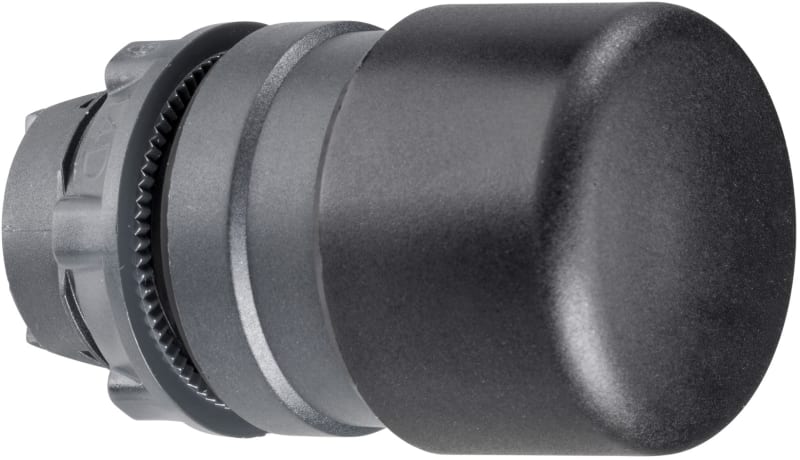

Mushroom Button Black Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AC24 Separate push-button heads in plastic for use with the XB5 series. Supplied as 30, 40 or 60 mm mushroom heads. (Not emergency-stop buttons.)
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AC24
- EAN / GTIN
- 3389110904871
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black mushroom Ø 30 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 52 mm
- Product weight
- 0.027 kg
- Mechanical durability
- 5000000 cycles
- Station name
- XALK 2...5 cut-outs
- Electrical composition code
- C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rea
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110904871
- SAP 1000471481
- Code 8120714
