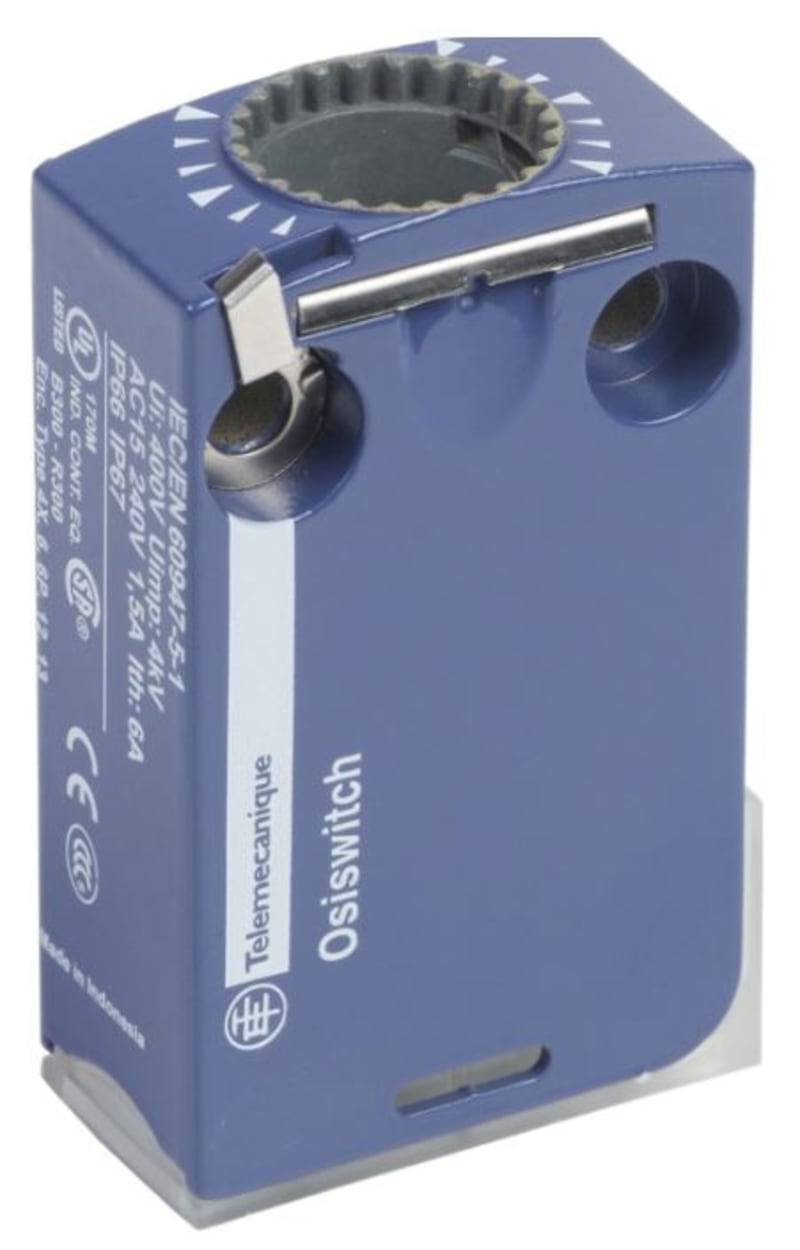

Limit switch body gold NC+NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCMD61 LIMIT SWITCH BODY GOLD NC+NO.
Technical Specifications
- Manufacturer part number (MPN)
- ZCMD61
- EAN / GTIN
- 3666916041970
- HS code
- 8536.90
- Sales unit
- pcs
- Contact configuration
- NC + NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Plug-in connection others
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 52 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916041970
- SAP 1000666595
- Code 8361838
Product Documentation
More from Telemecanique
Telemecanique

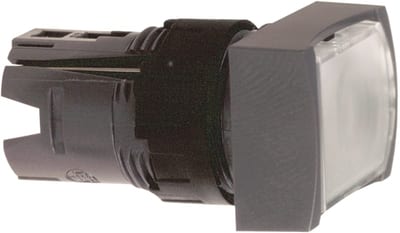

Telemecanique ZB6DF1 Illuminated Pushbutton Head, White, for LED Module, Harmony XB6
Telemecanique

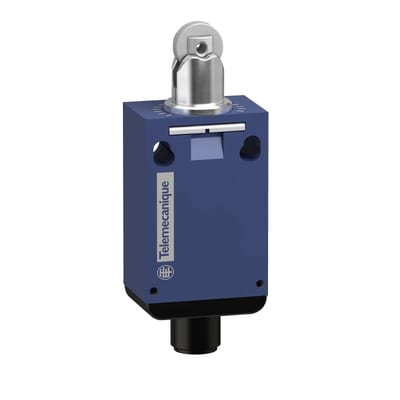

Limit switch with M12 connector (XCMV2502M12)
Telemecanique

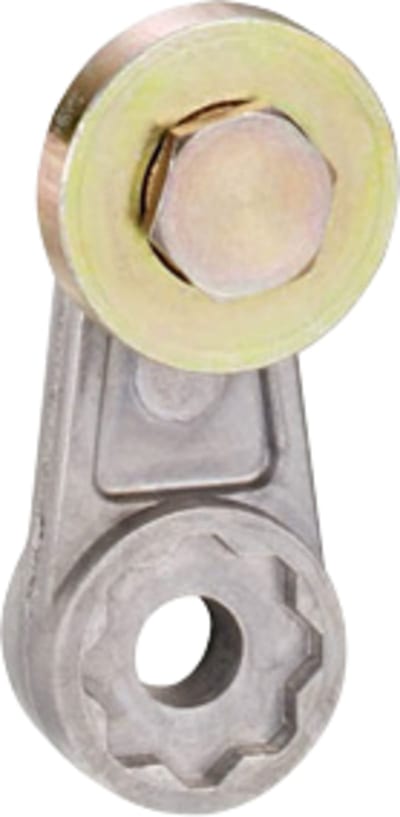

Telemecanique ZCKY13TK Actuator Lever for ZCK Limit Switches
Telemecanique

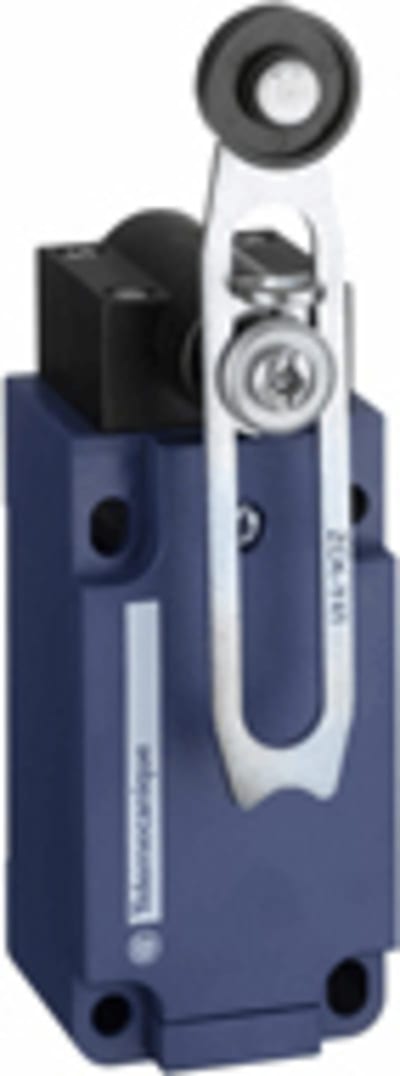

Telemecanique XCKS541 Limit Switch, Lever with Plastic Roller, NO/NC, Plastic Body, PG13.5 cable entry
