Telemecanique XUSL4E30H016N Safety Light Curtain Type 4, Hand Detection (30 mm), 160 mm Height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E30H016N Type 4 safety light curtain, hand detection with 30 mm resolution, protected height 160 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E30H016N
- EAN / GTIN
- 3666916028230
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 213 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 4 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 17 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 160 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028230
- SAP 1000652036
- Code 8458364
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS518BSDAM12 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique OsiSense XS618B4MBU20 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, 2-Wire AC/DC, NC
Telemecanique
Telemecanique ZCKM9H29 Limit Switch Body, Metal, NC+NC, Snap-action, M20 cable entry
Telemecanique

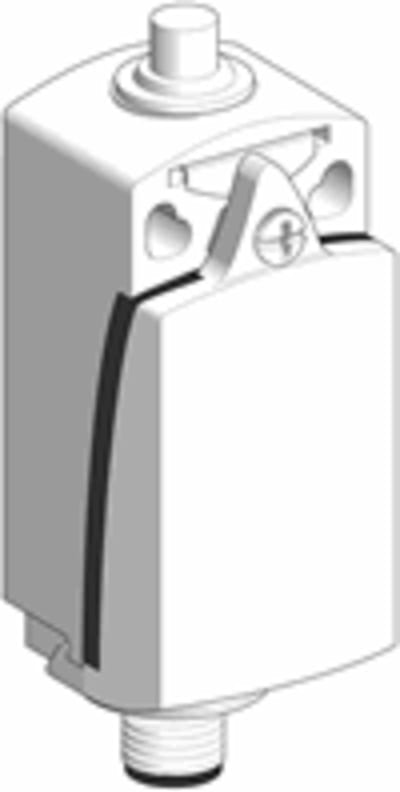

Telemecanique XCKD2110M12 Limit Switch, Plunger, Metal Body, M12 connector
Telemecanique

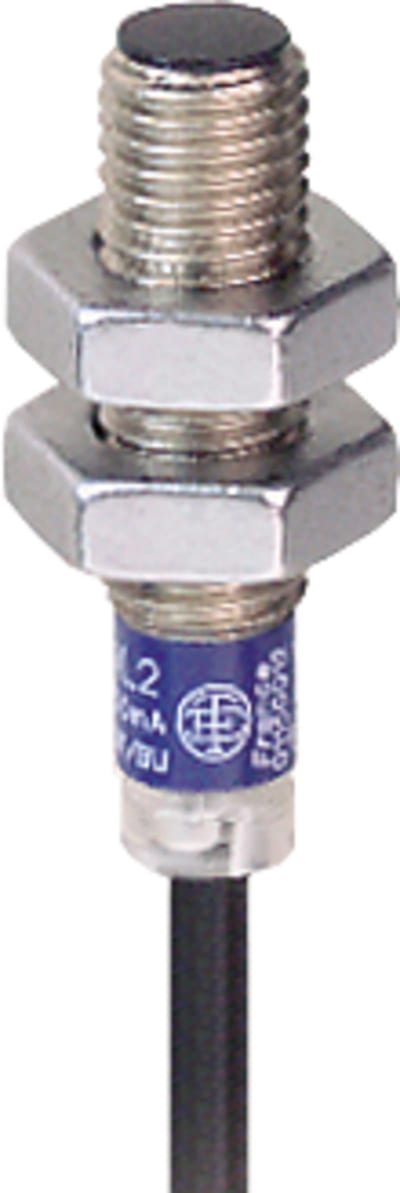

Telemecanique XS108B3PAL2 Inductive Proximity Sensor Ø8 mm, Threaded, PNP NO, 2 m cable
Telemecanique

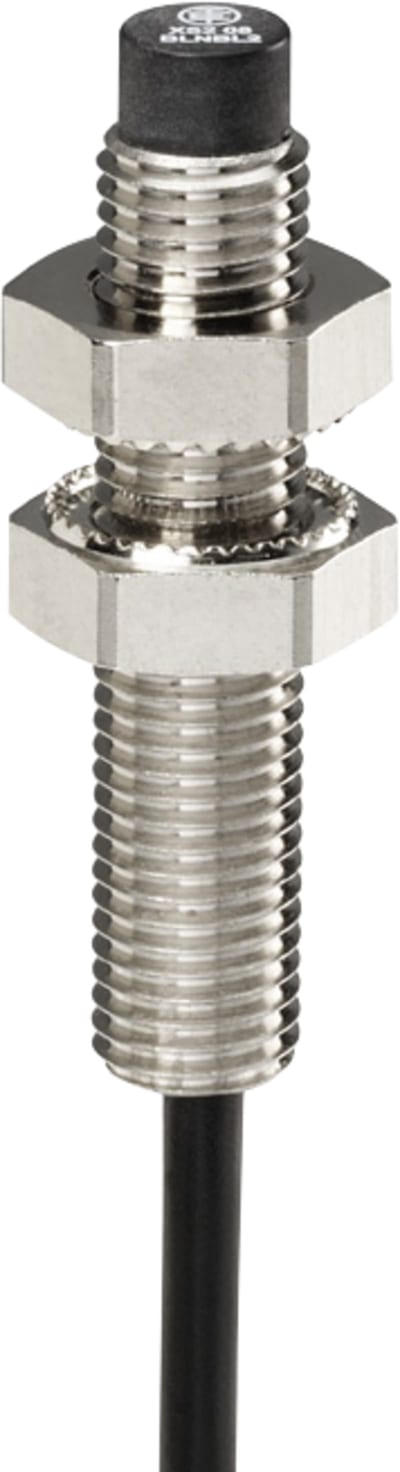

Telemecanique XS108B3NBM8 Inductive Proximity Sensor Ø8 mm, Threaded, NPN NC, M8 connector
Telemecanique

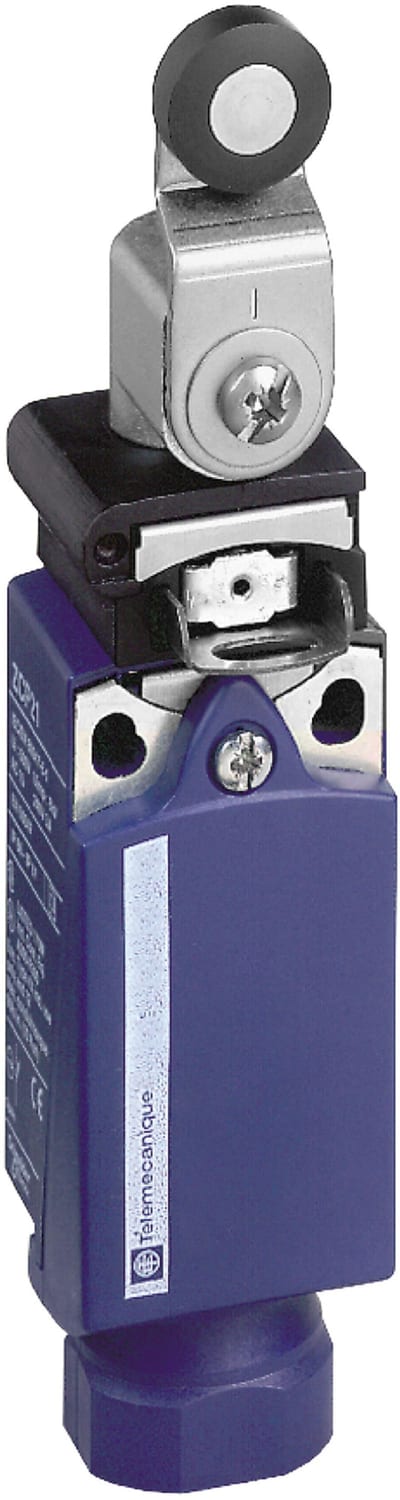

Telemecanique XCPR2518G13 Limit Switch, Plastic Body, PG13 entry
Telemecanique

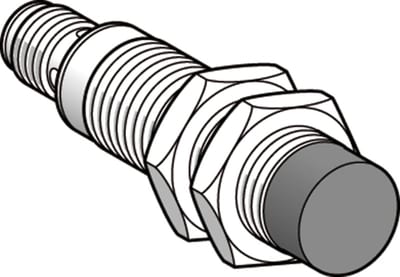

Telemecanique OsiSense XS618B4MAU20 Inductive Proximity Sensor — M18 barrel, Sn 12 mm, 2-Wire AC/DC, NO
