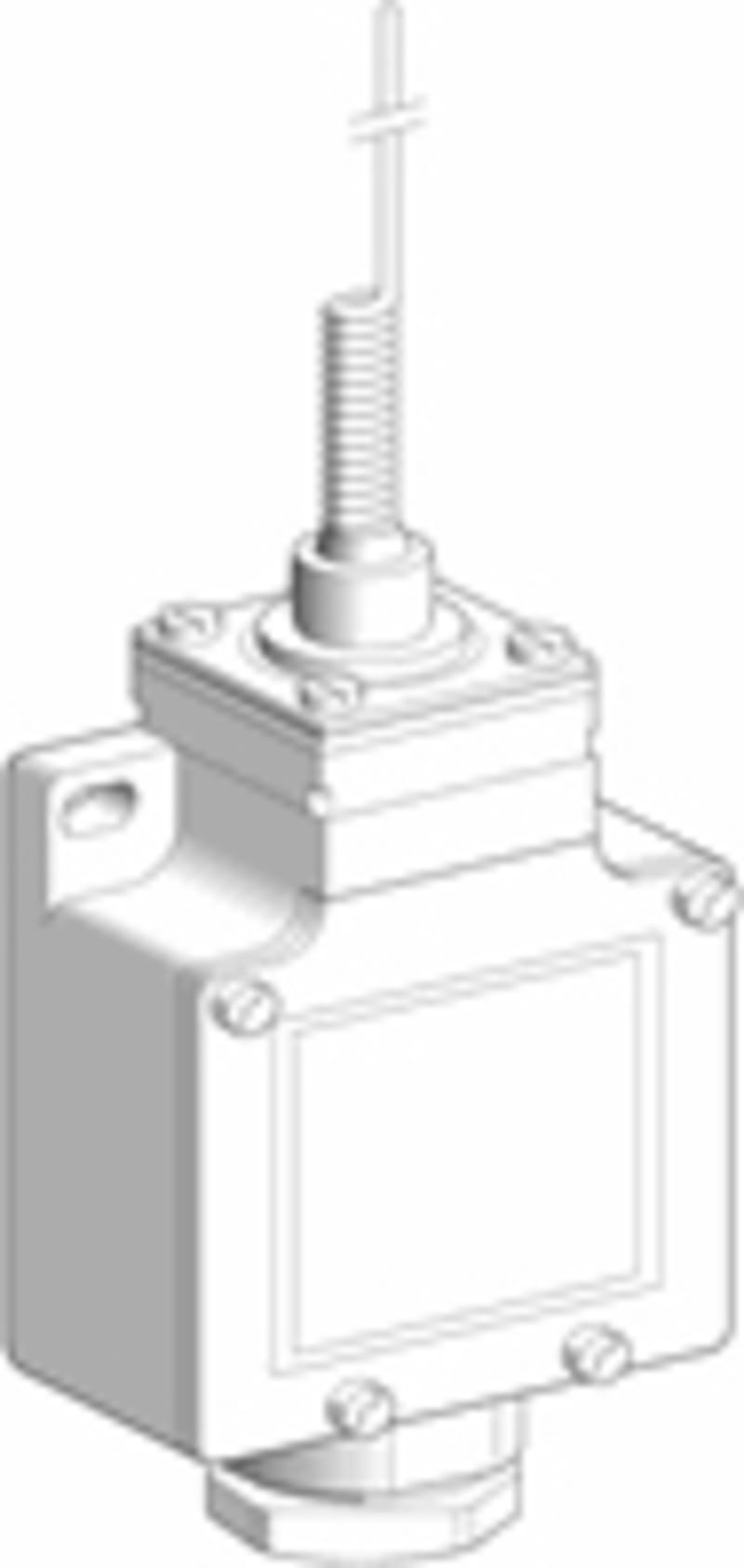

Telemecanique XCKL106 Limit Switch
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique XCKL106 Limit Switch is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Package quantity: 8 pcs; Switching function: Quick-break switch; Housing material: Metal; Suitable for safety functions: No.
Technical Specifications
- Manufacturer part number (MPN)
- XCKL106
- EAN / GTIN
- 3666916057704
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- No
- Type of control element
- Spring-rod
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 52 mm
- Height of sensor
- 72 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916057704
- SAP 1000340384
- Code 8988962
Product Documentation
